Place of Origin:
China
Brand Name:
Guide Visual
Certification:
CCC CE FCC
Model Number:
GS
video
video
Meta Description:
GS Series P4.81 outdoor rental LED display delivers cost-efficient large-area coverage with 7680Hz refresh rate, IP65 protection, N+1 power redundancy, and lightweight rental cabinets for concerts, stadiums, festivals, and outdoor events.
👉 Designed for professional LED rental companies and event production suppliers who need fast deployment, stable operation, and maximum coverage efficiency.
For large outdoor events, the challenge is not only image quality.
Professional rental companies need LED systems that can:
The Guide Visual GS Series P4.81 Outdoor Rental LED Display is engineered specifically for these environments.
With a 4.807mm pixel pitch, high brightness output, lightweight cabinet structure, and professional rental architecture, it delivers the ideal balance between:
Coverage + Reliability + Investment Efficiency

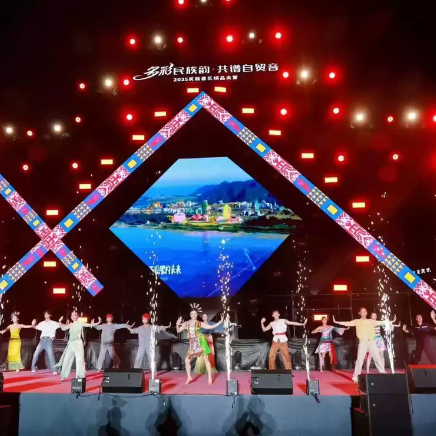

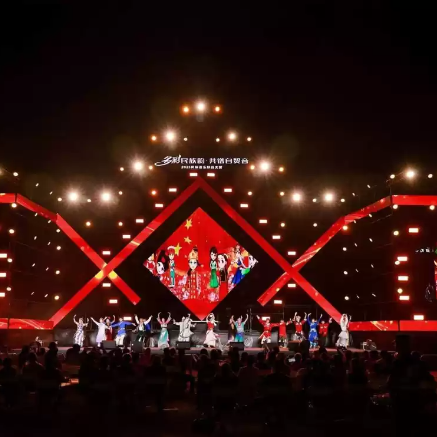

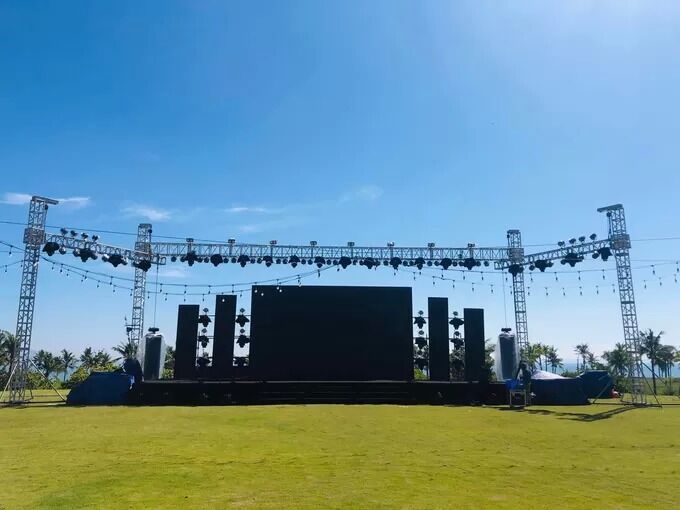

GS P4.81 is widely used in:
🎤 Outdoor concerts and music festivals
🏟 Stadium perimeter advertising
🌍 International sporting events
🎪 Large public ceremonies
🚚 Touring stage productions
📺 Mobile advertising LED systems
🎬 Outdoor cinema screens
📌 Recommended viewing distance:
20–50 meters
In large outdoor environments, audiences are usually far away from the LED screen.
At long viewing distances, ultra-fine pixel pitch does not always provide additional visible value.
P4.81 provides:
For rental companies:
✔ Easier inventory expansion
✔ Faster project deployment
✔ Better equipment utilization rate
👉 P4.81 is the practical choice when coverage matters more than extreme close-view resolution.
Large outdoor events require stable operation under unpredictable environments.
The GS P4.81 integrates professional outdoor protection technology.
Brightness:
4500–5000 nits
Advantages:
The cabinet structure provides:
Suitable for:
Working Temperature:
-30°C ~ +40°C
Working Humidity:
10%–90% RH non-condensing
Ensures stable performance across different climates.
Professional rental LED systems must survive hundreds of installation cycles.
GS Series is designed around long-term operational reliability.
The GS Series adopts:
System advantages:
Benefits:
✔ Prevents unexpected black screen
✔ Improves system stability
✔ Extends power component lifespan
👉 Ensures continuous operation during critical live events.
For professional stage applications, signal stability is essential.
GS Series supports:
Benefits:
✔ Reduces signal interruption risk
✔ Maintains stable video playback
✔ Suitable for large-scale LED walls

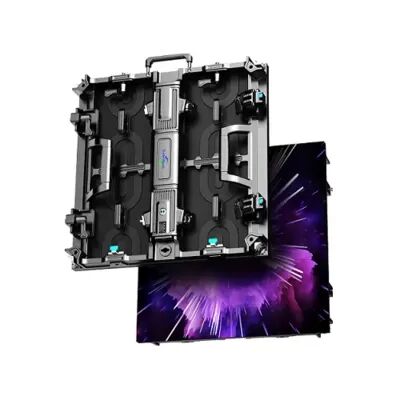

Unlike traditional cable-based LED structures:
GS Series uses:
Hardwired internal connection design
Advantages:
Designed for frequent rental turnover.
Built for real rental environments:
The GS Series uses professional LED control technology.
Supported:
Combined with:
Advantages:
✔ High grayscale performance
✔ Stable brightness control
✔ Smooth video playback
✔ Broadcast-friendly camera performance
👉 Compatible with global professional AV production systems.
| Parameter | Specification |
|---|---|
| Pixel Pitch | 4.807 mm |
| Pixel Density | 43,264 dots/m² |
| LED Type | SMD1921 / SMD2525 |
| Brightness | 4500–5000 nits |
| Refresh Rate | 7680 Hz |
| Cabinet Size | 500*500mm / 500*1000mm |
| Cabinet Weight | 6.8kg / 11.8kg |
| Module Size | 250*250mm |
| Module Resolution | 52*52 |
| Viewing Angle | 160° / 160° |
| Driving Method | 1/13 Scan |
| Protection Level | IP65 Front & Rear |
| Operating Temperature | -30°C ~ +40°C |
| Installation Type | Hanging / Stacking / Curved / Ground Support |

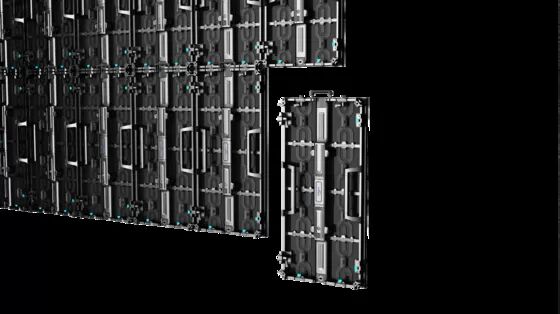

GS Series uses a unified modular cabinet platform.
Available cabinet sizes:
Supporting:
For rental companies, this means:
✔ One cabinet system for multiple projects
✔ Lower spare inventory requirements
✔ Faster project preparation
| Model | Application | Viewing Distance | Recommended Project |
|---|---|---|---|
| P2.97 | Premium outdoor advertising | 2–20m | Luxury retail / close viewing |
| P3.91 | Medium outdoor events | 5–30m | Stage rental |
| P4.81 | Large-scale outdoor coverage | 20–50m | Stadium / festival |
GS P4.81 is designed for:
Need:
Need:
Need:
Need:
P4.81 provides better cost efficiency for large viewing distances. For stadiums, festivals, and large outdoor spaces, the visual difference is minimal while the investment advantage is significant.
Yes. The lightweight cabinet, quick-lock system, hard connection structure, and anti-collision design are optimized for repeated rental operations.
Yes. IP65 protection, high brightness output, and wide temperature operation ensure reliable outdoor performance.
GS Series supports NovaStar Platform architecture, including A5S Plus and AX Series solutions.
Looking for a reliable outdoor LED display system for concerts, stadiums, or rental projects?
Guide Visual provides:
✔ Professional LED rental solutions
✔ Project configuration support
✔ Factory-direct pricing
✔ OEM cooperation
✔ Global logistics service
