GS Series P3.91 Outdoor Rental LED Screen 7680Hz IP65 Video Wall Display for Live Stage Events

GS Series P3.91 Rental LED Screen for Touring Stages and Live Video Walls

Every rental wall lives or dies by how it behaves under real site conditions: rain, dust, tight build windows and cameras rolling. The GS Series P3.91 is built around that reality and ships in both indoor and outdoor configurations on the same 250×250mm module platform. A 3840-7680Hz refresh pipeline, a die-cast aluminum hybrid-service cabinet, and dual power and signal paths are chosen so the image stays on screen when a single cable is pulled or a power unit trips.

Why refresh rate decides the shot

At a 3.91mm pixel pitch the panel holds a crisp image at close viewing distance, while the 3840-7680Hz refresh rate pushes scan lines, moire and flicker out of the range of broadcast and mirrorless cameras. For IMAG close-ups or live-stream capture the wall stays clean on screen instead of banding on the feed. A 14-16 bit grayscale pipeline keeps gradients and low-light scenes smooth, so dark stage footage does not step or poster.

Engineered around the details that keep a wall running

A touring screen earns its keep in the details, and the P3.91 puts them front and centre. Cabinets lock through a hard connection structure into one rigid, stable grid, while a hard-rubber edge design absorbs the knocks of load-in and de-rig so a collision never turns into a broken panel. Power and signal run on a dual-backup loop: if one line is pulled or a power unit trips, the wall carries on with no black screen. The die-cast aluminum case stays light enough for one person to carry and stack quickly, and rear maintenance lets a technician swap a module without dismantling the section around it.

Over that structure sits a 7680Hz refresh pipeline for flicker-free on-camera images, and the whole cabinet is built to keep running in extreme weather. It is the difference between a screen that merely lights up and a screen that survives the whole tour.

Two paths for every signal and every watt

Redundancy here is a routing decision made at the cabinet, not a brochure line. Each cabinet carries dual signal inputs plus cross-cabinet power sharing: if a data line is pulled or a power unit trips mid-show, the parallel path takes over with no visible interruption.

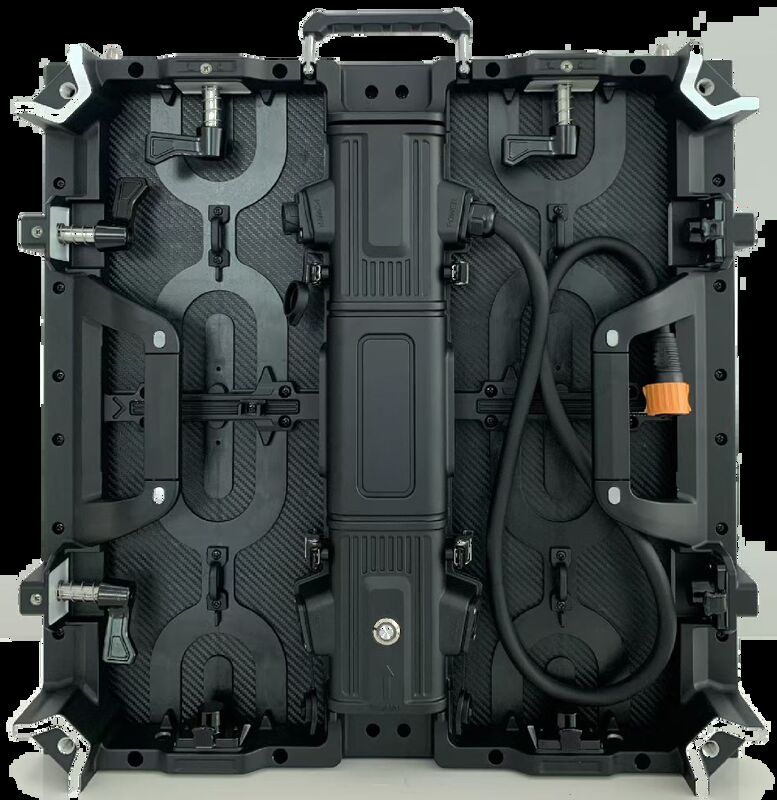

Cabinet structure and build speed

The body is a single die-cast aluminum frame. Machined edges hold cabinet-to-cabinet gaps tight, so a long wall tiles without visible seams. It is built around 250×250mm modules and offered in 500×500×75mm and 500×1000×75mm cabinets (7.2 / 12.2 kg indoor, 7.5 / 12.5 kg outdoor), with a quick-lock latch and a -10° to +15° curvature range for immersive stage designs.

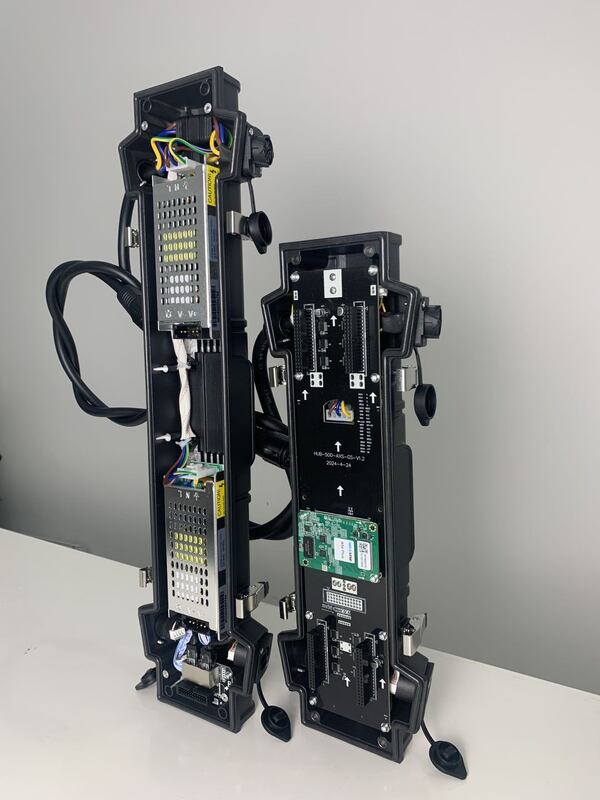

Control and serviceability

Modules and power/data units are serviceable from both front and rear, so a panel can be swapped on site without dismantling the surrounding section — the difference between a five-minute fix and a de-rig. The screen runs on mainstream rental control and is rated for -10°C to +45°C; the outdoor cabinet handles up to 80% RH.

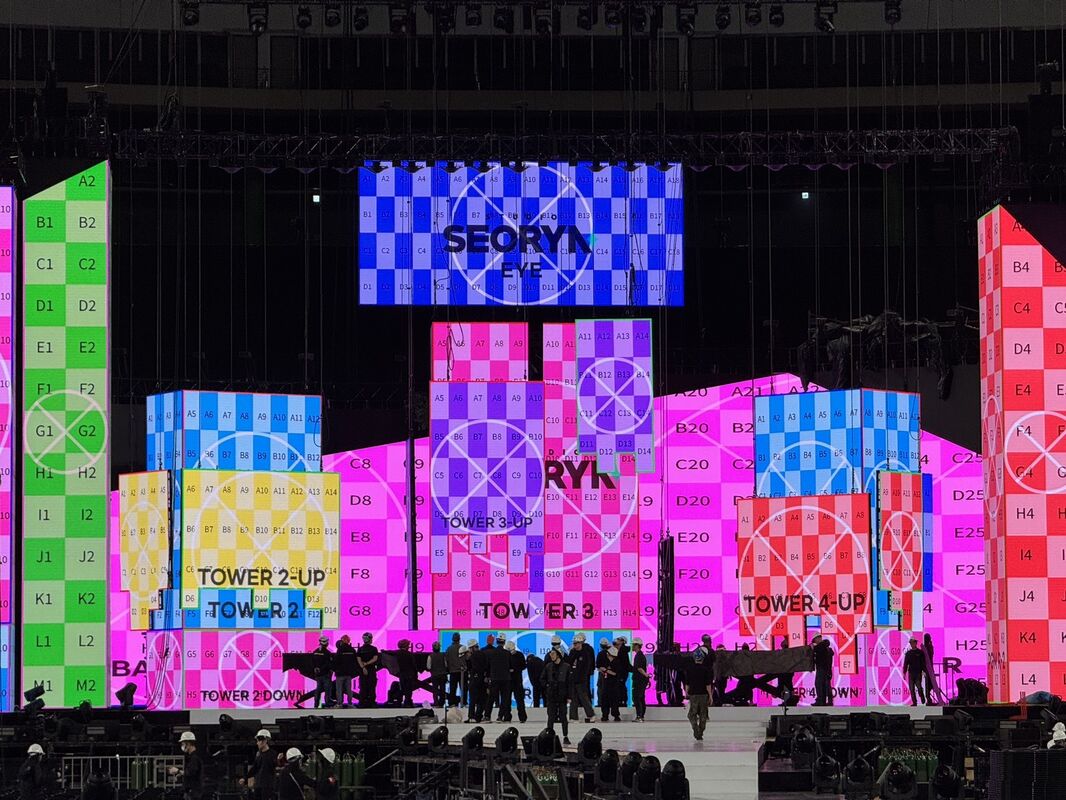

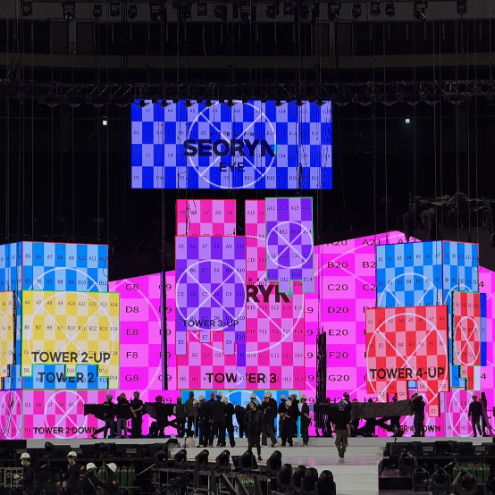

Where the P3.91 wall performs

• Concert and festival main stages — large uniform walls that survive a full touring cycle.
• Indoor studios and broadcast — the SMD2121 indoor version for fine-pitch on-camera work.
• Outdoor live events and broadcast — camera-safe, flicker-free surfaces for IMAG and streaming.
• Sports, esports and brand activations — fast-build screens readable under venue or daylight conditions.

Specifications — P3.91 Indoor & Outdoor
