Place of Origin:
China
Brand Name:
Guide
Certification:
CE FCC CCC
Model Number:
GS

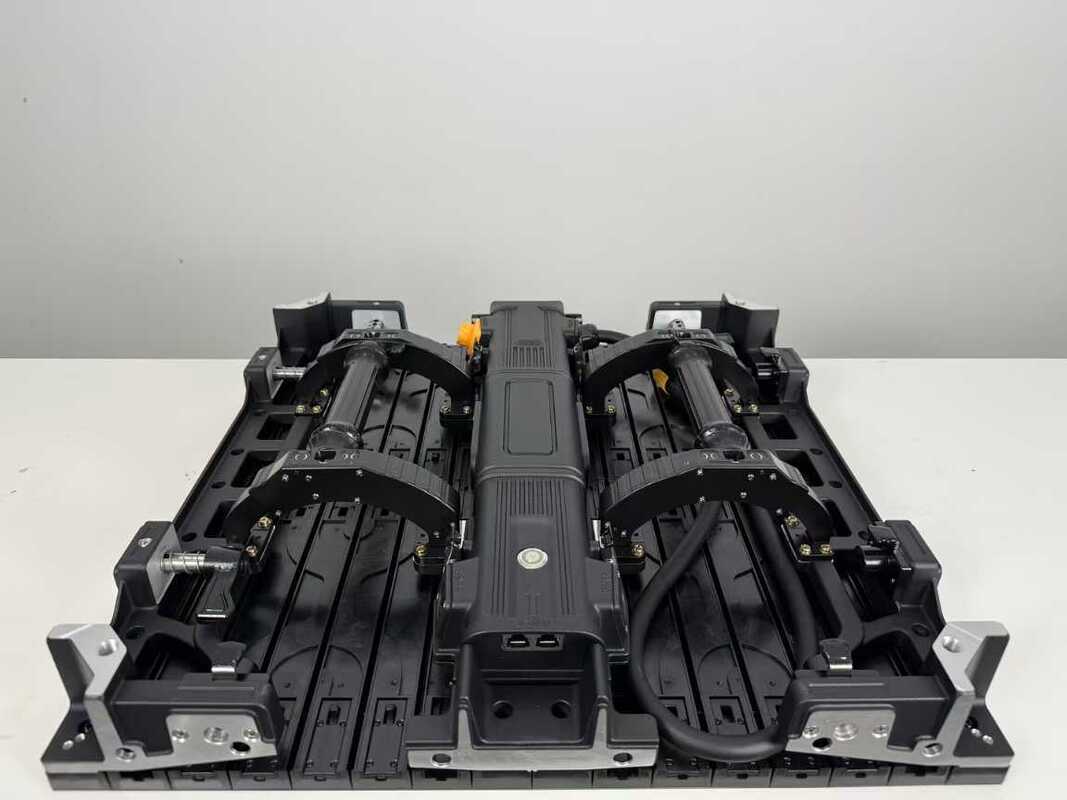

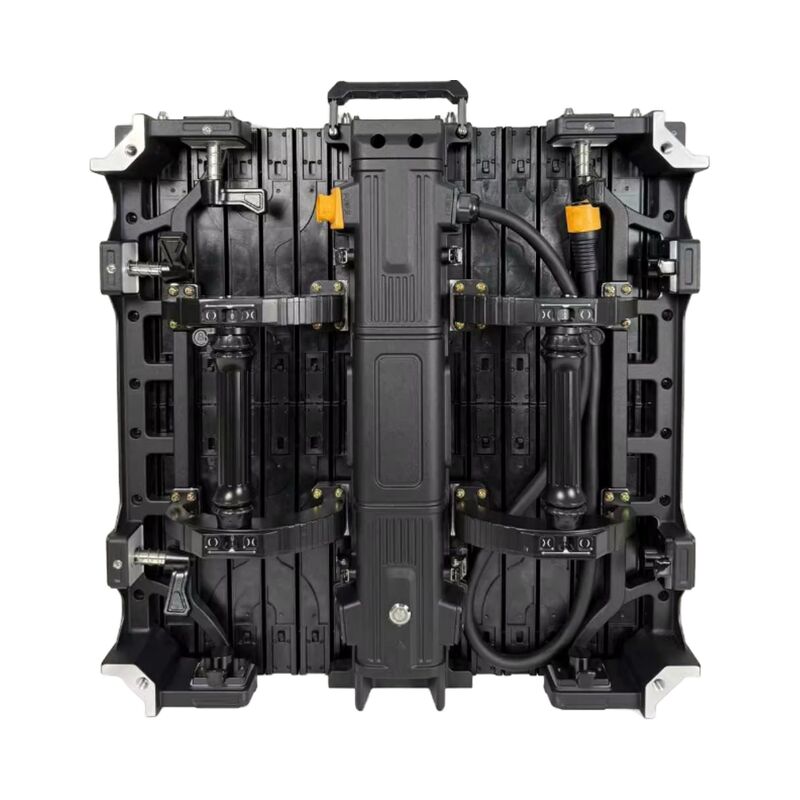

Guide Led stage video wall are designed with a focus on both functionality and aesthetics. Featuring an ergonomic and simple aesthetic design, they seamlessly blend into any environment. The power equalization design ensures consistent performance, while the plug-and-play power box design allows for easy setup and maintenance. Guide modular upgrade capability enables users to enhance their display as needed, and the slim design ensures a sleek profile without compromising on quality. Perfect for all events, concerts, and installations, our LED screens deliver stunning visuals and reliability.

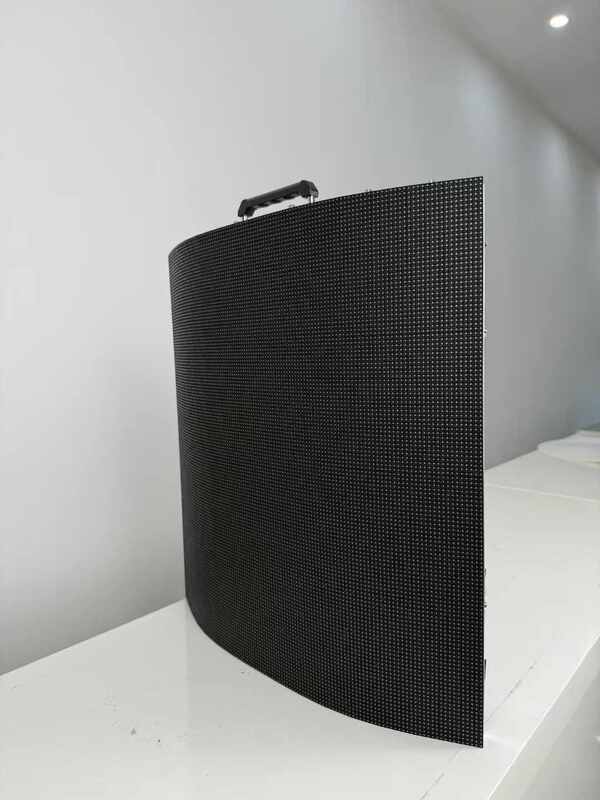

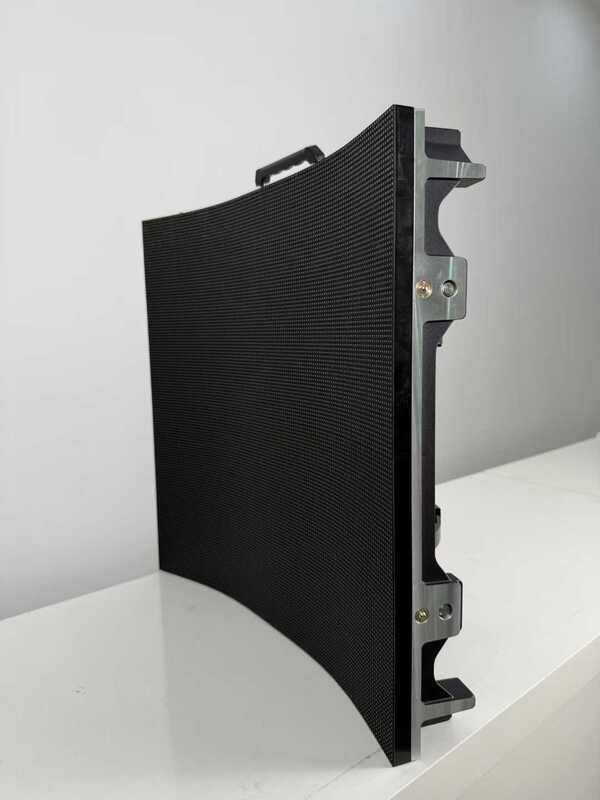

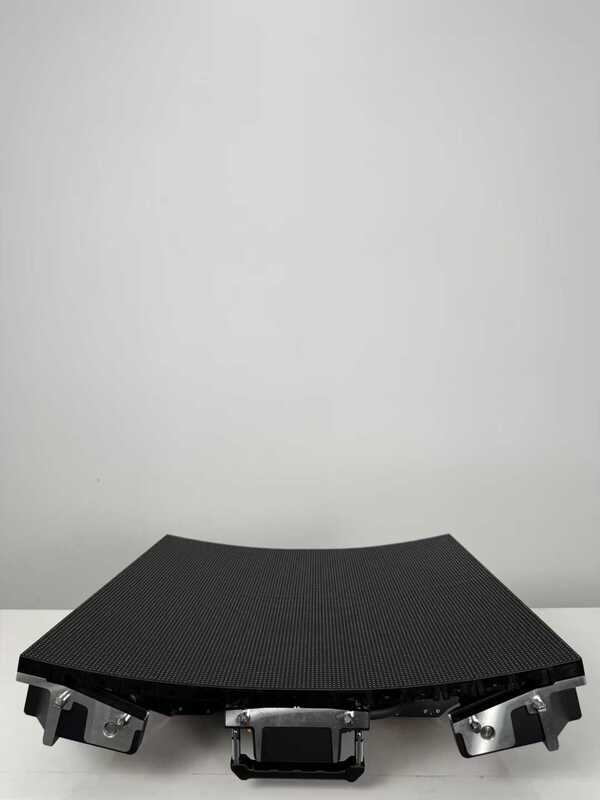

With its innovative curved cabinet design, this display can effortlessly create various curved screens, Featuring a single-sided curvature of 25 degrees and a double-sided curvature of ±50 degrees, it offers unparalleled flexibility for creative installations. Whether for concerts, theaters, or large-scale events, this LED display delivers exceptional visual performance and seamless integration, making it the perfect choice for any stage application. Elevate your stage design with our advanced LED technology, combining reliability, versatility, and breathtaking visuals.
![]()

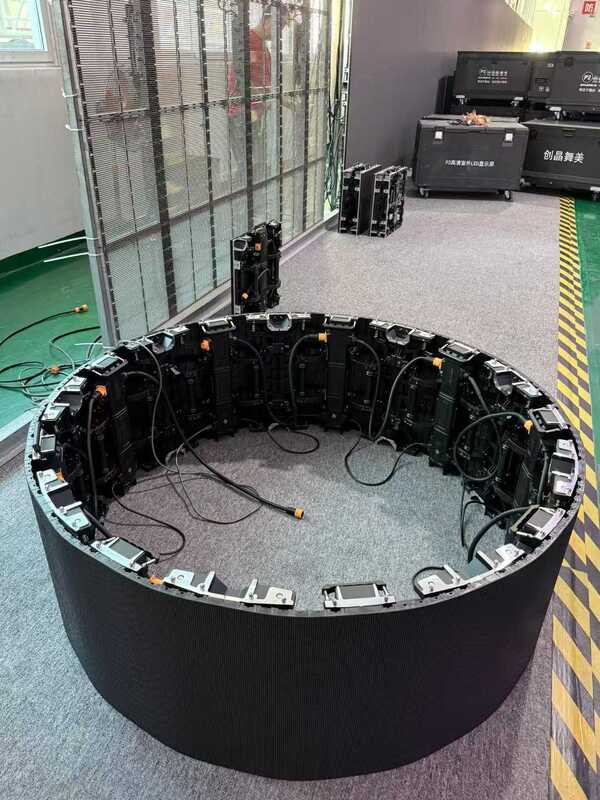

This innovative LED display not only excels in creating seamless curved screens but also allows for the construction of stunning cylindrical displays, adding a dynamic and immersive dimension to your stage. Perfect for concerts, theaters, and events, its versatile design ensures your stage stands out with breathtaking visuals and unmatched creativity. Elevate your performance space with this cutting-edge technology, designed to captivate and inspire.
![]()
The stage rental display are packed in specially designed flight cases, ensuring maximum protection during transportation. This robust packaging minimizes the risk of collisions and damage, allowing for safe and secure delivery to your event location, so you can focus on delivering an outstanding performance.

| Model | P2.604 | P2.976 | P3.91 | P4.81 |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Pixel Density (dots/m) | 147,456 | 112,896 | 65,536 | 43,264 |
| Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Module Resolution (dots) | 96*96 | 84*84 | 64*64 | 52*52 |
| Cabinet Size (mm) | 500*500*75 | 500*500*75 | 500*500*75 | 500*500*75 |
| 500*1000*75 | 500*1000*75 | 500*1000*75 | 500*1000*75 | |
| Cabinet Weight (KGs) | 6.8/11.8 | 6.8/11.8 | 6.8/11.8 | 6.8/11.8 |
| Refresh Rate (HZ) | 3840 | 7680 | 7680 | 7680 |
| Brightness (CD/m) | 800-1000 | 800-1000 | 800-1000 | 800-1000 |
| Average Power (W/m) | 300 | 300 | 300 | 300 |
| Driving Method | l/16s | l/12s | l/16s | l/13s |
| Viewing Angles (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| IP rate | IP42 | IP42 | IP42 | IP42 |
| Working Humidity (RH) | 10%-60% | |||
| Working Temperature (°C) | -40°C ~ +40°C | |||
| Sitting/Floor/Lifting/Arc/Special-shaped/Right Angle | ||||
