🚏 The New Standard for Outdoor Digital Signage
Walk through any major airport, train station, or shopping district today, and you’ll see outdoor LED screens that are either too dim (washed out in sunlight) or too pixelated (can’t read the text from 3 meters away). The Guide Visual GS Series P2.97 outdoor solves both problems. It offers the brightness of a billboard and the resolution of an indoor display – making it the ideal choice for outdoor digital signage that actually gets noticed.
Why 2.97mm for signage?
Traditional outdoor billboards (P6 and above) work for cars driving by at 60km/h. But for pedestrians – or for advertising on bus shelters, storefronts, and transit platforms – people stand close. They need to read small text, recognize faces, and see product details. The 2.976mm pixel pitch provides a crisp image at distances as close as 2 meters, while the 5000 nits brightness (per catalog) guarantees visibility even at noon.
Built for 24/7 operation
Outdoor signage often runs from dawn to midnight, every day of the week. That demands components that won’t overheat or wear out. Our GS P2.97 outdoor uses:
Wide‑temperature components – tested from -30°C to +40°C.
IP65 sealing – dust and water jets are no threat.

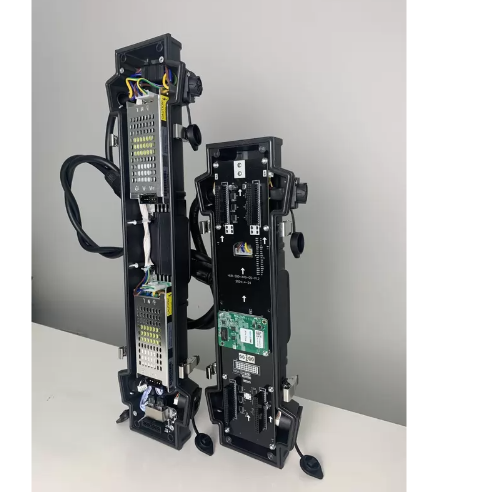

Dual power backup – if one power supply fails, the other keeps the screen running. No midnight blackouts.
Dual signal backup – four RJ45 ports for signal redundancy, so a single cable fault won’t take down your ad campaign.
Clarity that sells
7680Hz refresh rate – video ads play smoothly, without flicker.
160°/160° viewing angle – people walking from the side still see accurate colors.
High contrast – text is sharp, backgrounds are rich.
Rental or permanent? Both.

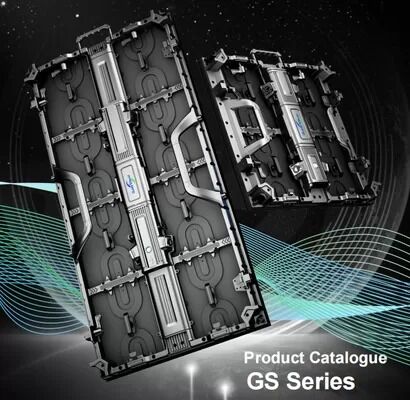

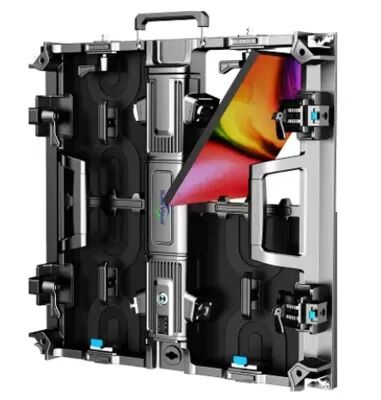

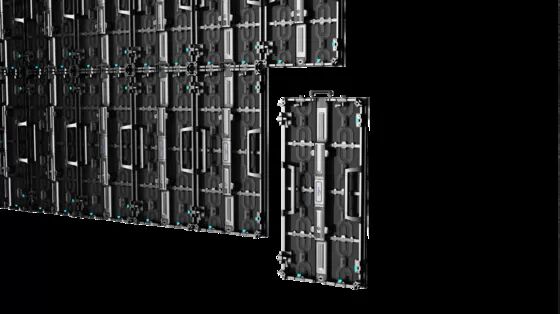

While the GS P2.97 outdoor is perfect for rental projects (pop‑up stores, seasonal campaigns, event signage), it’s also durable enough for permanent installation. The die‑cast aluminum cabinet won’t warp over time, and the anti‑collision module surface reduces maintenance needs. Quick lock system makes installation fast – whether you’re setting up for a 3‑day festival or bolting it to a wall for 5 years.
Real‑world applications
Airport gate signage – display flight info, ads, and wayfinding with professional clarity.
Shopping mall exterior screens – attract foot traffic with high‑resolution video walls.
Bus stop digital panels – readable under sunlight, weather‑proof for rain and snow.
Outdoor event directional signage – guide attendees with clear, readable text.
Corporate campus entrance screens – welcome visitors with a premium look.
From the spec sheet
Pixel pitch: 2.976mm (industry‑standard P2.97)
Pixel density: 112,896 dots/m²
LED type: SMD1415 (designed for outdoor with good brightness and viewing angle)
Cabinet size: 500×500mm and 500×1000mm
Cabinet weight: 8.6kg / 11.8kg
Refresh rate: 7680Hz
IP rating: IP65
Why choose Guide Visual for your signage project?
We don’t just sell screens. We help you calculate the right pixel pitch based on viewing distance, provide DDP shipping to many countries, and offer remote technical support for installation. Our screens are certified CE, RoHS, FCC, and UL – ready for any market.
Ready to upgrade your outdoor digital signage? Contact Guide Visual for a quote. We’ll send you a detailed proposal within 24 hours.
