Place of Origin:
China
Brand Name:
Guide Visual
Certification:
CCC CE FCC
Model Number:
G10
video
video
One Platform, Endless Possibilities – The G10 Series Rental LED Display Family
Why stock multiple incompatible product lines when one series can cover all your rental needs? The Guide Visual G10 series offers a complete range of pixel pitches from P2.6 to P4.81, indoor and outdoor, all sharing the same 500*500mm and 500*1000mm cabinets. Mix, match, scale, and upgrade without changing your inventory.
Available Models at a Glance
| Model | Pitch | Best For | Brightness | IP |
|---|---|---|---|---|
| P2.6 | 2.6mm | Close viewing, luxury events | 900nit | IP42 |
| P2.9 | 2.9mm | Conference, church | 900nit | IP42 |
| P2.97 | 2.97mm | Exhibition, rental standard | 900‑5000nit | IP42/IP65 |
| P2.976 | 2.976mm | Fine pitch outdoor signage | 5000nit | IP65 |
| P3.91 | 3.91mm | Concert, festival (most popular) | 900‑5000nit | IP42/IP65 |
| P4.81 | 4.81mm | Large venue, budget option | 900‑5000nit | IP65 |

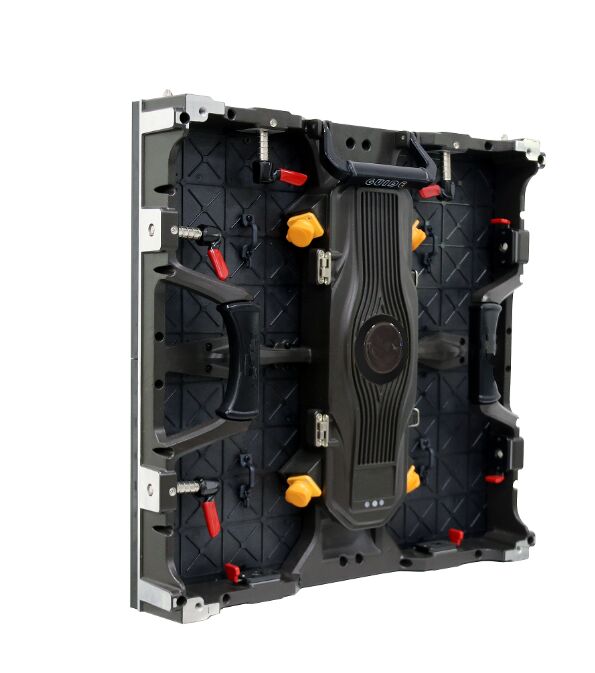

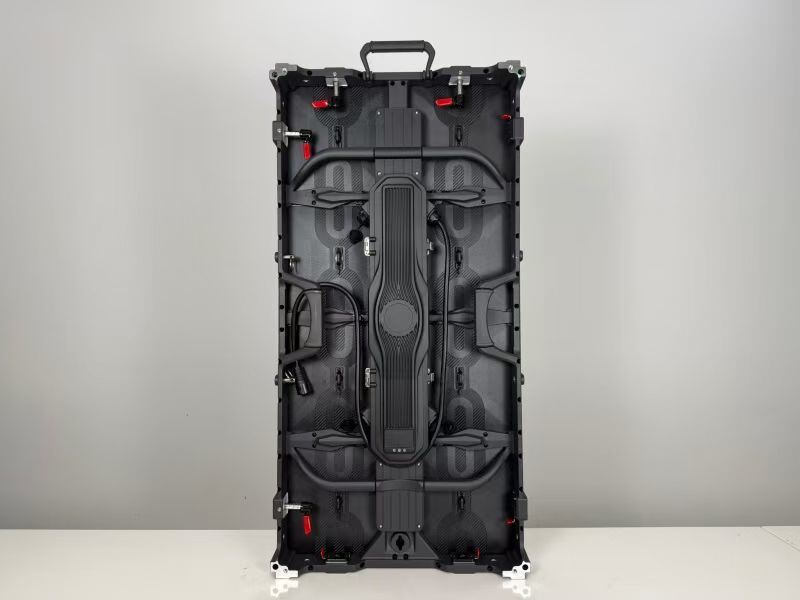

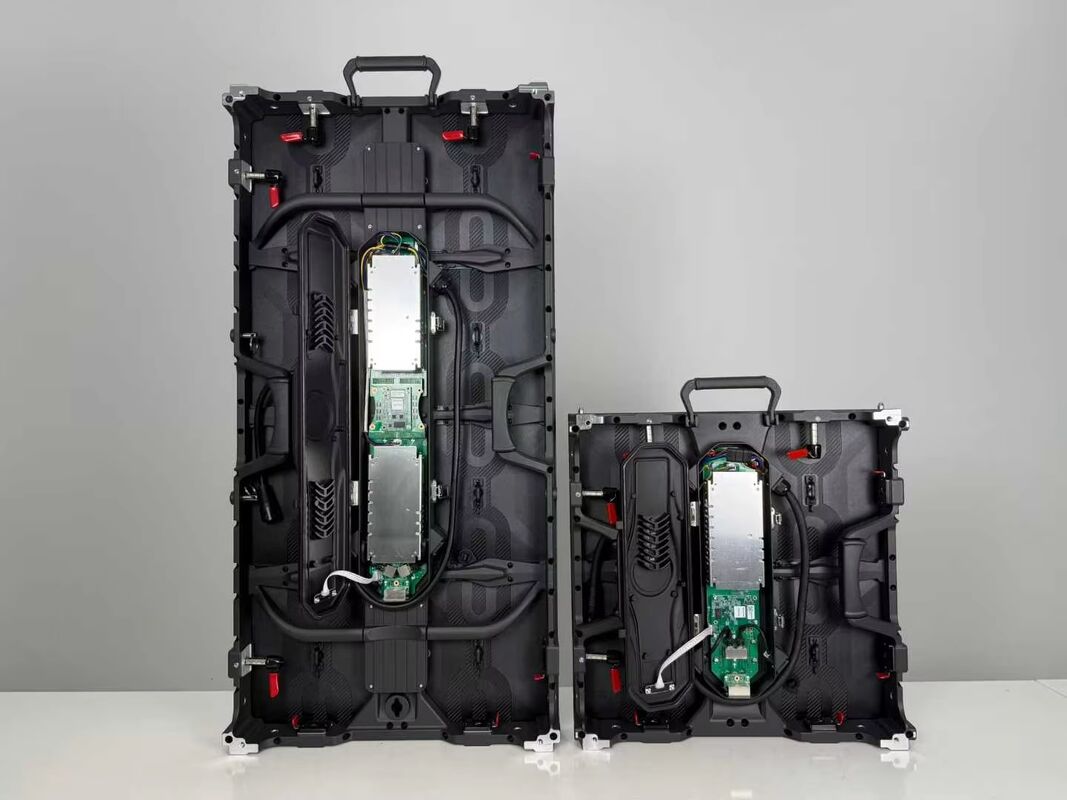

The Modular Advantage – One Cabinet Fits All
Hardware Compatibility
Same 500*500mm / 500*1000mm cabinet frame for every model
Same quick lock system across the series
Same power and signal connectors
Same rigging bars and flight cases
What This Means for You
Lower inventory – Stock fewer cabinet frames, swap modules for different pitches
Faster upgrades – Move from P3.91 to P2.9 by changing modules, not entire screens
Flexible creative designs – Mix indoor and outdoor modules on the same stage
Simplified spare parts – One type of power supply, receiver card, and cable for all models
Common Features Across the Entire G10 Series
✅ 7680Hz Refresh Rate – Industry‑leading, flicker‑free for camera
✅ Dual Power Backup – Load‑sharing design, no black screen
✅ Dual Signal Backup – 4 RJ45 ports per cabinet
✅ Hard Internal Connection – No ribbon cables
✅ Anti‑Collision Module Surface – Protects LEDs during handling
✅ Quick Lock System – Tool‑free assembly
✅ Private‑Mold Die‑Cast Cabinet – Stronger than public mold
✅ Front & Rear Maintenance – Easy service access
✅ CE, RoHS, FCC Certified
Which G10 Model is Right for Your Customer?
| Viewing Distance | Recommended Pitch |
|---|---|
| 2‑5 meters | P2.6 or P2.9 |
| 3‑8 meters | P2.97 or P2.976 |
| 5‑15 meters | P3.91 |
| 10‑30 meters | P4.81 |

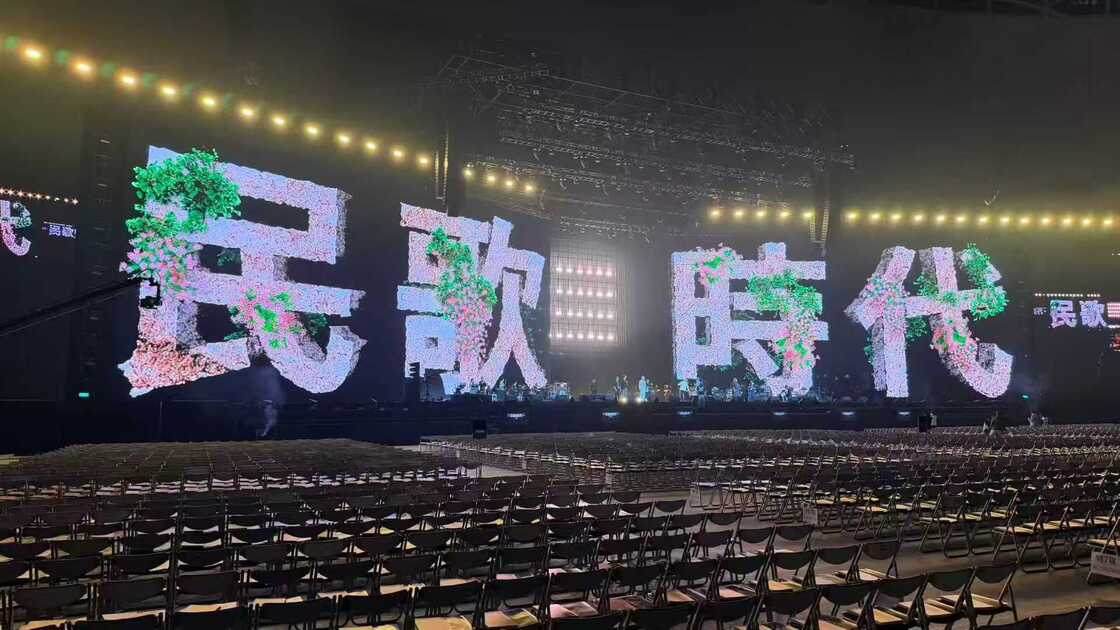

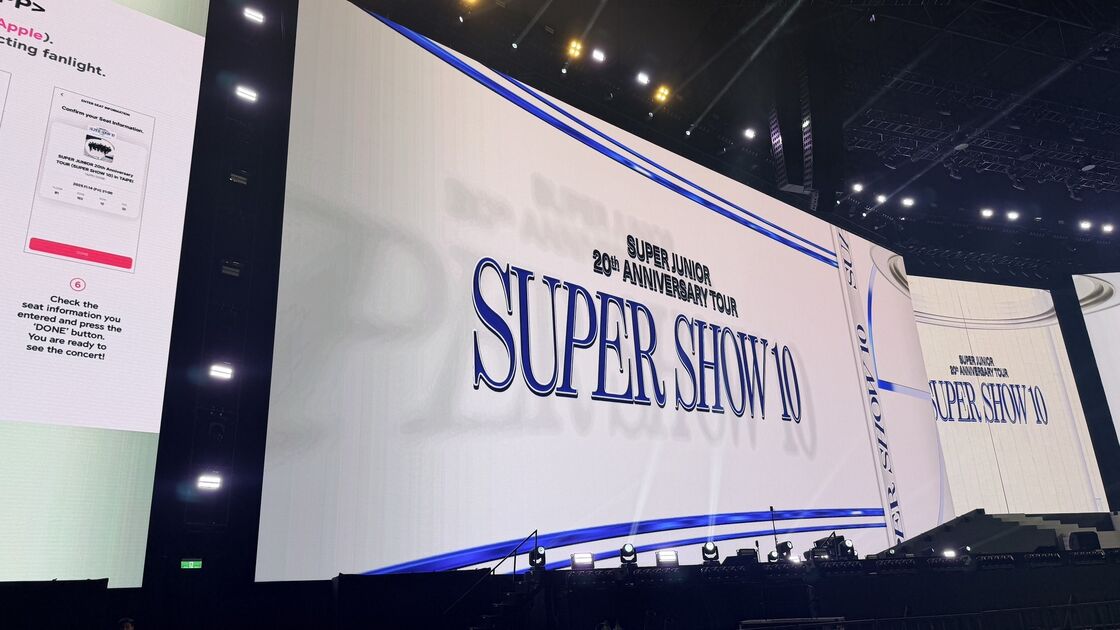

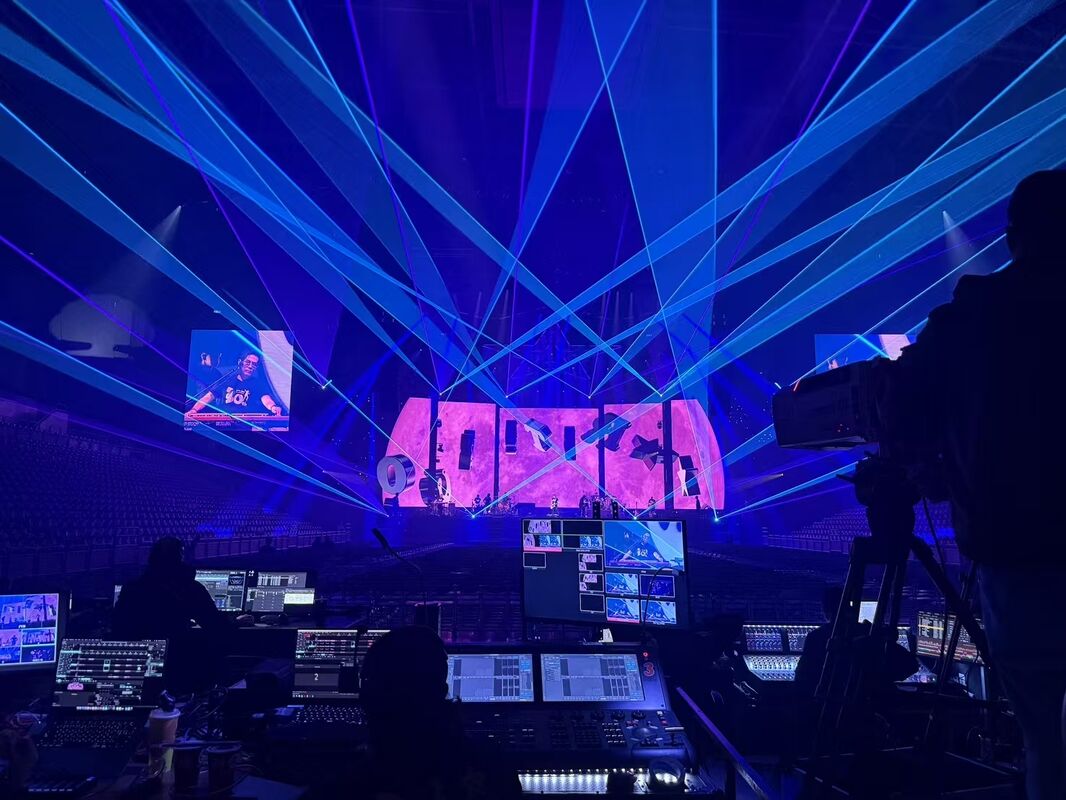

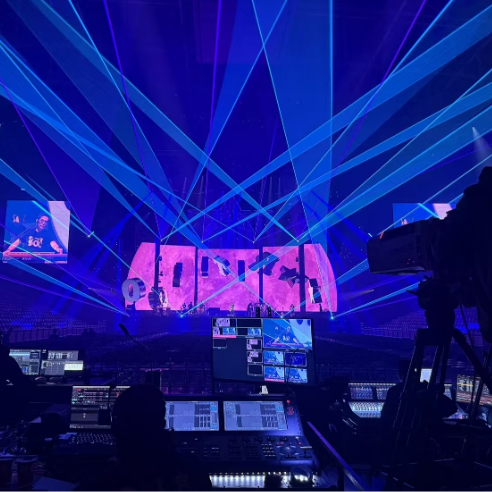

Real‑World Use Cases
P2.6 / P2.9 – High‑end product launches, broadcast studios, luxury brand events
P2.97 / P2.976 – Trade show booths, houses of worship, indoor/outdoor hybrid events
P3.91 – Music festivals, concert tours, corporate stages (the workhorse)
P4.81 – Sports stadiums, large exhibitions, budget‑conscious rentals
Why Rental Companies Choose the G10 Series
“We started with P3.91 for festivals. Later we added P2.6 for VIP events and P4.81 for large stadium jobs. Same cabinets, just swapped modules. Saved us over $50,000 in inventory costs." – Rental company owner, Europe.
Get the Complete G10 Series Catalog
Contact us to request the full technical datasheet, price list, and sample kit. We can also help you choose the right mix of pitches for your market.
Bulk Discounts Available for Series Purchases
Order multiple pitches in one shipment to save on freight and get tiered pricing.
Send your inquiry directly to us
