Guide Visual G10 P2.9 Private Mold Indoor Rental LED Display
Walk any LED trade show and you will see dozens of brands selling what looks like the same cabinet — because most of them buy the same public-mold housing from the same few factories. The G10 series took a different path: our own mold, our own production line, our own locks. This page explains why that difference decides how a rental screen ages — and what it means for your fleet's cost per show.

Why Private Mold Matters — How a Cabinet Ages
A rental LED screen lives and dies by its cabinet. Here is the working logic: Structure: molten aluminum is die-cast into one rigid piece. Wall thickness and rib layout (invisible after assembly) decide whether corners stay square after 200 shows or warp in one season.
Thermal: LEDs lose lifespan as temperature climbs. A mold designed with heat-sink ribs sheds heat; a generic box traps it.
Precision: cabinet flatness tolerance decides the seam you see from 3 meters away. ±0.1mm casting keeps large walls gap-free.
Connection: quick-lock alignment is machined into the mold, not bolted on later — locks that align every time, no wobble after thousands of cycles.
Public mold cabinets optimize for one number: purchase price. Private mold optimizes the three numbers that decide your operating cost: lifespan, maintenance frequency, and resale value.

What You Get with the G10 Private Mold
• Thicker die-cast aluminum walls — stiffer than typical public-mold cabinets; corners stay square through years of stacking and transport.
• Optimized heat-sink design — lower internal temperature, longer LED life, full-brightness operation through long shows.
• Machined quick locks — precise alignment every connect; no jamming, no on-site adjustment.
• Integrated anti-collision corners — protection molded in, not bolted on.
• Distinctive look — your fleet reads as a brand at the trade show, not as everyone else's box.
• Full redundancy inside — dual power + dual signal loop + hard-wired HUB links, the same architecture across the G10 platform (P2.6–P4.81, indoor from P1.5). Real Benefits for Rental Companies Less deformation — seamless splicing year after year, not just at delivery. Better cooling — longer shows at full brightness without thermal fade. Faster assembly — locks align first time; smaller crews, faster load-outs. OEM-ready — put your logo, cabinet color and flight-case branding on a platform you can't buy anywhere else. Higher resale value — recognizable private-mold cabinets command better prices on the used market.

Product Specifications
|
Operating environment
|
Indoor
|
|
Model
|
P1.5
|
P1.9
|
P2.6
|
P2.97
|
P3.91
|
|
Pixel pitch(mm)
|
1.5625
|
1.953
|
2.604
|
2.976
|
3.91
|
|
Pixel density (dots/m²)
|
409,600
|
262,144
|
147,456
|
112,896
|
65,536
|
|
Scan mode
|
1/40
|
1/32
|
1/32 1/16
|
1/28
|
1/16
|
|
LED type
|
SMD1212
|
SMD1415
|
SMD1415
|
SMD1415
|
SMD2121
|
|
Module size (mm)
|
250 x 250
|
|
Module resolution(dots)
|
160x160
|
128x128
|
96x96
|
84x84
|
64x64
|
|

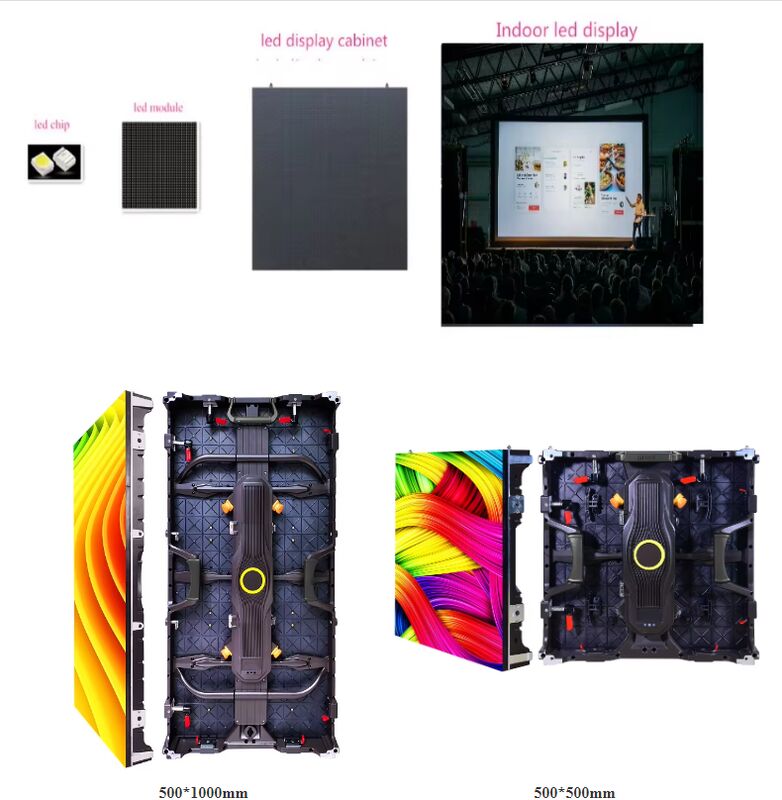

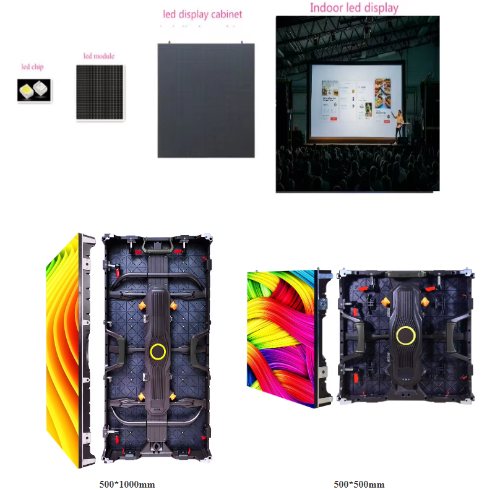

Cabinet size(mm)
|
500x500x85/500x1000x85
|
|
|
Cabinet weight(kg/pc)
|
7.2/12.2
|
|
Cabinet material
|
Die-casting Aluminum
|
|
Service
|
Rear Maintenance/Front Maintenance
|
|
Brightness(cd/m²)
|
800-2000
|
|
Refresh rate (Hz)
|
3840-7680
|
|
Gray scale (bit)
|
14-16
|
|
Avg. Power(W/m²)
|
320
|
|
Max. Power(W/m²)
|
800
|
|
Protection Rating
|
IP30
|
|
Radian
|
-10°~+15°
|
|
Viewing angle(°)
|
160°/160°
|
|
Contrast
|
6000:1
|
|
Life time(hours)
|
100,000 hours
|
|
Operating temperature(℃)
|
-10℃~+45℃
|
|
Operating humidity(RH)
|
10~80%RH
|
Where It Works
• Conference & exhibition backdrops — close viewing demands P2.9-level pixel density and gap-free seams
• TV studios & broadcast sets — 3840Hz standard (7680Hz optional) keeps cameras clean

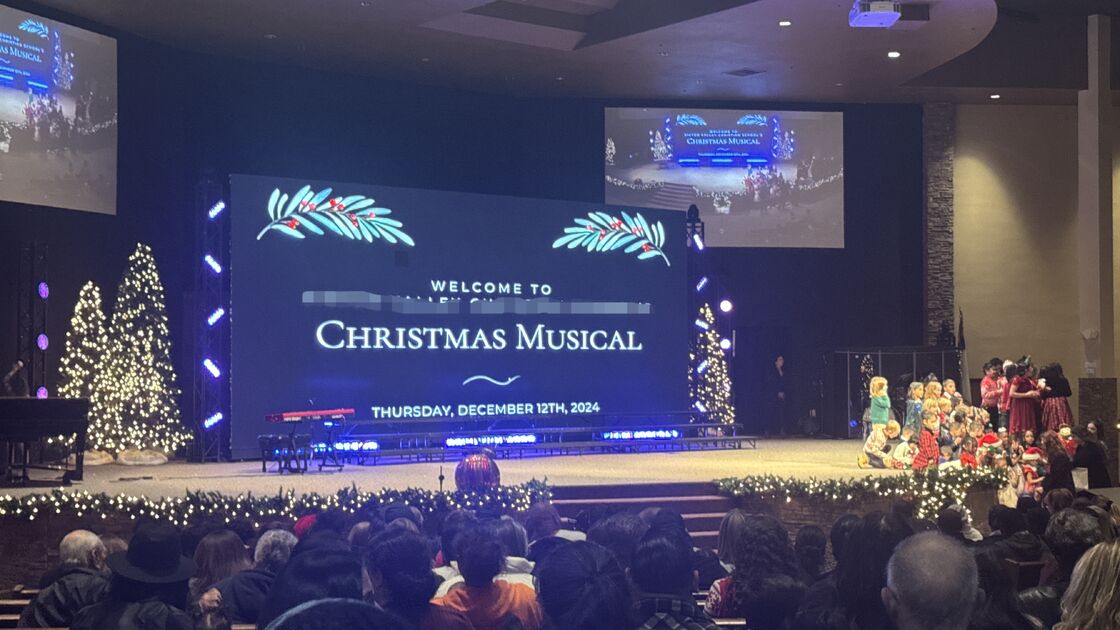

• Showrooms & brand launches — a wall that looks like your brand, built on your private platform
• Rental fleets — P2.6–P4.81 on one G10 chassis: one spare pool, one rigging method

Why Choose Guide Visual
• Source factory, own mold — you buy from the company that pours the aluminum, not a trading office
• Founded 2011 — 15 years of LED display manufacturing in Shenzhen
• Every panel ships after 72-hour aging — module burn-in first, then full-cabinet temperature cycling, defect rate under 1‰
• OEM & ODM welcome — logo, color, packaging and flight cases customized from pilot order
• Engineering support — layout drawings, rigging calculations and CAD files before you commit

Frequently Asked Questions
• What exactly is a private mold cabinet? — A housing designed and owned by the manufacturer, available only in its products. Public-mold cabinets are generic designs any factory can buy — that's why so many brands' screens look identical.
• Is private mold only about looks? — No. Wall thickness, heat-sink ribs and lock alignment are structural — they decide flatness, cooling and how the cabinet survives its 200th show.
• Can you build our brand on this platform? — Yes. OEM/ODM from pilot order: logo, cabinet color, packaging, flight cases.
Tell us your rigging and handling preferences and we'll map it.
• What do you need for a quote? — Width & height, indoor/outdoor, viewing distance, rigging method, project location.
👉 Ask for a G10 sample cabinet — feel the lock, check the seam, then decide.
