Transparent LED Video Wall Rental | P3.91 LED Display Panel with Backup Signal
When Your Vision Can't Be Blocked. When Your Display Must Disappear. When Failure Is Not an Option.
The Guide Visual GT Series is a transparent LED screen engineered for architects, retail designers, and event producers who demand see-through LED displays that blend seamlessly into glass facades, stage designs, and luxury installations. With 70-90% transparency, dual power redundancy, and quad-signal backup, this isn't just a transparent LED display—it's invisible infrastructure that stays live even when components fail. We manufacture, we ship globally, you install. That's the factory-direct model that powers flagship stores in Dubai, concert stages in Berlin, and corporate lobbies in New York.
Why GT Series Transparent LED Displays?
True Transparency – Not Compromised Clarity
-
75% Transparency (GT-P3.91): See-through LED screen that maintains natural light and sightlines. Perfect for retail window LED displays where product visibility matters.
-
85% Transparency (GT-P10): Ultra-light transparent LED film for glass partitions and architectural integration.
-
No Black Masking: Unlike conventional LED display screens, our transparent LED panels use minimalist PCB design, maximizing visibility.
Dual Redundancy – Engineered for 24/7 Operation
Every GT Series transparent LED screen inherits Guide Visual's signature redundancy:
-
Dual Load-Sharing Power Supplies: If one fails, the other powers the entire transparent LED display without interruption.
-
Quad-RJ45 Signal Backup: Two active + two standby data paths. Switch manually in 3 seconds if a cable fails.
-
Module-Level Hot Swap: Replace individual LED modules in 2 minutes from the front—no need to dismantle the glass LED screen structure.
Factory-Direct. No Distributor. No Delays.
-
Manufactured in Shenzhen: We control every component—high-brightness SMD LEDs, ultra-thin PCBs, reinforced mounting frames. Quality is our DNA.
-
Shipped to Your Site: Production + freight = 14-30 days globally. We deliver transparent LED displays to your warehouse, retail site, or venue. No same-day (we're a factory), but guaranteed on-time.
-
Your Team, Your Install: We provide transparent LED screen panels and engineering CADs. You handle installation—maintaining control and margins.
| Model |
GT-P3.91 |
GT-P7.8 |
GT-P10 |
GT-P16 |
| Pixel Pitch |
3.91mm × 7.8mm |
7.8mm |
10mm |
16mm |
| Transparency |
70% |
80% |
85% |
90% |
| Brightness |
4,500 nits |
5,000 nits |
5,500 nits |
6,000 nits |
| Refresh Rate |
3,840Hz |
3,840Hz |
1,920Hz |
1,920Hz |
| Panel Size |
1000×500mm, 5kg |
1000×500mm, 4.5kg |
1000×500mm, 4kg |
1000×500mm, 3.5kg |
| Power Consumption |
250W/m² |
200W/m² |
180W/m² |
150W/m² |
| Power Input |
Dual 110-240V AC (load-sharing) |
Dual 110-240V AC |
Dual 110-240V AC |
Dual 110-240V AC |
| Signal Ports |
4× RJ45 (2+2 backup) |
4× RJ45 |
4× RJ45 |
4× RJ45 |
| Installation |
Hanging, stacking, glass mount |
Hanging, glass mount |
Glass mount, frameless |
Glass mount, film |
| Certifications |
CE, RoHS, FCC, CCC, ETL |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
| Warranty |
2 years factory |
2 years factory |
2 years factory |
2 years factory |
For Retail & Commercial Window LED Displays
Mount GT-P7.8 transparent LED screens directly onto existing glass. Customers see your digital content and the products inside. The 75% transparency maintains store aesthetics while delivering LED billboard-level brightness. Dual power means your retail LED display never goes black during business hours.
For Stage LED Screen & Concert Productions
Create transparent LED video walls that float above performers. GT-P3.91 panels hang on StageCMD truss at 500mm centers, supporting creative see-through layers for concert LED displays. The 3,840Hz refresh rate ensures zero flicker on 4K broadcast cameras.
For Corporate Lobby & Architectural Integration
Install GT-P10 transparent LED film on glass partitions in corporate headquarters. Display company metrics, welcome messages, or art—without blocking natural light. The 4,500 nits brightness cuts through ambient office lighting, and the dual signal backup prevents embarrassing downtime during VIP tours.
For Church LED Wall & House of Worship
Use GT-P7.8 transparent LED displays behind the altar—visible to congregants but not obtrusive. The high transparency preserves the sanctuary's openness while delivering crystal-clear lyrics and sermon points. The -30°C to +60°C operating range handles unheated sanctuaries in winter.

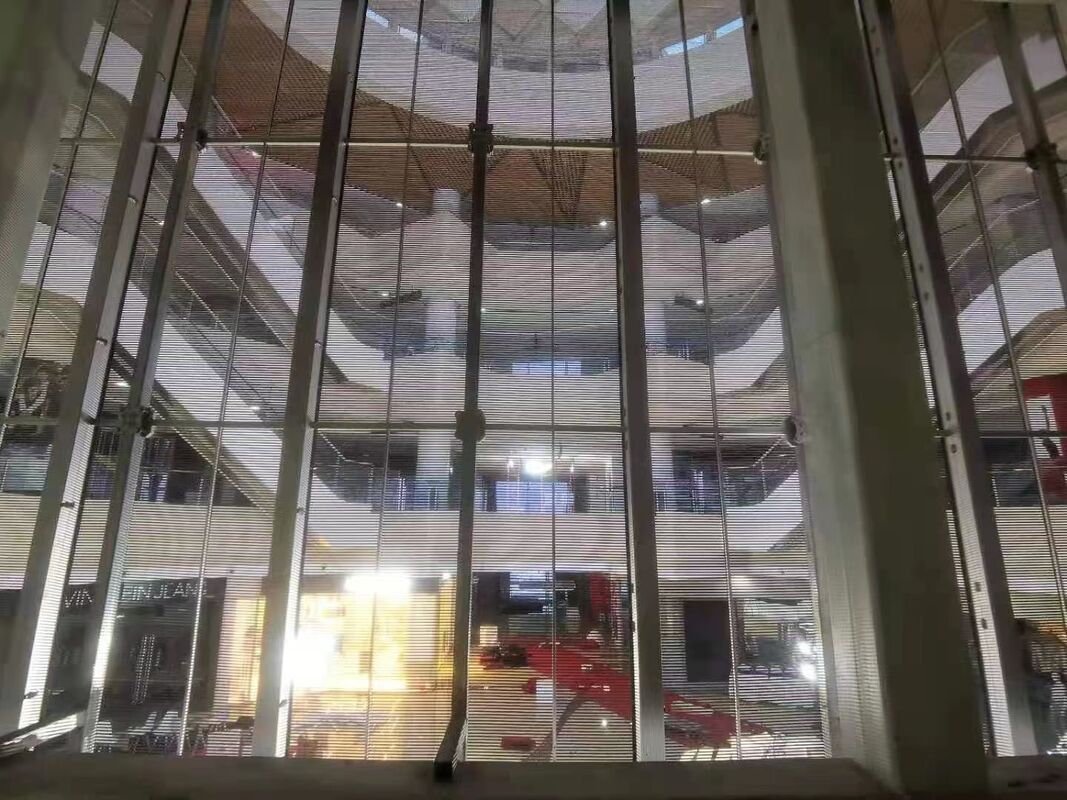

For Outdoor LED Advertising & Building Facades
GT-P16 transparent LED screens transform skyscraper glass into giant LED billboards without blocking interior views. The IP65 outdoor LED display rating ensures rain, dust, and UV resistance. At 6,000 nits, your content dominates city skylines day and night.
Application
Chain stores: A unique store image can attract consumers to stop and increase customer flow. The unique design method allows the transparent led display to replace the traditional store exterior led display, and provides richer and more vivid video advertisements, making the store extremely cool and eye-catching.
Glass showcases: With the rapid expansion of the digital signage industry represented by retail, led transparent screens have brought revolutionary changes to retailers and are increasingly popular in fields such as building facades, glass showcase decoration, and interior decoration.

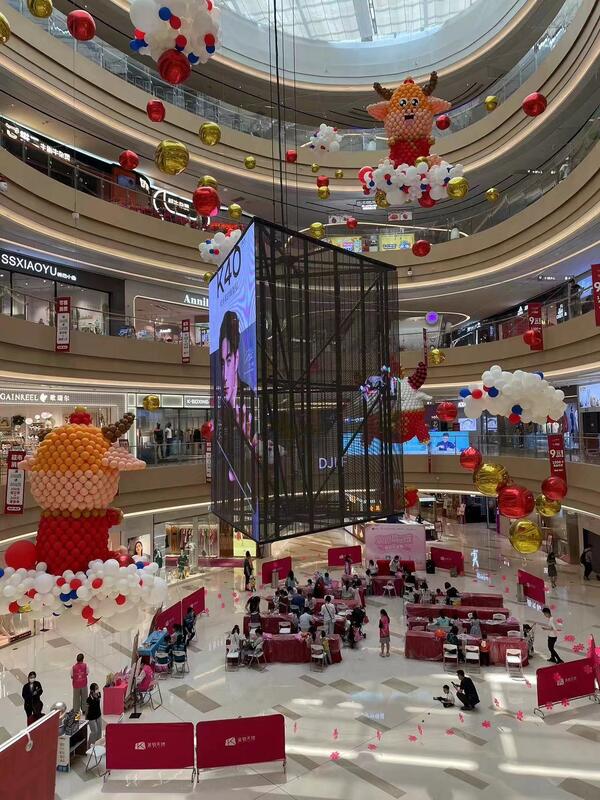

Large shopping malls: The modern artistic beauty of led transparent displays is effectively combined with the shopping mall environment. It has broad application prospects in shopping malls, glass partitions, etc.
Architectural media: With the development of led technology. Architectural media technology has also made rapid progress, especially in the application of glass curtain wall buildings. It has become increasingly popular in recent years, and various solutions such as led light bar screens and transparent led sky screens have emerged.
Guide Visual Factory Advantage for Transparent LED Displays
Manufacturing Excellence – Not Assembly
-
100% Original Components: High-transparency SMD LEDs from NationStar, ultra-thin PCBs with 0.2mm copper for thermal performance, custom aluminum frames that don't warp.
-
72-Hour Burn-In Test: Every transparent LED display panel runs at max brightness in our chamber before shipment. We reject panels with >3% brightness variance.
-
Batch Color Matching: We store production data for 5 years. When you reorder, we match the exact LED bin for seamless LED video wall uniformity.
Logistics & Packaging
-
Flight-Cased Protection: Each transparent LED screen panel ships in a foam-insert flight case (10 panels/case). Cases stack on pallets for freight efficiency.
-
Global Freight Network: We manage export customs, you handle import. Delivery to Dubai, London, Los Angeles, or Lagos—14-30 days depending on mode.
-
No Same-Day, Guaranteed On-Time: Production is 7-14 days; freight is 7-30 days. We commit to ship dates, not miracles.
Support That Respects Your Expertise
-
Pre-Shipment Video Training: We record a 30-minute session showing your techs how to assemble the transparent LED display using your actual panels.
-
CAD & Rigging Drawings: Get engineering files for truss load calculations, glass mounting details, and power distribution layouts.
-
Remote Diagnostics: 90% of transparent LED screen issues are diagnosed via panel's self-test mode + TeamViewer. We ship spare parts, not expensive engineers.
About Guide Visual
Guide Visual is a professional LED display manufacturer with over 13 years of experience in the LED screen industry.
We specialize in rental LED displays, known for their durability, innovation, and stability.
All products are designed and manufactured in-house — from cabinet molding to quality control — ensuring consistent quality and fast delivery.
Our advantages:
-
13+ years manufacturing experience
-
NovaStar control system (A5plus chip)
-
Self-developed cabinets, strong anti-collision performance
-
Stable signal connection, no black screen
-
Trusted by clients across Europe, the Middle East, Africa & Southeast Asia
Installation & Maintenance
-
Quick Setup: Hard link design reduces setup time by 50%.
-
Modular Design: Front & rear maintenance for flexible access.
-
Seamless Splicing: Ensures a smooth, continuous display with perfect alignment.
-
Optional Curved Connection: Can be customized for creative stage designs.
-
Even non-technical teams can complete installation within minutes — saving time, labor, and cost.
Packing & Shipment
For safe and efficient delivery, each LED panel is carefully packed in high-quality flight cases (aviation cases):
- Anti-shock foam protection to prevent cabinet damage
- Stackable design for easy transport and storage
- Waterproof & dustproof cases for outdoor use
- Each case can hold 6 to 8 panels depending on cabinet size (500×500mm / 500×1000mm)
We offer air, sea, or express shipping options depending on your order size and location.
Every shipment is fully inspected and packed under strict QC standards to ensure safe arrival.
Why Choose Guide Visual
Ultra-high refresh rate 7680Hz – perfect for live broadcast & camera shooting
Dual backup for signal & power – no black screen during critical moments
Lightweight & strong cabinet – easy to transport & assemble
Professional factory support – direct price, stable quality
