Place of Origin:
China
Brand Name:
Guide Visual
Certification:
CCC CE FCC ROSH
Model Number:
GS curve
video
video
| GS Series Curved Cabinet | |||||||||
| Operating environment | Indoor | Outdoor | |||||||
| Model | P1.5 | P1.9 | P2.6 | P2.97 | P3.91 | P2.6 | P2.9 | P3.91 | P4.81 |
| Pixel pitch(mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 | 4.81 |
| Pixel density (dots/m²) | 409600 | 262144 | 147,456 | 112,896 | 65,536 | 147,456 | 112,896 | 65,536 | 43,264 |
| Scan mode | 1/40 | 1/32 | 1/32 1/16 | 1/28 | 1/16 | 1/16 1/24 | 1/21 | 1/16 | 1/13 |
| LED type | SMD1212 | SMD1415 | SMD1415 | SMD1415 | SMD2121 | SMD1515 | SMD1515 | SMD1921 | SMD1921 |
| Module size (mm) | 250x250 | 250 x 250 | |||||||
| Module resolution(dots) | 160x160 | 128x128 | 96x96 | 84x84 | 64x64 | 96x96 | 84x84 | 64x64 | 52x52 |
| Cabinet size(mm) | 500x500x75 | 500x500x75 | |||||||
| Cabinet weight(kg/pc) | 7.5 | 7.8 | |||||||
| Cabinet material | Die-casting Aluminum | Die-casting Aluminum | |||||||
| Service | Rear Maintenance | Rear Maintenance | |||||||
| Brightness(cd/m²) | 800-2000 | 3500-5000 | |||||||
| Refresh rate (Hz) | 3840-7680 | 3840-7680 | |||||||
| Gray scale (bit) | 14-16 | 14-16 | |||||||
| Avg. Power(W/m²) | 320 | 400 | |||||||
| Max. Power(W/m²) | 800 | 800 | |||||||
| Protection Rating | IP30 | IP65 | |||||||

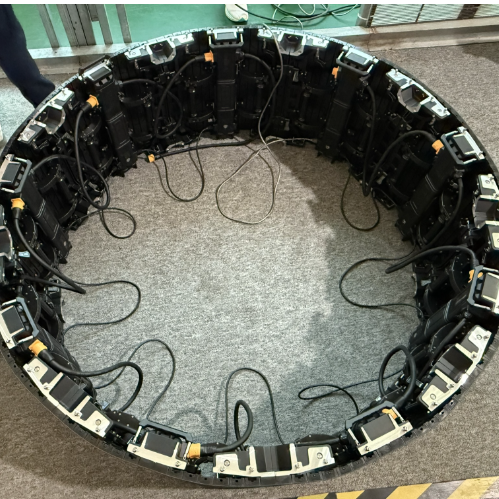

| Radian | -22.5°~+22.5° | -22.5°~+22.5° | |||||||
| Viewing angle(°) | 160°/160° | 140°/140° | |||||||
| Contrast | 6000:1 | 3000:1 | |||||||
| Life time(hours) | 100,000 | 100,000 | |||||||
| Operating temperature(℃) | -10℃~+45℃ | -10℃~+45℃ | |||||||
| Operating humidity(RH) | 10~60%RH | 10~80%RH | |||||||
Flexible control – HDMI, SDI, USB, WiFi, or 4G. Compatible with NovaStar, synchronous or asynchronous playback.

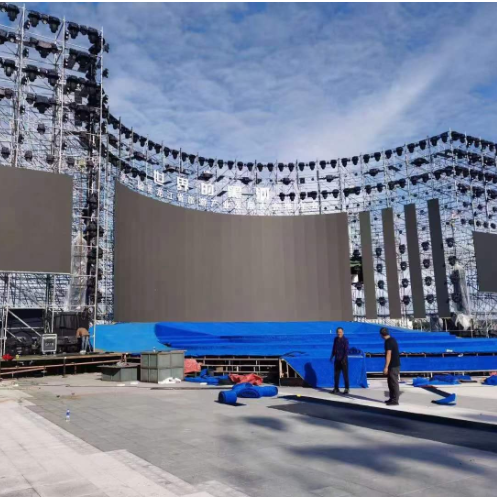

Two professional setup solutions – truss hanging for large venues, ground stacking for festivals and exhibitions.
From KOBA exhibitions to youth festivals and community cinemas, Guide Visual's GS Series has been deployed across 40+ countries and trusted by 300+ event companies.
These aren't just installations – they're partnerships. Each project represents a production team that chose Guide Visual for its reliability, service, and professional-grade performance.
Rental equipment spends a significant part of its life in transit. Our flight cases are engineered to prevent physical shock damage during road, sea, or air freight.
From world-class concerts to international exhibitions, Guide Visual delivers.
📧 Email: sales@sqleddisplay.com
🌐 Website: www.guide-led.com
📞 WhatsApp: +86 182 2059 1195
👉 Contact us for custom outdoor LED display solutions and bulk pricing.
