Meta Description: Guide Visual P3.91 outdoor rental LED display is designed for concerts, festivals and large events, combining 7680Hz refresh rate, IP65 protection, fast-lock installation and reliable power and signal backup.
For a large outdoor event, the LED screen has a simple job: be there when the audience looks at it.
A screen can have impressive resolution and brightness, but if installation takes too long, cabinets are difficult to handle, or a signal problem takes down part of the wall during the show, the specifications no longer matter.
That is why the Guide Visual P3.91 outdoor rental LED display focuses on the things rental crews deal with every day: fast installation, stable operation, weather protection and easy handling.
It is designed for concerts, music festivals, sports events, outdoor brand activations and large event productions where the screen may be transported, assembled and dismantled repeatedly.
With a 3.91mm pixel pitch, P3.91 provides a practical balance between image detail, viewing distance and project cost.
For large-format LED walls, the audience is usually not standing directly against the screen. P3.91 is therefore a sensible choice when you need a large visual surface without moving into an unnecessarily fine pixel pitch.
It works well for:
For rental companies, that balance is important. One screen may need to serve several different types of events throughout the year.
Outdoor rental equipment has to deal with more than the show itself.
Rain during setup. Dust during transportation. Temperature changes between venues. Frequent loading and unloading.
The GS Series P3.91 outdoor configuration uses an IP65 protection rating, providing protection against dust and water exposure appropriate for outdoor LED applications.
The operating temperature range is -30°C to +40°C, with a working humidity range of 10%–90% RH according to the supplied specifications.
That makes the display suitable for demanding outdoor event environments where indoor LED products simply are not enough.

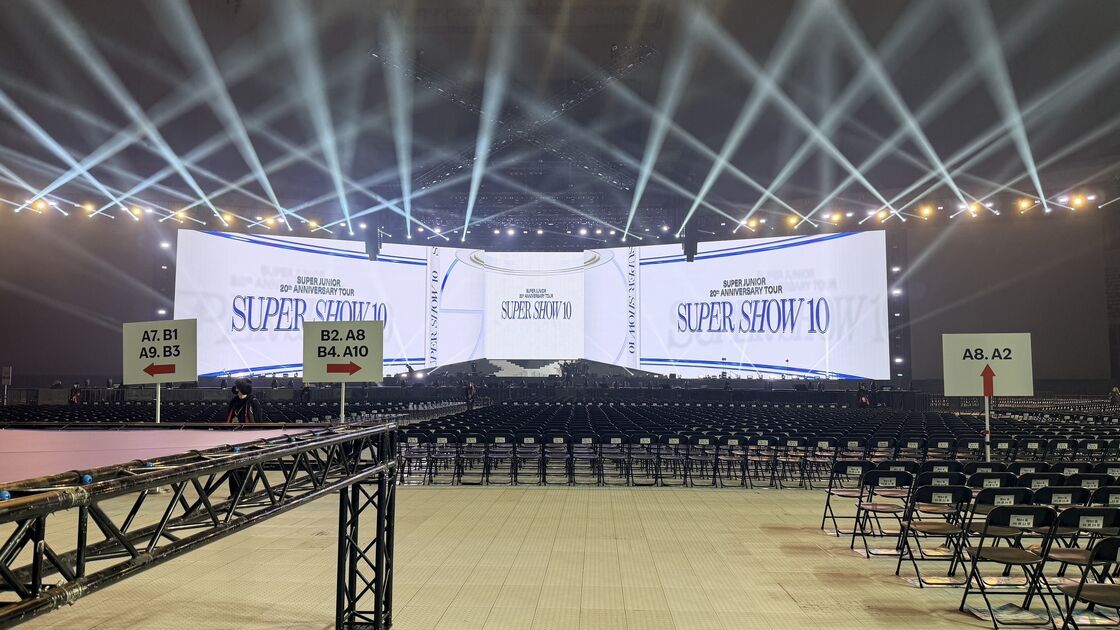

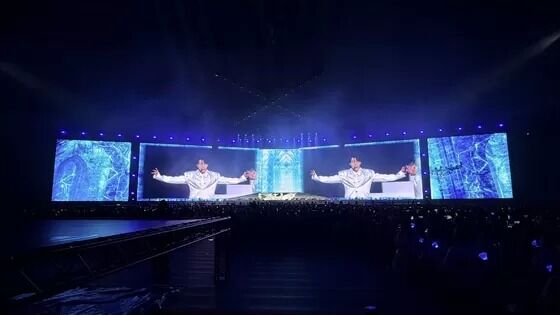

Caption: GS P3.91 outdoor rental LED display in a professional event environment.
A large event screen is often viewed through more than the audience's eyes.
There may be broadcast cameras, event photographers, livestreaming equipment and mobile phones pointed at the stage.
The GS P3.91 supports a 7680Hz refresh rate, helping provide smooth image performance and reducing visible flicker or scanning issues when the screen is captured by cameras.
For live productions, that means the LED wall can become part of the video production rather than something the camera crew has to work around.
The difference between a fixed LED installation and a rental screen becomes obvious after the first few projects.
Rental cabinets are constantly being moved, connected and dismantled.
GS was designed with those repeated operations in mind.
The quick-lock system allows cabinets to be connected efficiently without complicated assembly procedures.
For production teams working with limited load-in time, a faster mechanical connection means more time for power, signal and content testing before the audience arrives.

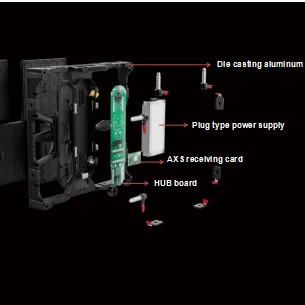

The GS Series uses a hardwired internal connection structure, reducing reliance on conventional ribbon-cable connections inside the cabinet.
This provides a more robust connection approach for equipment that is repeatedly transported and assembled.
The module incorporates an anti-collision PCB welding plate design to help protect the LED module during handling, stacking and installation.
It is a small detail, but rental companies know exactly why it matters.
One damaged module means another repair job before the next event.

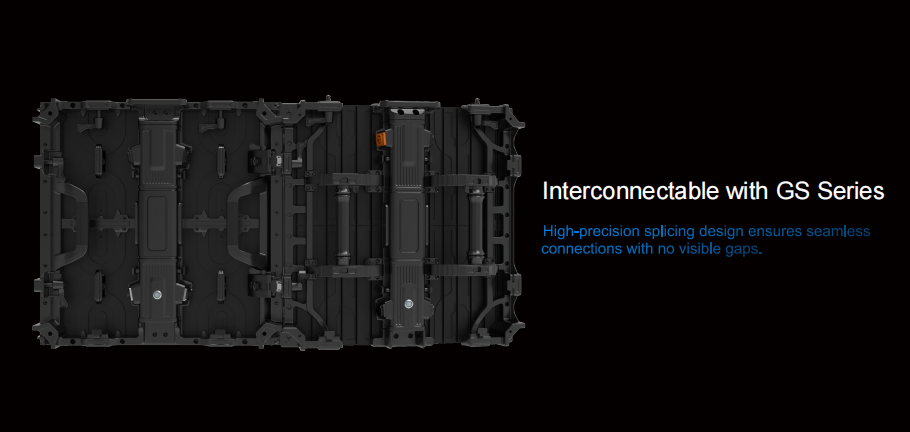

The GS Series uses a modular cabinet platform available in 500 × 500mm and 500 × 1000mm formats.
That gives production teams more flexibility when planning different screen dimensions and stage layouts.
The cabinets can also be used for flat, curved, arc and special-shaped configurations, allowing the same rental inventory to support conventional LED walls as well as more creative stage designs.
For rental companies, this flexibility can be more valuable than simply buying the highest-resolution screen available.
A professional rental LED display should not depend on a single connection point.
The GS Series incorporates power and signal backup solutions to provide additional protection against individual system failures.
The power backup design uses current-sharing principles to help maintain stable operation if one power supply encounters a problem.
The signal architecture also provides redundant signal paths, giving technicians an additional route when troubleshooting signal transmission.
The goal is simple:
Keep one component failure from becoming an entire screen failure.
For large event productions, the LED cabinet itself is only one part of the system.
Depending on the project, Guide Visual can also provide supporting equipment and services such as:
This allows rental companies and event production teams to source the main LED display system and related equipment from one supplier.
| Parameter | GS Series P3.91 Outdoor |
|---|---|
| Pixel Pitch | 3.91 mm |
| Pixel Density | 65,536 dots/m² |
| LED Type | SMD1921 |
| Refresh Rate | 7680 Hz |
| Brightness | 4500–5000 cd/m² |
| Module Size | 250 × 250 mm |
| Module Resolution | 64 × 64 dots |
| Cabinet Size | 500 × 500 × 75 mm / 500 × 1000 × 75 mm |
| Cabinet Weight | 6.8 kg / 11.8 kg |
| Viewing Angle | 160° / 160° |
| Protection Rating | IP65 |
| Working Temperature | -30°C to +40°C |
| Working Humidity | 10%–90% RH |
| Installation Options | Floor / Hanging / Arc / Special Shape / Right Angle |
Specifications may vary according to configuration. Please confirm the latest technical datasheet with Guide Visual before ordering.
A good rental LED system should make the production team's job easier, not create another problem for them.
The GS P3.91 follows a straightforward workflow:
Transport → Assemble → Connect → Test → Run the Event → Dismantle → Pack → Move to the Next Project
That is where the combination of lightweight cabinets, quick locking, anti-collision protection, hardwired connections, modular configurations and backup architecture becomes useful.
You are not just buying an LED panel.
You are building a rental system that needs to work repeatedly.
Caption: A practical rental workflow from transportation and installation to event operation and dismantling.
Concerts & Music Festivals
Large stage backgrounds, side screens and creative LED structures.
Sports Events
Live feeds, advertising, sponsor content and audience engagement.
Corporate Events
Product launches, outdoor conferences, ceremonies and brand presentations.
Brand Activations
Temporary promotional installations where visual impact matters.
Event Rental Companies
Flexible inventory for repeated deployment across different projects.
Not sure whether P2.97, P3.91 or P4.81 is the right choice?
Tell us:
Screen size + viewing distance + indoor/outdoor environment + application
Our team can recommend the appropriate pixel pitch, cabinet quantity and installation configuration based on your project.
