Place of Origin:
China
Brand Name:
Guide Visual
Certification:
CCC CE FCC
Model Number:
G10
WHY CHOOSE US?
l 15+ years LED display manufacturing experience
l 72-hour aging test before shipment Strict quality control system
l Professional rental LED screen production line
l Exported to USA / Europe / Korea / Middle East
l We don’t just sell screens — we deliver stable event systems.
Our Solution: “Live Event Stability System” We design our rental LED screen to ensure zero interruption during live shows.

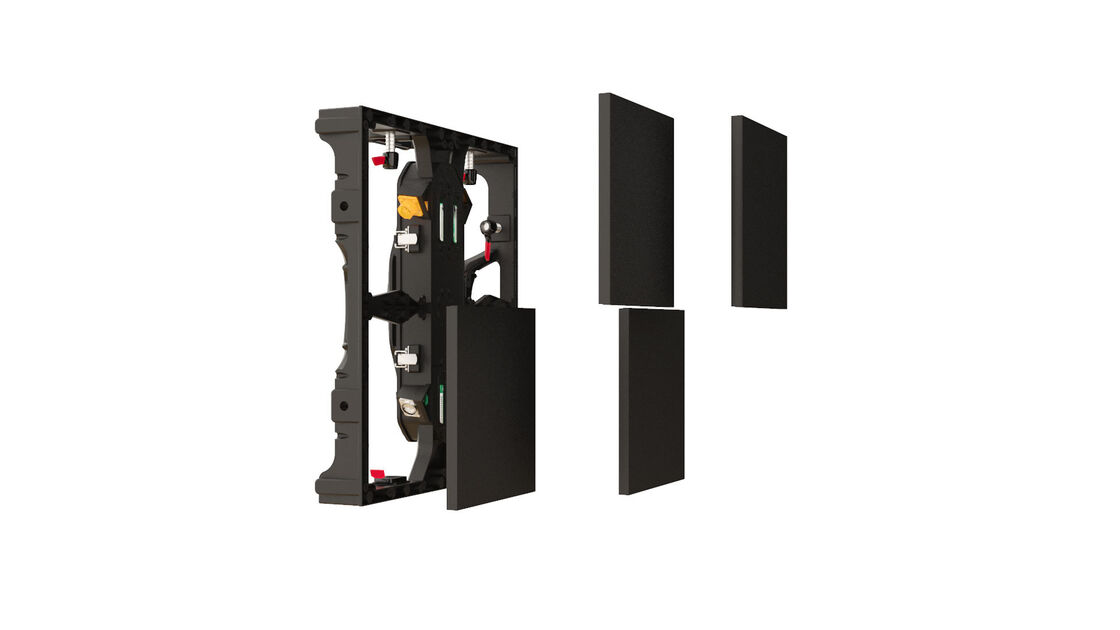

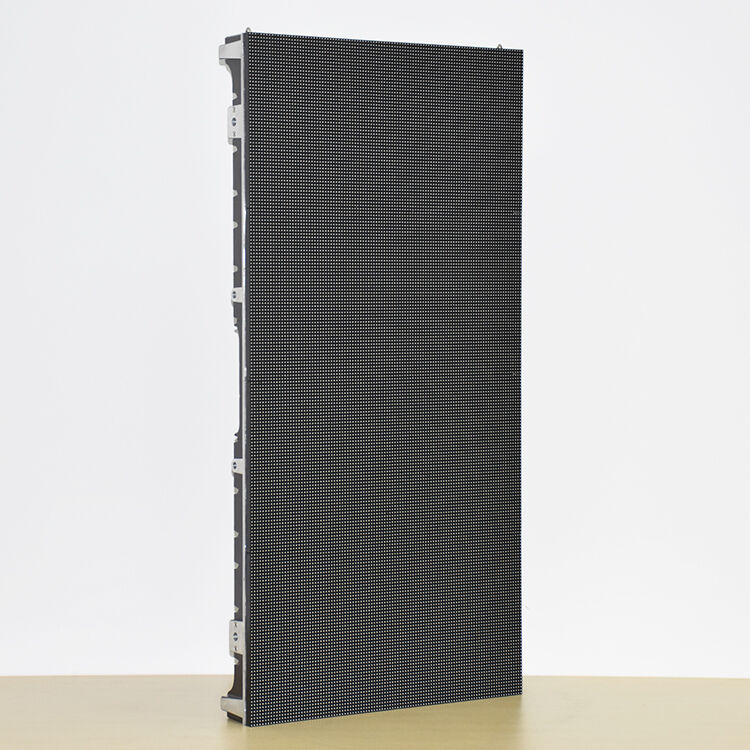

Precision Die-Cast Aluminum Cabinet
Engineered specifically for heavy touring and rental staging, the GS Series frame combines high structural strength with ultra-lightweight performance.
Dual-Size Compatibility: Mix 500×500mm(7.5kg) and 500×1000mm(12.5kg) panels seamlessly to fit any stage size.
Fast One-Man Setup: Integrated handles and fast-locks reduce build time and labor costs by 50%.
Heavy-Duty Structural Accuracy: CNC die-casting ensures ± alignment tolerance for a perfectly flat display after years of transport.
IP65 Waterproof – Rain or shine, your show goes on. Fully dust-tight and jet-water resistant. Zero weather-related downtime.
Sunlight-Visible Brightness – 5000cd high-brightness LEDs ensure content stays vivid under direct sun. No washed-out images.
Quick-Lock System – Tool-free assembly. One person, minutes. Less labor, faster setup on site.
45°Corner Bevel – Seamless curved installation (±15°) for concave, convex, or 90°right-angle backdrops. No visual breaks, no creative limits.
HUB Board Connection – Direct board-to-board link with zero ribbon cables. Minimal wiring, cleaner structure, fewer failure points on the road.

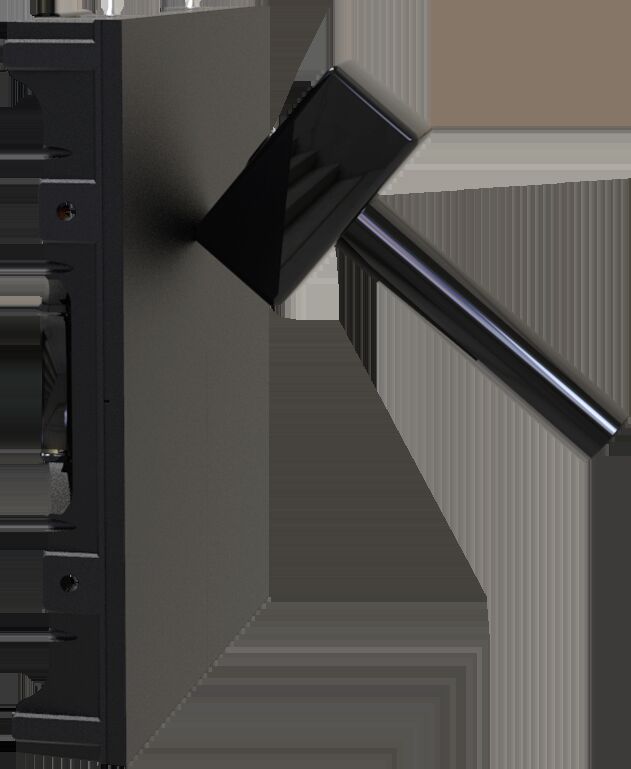

Corner Protection – Anti collision flip-up bumpers on every edge. Cabinets survive transport and handling — lower repair costs, longer fleet life.
|
Operating environment |
Outdoor |
|||
|
Model |
P2.6 |
P2.9 |
P3.91 |
P4.81 |
|
Pixel pitch(mm) |
2.604 |
2.976 |
3.91 |
4.81 |
|
Pixel density (dots/m²) |
147,456 |
112,896 |
65,536 |
43,264 |
|
Scan mode |
1/16 1/24 |
1/21 |
1/16 |
1/13 |
|
LED type |
SMD1515 |
SMD1515 |
SMD1921 |
SMD1921 |
|
Module size (mm) |
250 x 250 |
|||
|
Module resolution(dots) |
96x96 |
84x84 |
64x64 |
52x52 |
|
Cabinet size(mm) |
500x500x85/500x1000x85 |
|||
|
Cabinet weight(kg/pc) |
7.5/12.5 |
|||
|
Cabinet material |
Die-casting Aluminum |
|||
|
Service |
Rear Maintenance/Front Maintenance |
|||
|
Brightness(cd/m²) |
3500-5000 |
|||
|
Refresh rate (Hz) |
3840-7680 |
|||
|
Gray scale (bit) |
14-16 |
|||
|
Avg. Power(W/m²) |
400 |
|||
|
Max. Power(W/m²) |
800 |
|||
|
Protection Rating |
Front Maintenance Cabinet: IP54 |
|||
|
Viewing angle(°) |
140°/140° |
|||
|
Contrast |
3000:1 |
|||
|
Life time(hours) |
100,000 hours |
|||
|
Operating temperature(℃) |
-10℃~+45℃ |
|||
|
Operating humidity(RH) |
10~80%RH |
|||

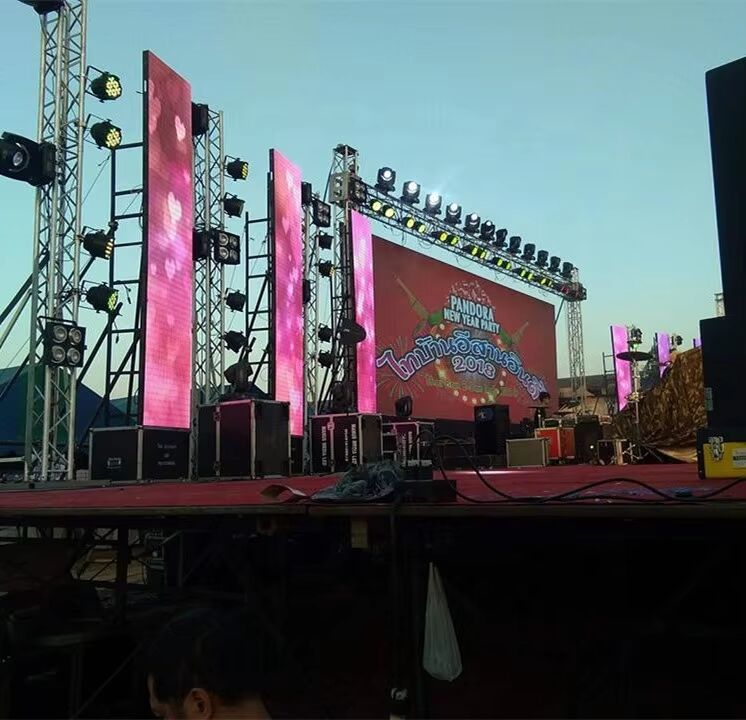

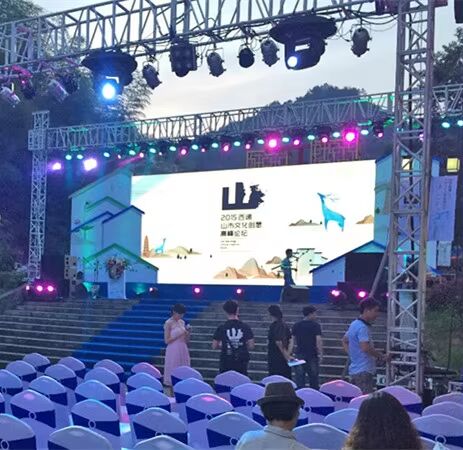

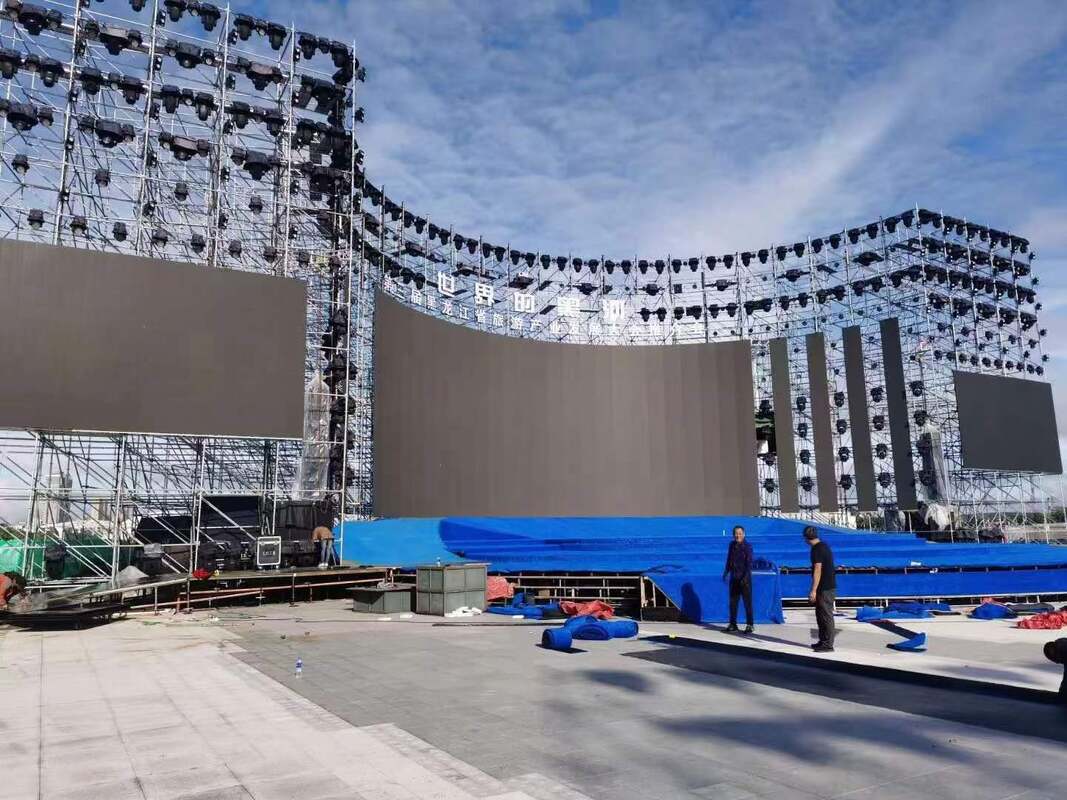

Two professional setup solutions – truss hanging for large venues, ground stacking for festivals and exhibitions.

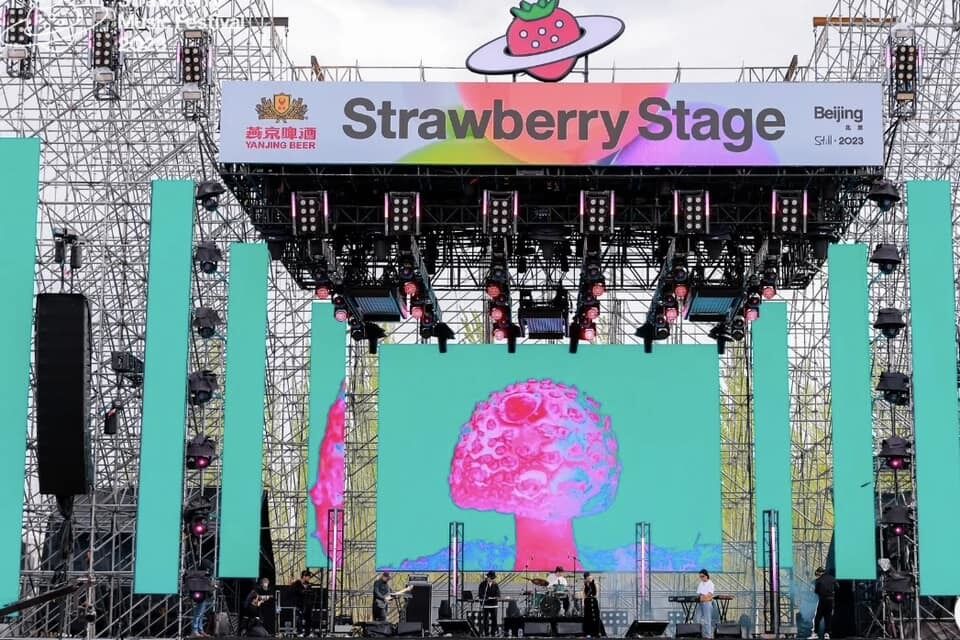

From KOBA exhibitions to youth festivals and community cinemas, Guide Visual‘s GS Series has been deployed across 40+ countries and trusted by 300+ event companies.
These aren‘t just installations – they‘re partnerships. Each project represents a production team that chose Guide Visual for its reliability, service, and professional-grade performance.

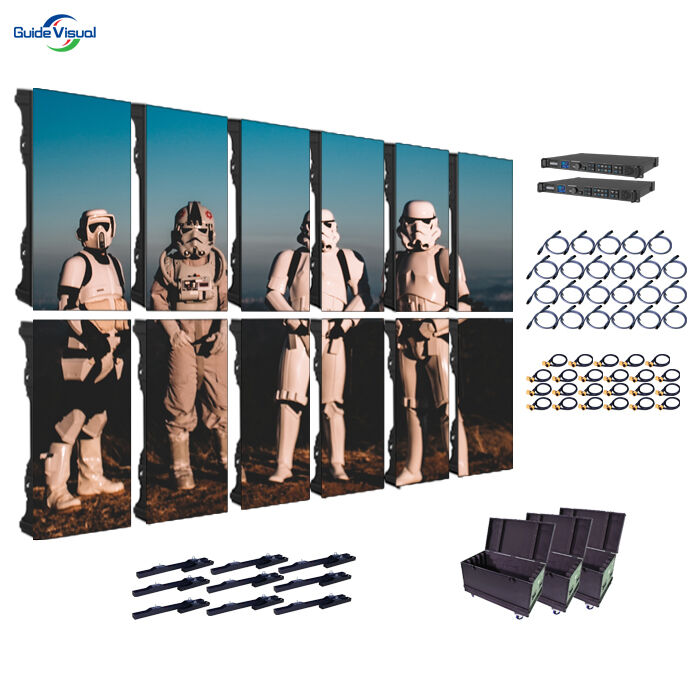

Rental equipment spends a significant part of its life in transit. Our flight cases are engineered to prevent physical shock damage during road, sea, or air freight.
With a 16-year proven track record on international platforms and direct participation in global AV tradeshows, Guide Visual supports event companies and AV distributors in over 40+ countries.
The GS Series P3.91 Outdoor Rental LED Display is built for professionals who demand reliability, performance, and support – in any environment, in any weather, on any stage.
From world-class concerts to international exhibitions, Guide Visual delivers.
