Place of Origin:
China
Brand Name:
Guide
Certification:
CE FCC CCC
Model Number:
GS
Meta Description: Guide Visual GS Series rental LED display combines a lightweight 6.8kg cabinet, fast-lock installation, anti-collision protection and flexible flat, curved and right-angle configurations for concerts, exhibitions, corporate events and professional stage productions.
A rental LED screen is not installed once and left there.
It is loaded into a truck, carried into a venue, assembled under time pressure, dismantled after the event and prepared for the next job. That is where the small design details start to matter.
The Guide Visual GS Series rental LED display was developed around this reality. Instead of focusing only on image quality, GS also pays attention to installation speed, cabinet weight, protection during handling, maintenance access and flexible stage configurations.
The result is a rental LED system that is easier to handle and easier to reuse across different events.
The GS Series starts with one simple idea: make the screen easier to work with.
The 500 * 500mm cabinet weighs only 6.8kg, while the 500 * 1000mm version weighs 11.8kg. For a rental company moving dozens or hundreds of cabinets, this can make a noticeable difference during load-in and dismantling.

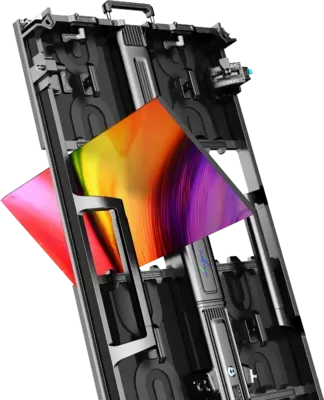

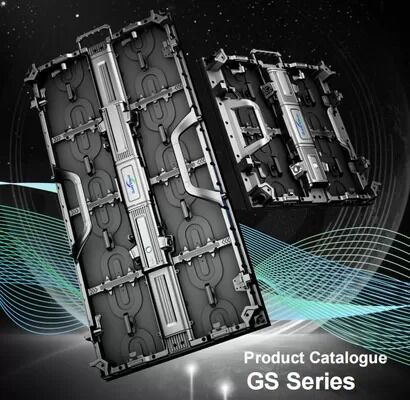

The die-cast aluminum cabinet combines a slim 75mm profile with a quick-lock structure, allowing cabinets to be assembled and removed efficiently without complicated tools.
For touring productions and short installation windows, every minute saved on site counts.
A rental screen does not always have to be straight.
The GS Series supports flat, curved, arc and right-angle configurations, giving production teams more freedom when designing a stage.

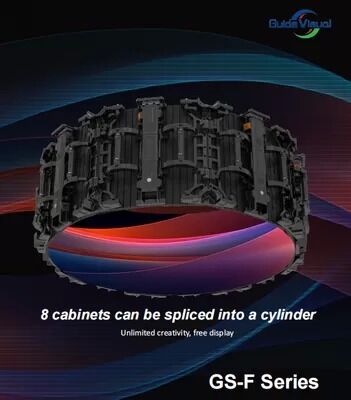

The curved locking system helps maintain alignment when building curved structures, while the right-angle configuration allows the display to form corners and more three-dimensional layouts.
This makes the same rental inventory suitable for a conventional stage backdrop one day and a more creative stage structure the next.
Caption: GS Series cabinets support flat, curved, arc and right-angle configurations for flexible stage design.
Rental equipment is handled differently from a permanent LED installation. Cabinets are stacked, transported, connected and dismantled again and again.
That is why the GS Series incorporates several rental-focused structural details.
The LED module uses an anti-collision PCB welding plate design, helping protect the LED surface during installation, stacking and transportation.
This design is particularly useful for rental companies where cabinets may go through many installation cycles.
The GS Series uses a hardwired connection structure for key internal connections rather than relying on conventional ribbon cables.
Fewer loose cable connections mean fewer things for technicians to check after repeated transportation and installation.

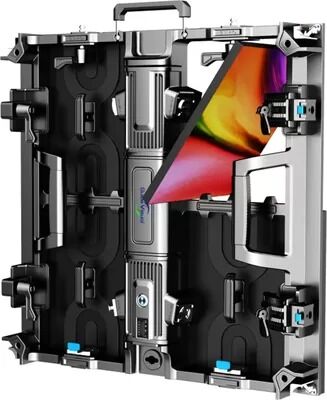

The cabinet supports front and rear maintenance, giving technicians greater flexibility when the installation environment makes rear access difficult.
The GS Series also uses a plug-and-play power box design, making power-related installation and servicing more convenient.
Its power equalization design is intended to provide consistent power distribution across the display.
Combined with the modular cabinet structure, this makes individual components easier to access when maintenance is required—without turning every service job into a complete cabinet teardown.
A rental LED screen spends a lot of time between venues.
GS cabinets are packed in specially designed flight cases to help reduce the risk of impact and damage during transportation, loading and unloading.
For rental companies moving equipment between cities or countries, proper packing is part of protecting the investment.
[IMAGE 2 — Flight Case & Transportation]
Caption: Specially designed flight cases help protect GS rental LED cabinets during transportation and repeated event deployment.
Image recommendation: Use an actual Guide Visual packing or shipment photo showing GS cabinets inside flight cases. A warehouse loading or shipping image is even better.
The GS Series is available in P2.604, P2.976, P3.91 and P4.81 pixel pitches.
This allows rental companies to choose the appropriate configuration according to viewing distance, content requirements, screen size and project budget.
Finer pixel pitches are suitable when the audience is closer to the display or when detailed content is important. Larger pitches can provide a more economical solution for bigger screens and longer viewing distances.
This gives rental companies room to build and expand their inventory according to actual project demand.

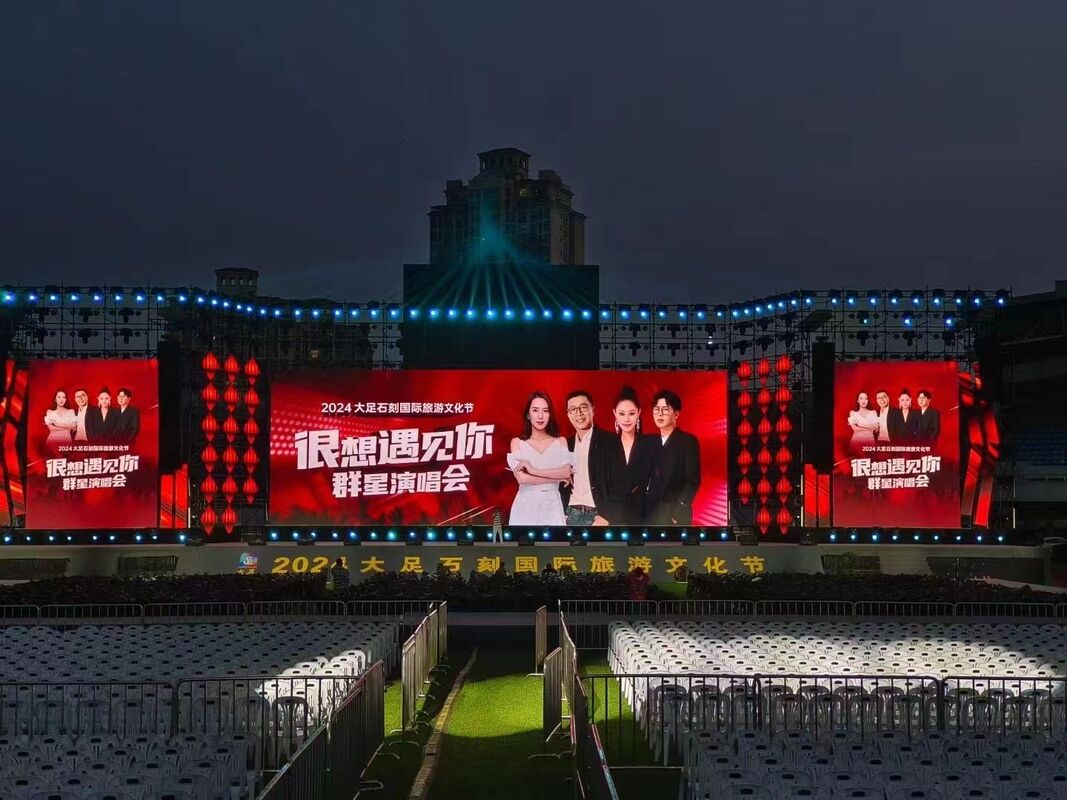

The GS Series can be used across a wide range of temporary and event-based applications:
The combination of different pixel pitches and cabinet sizes allows one product family to cover multiple event requirements.
| Parameter | P2.604 | P2.976 | P3.91 | P4.81 |
|---|---|---|---|---|
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Pitch | 2.604 mm | 2.976 mm | 3.91 mm | 4.81 mm |
| Pixel Density | 147,456 dots/m² | 112,896 dots/m² | 65,536 dots/m² | 43,264 dots/m² |
| Module Size | 250 * 250 mm | 250 * 250 mm | 250 * 250 mm | 250 * 250 mm |
| Module Resolution | 96 * 96 | 84 * 84 | 64 * 64 | 52 * 52 |
| Cabinet Size | 500 * 500 * 75 mm / 500 * 1000 * 75 mm | 500 * 500 * 75 mm / 500 * 1000 * 75 mm | 500 * 500 * 75 mm / 500 * 1000 * 75 mm | 500 * 500 * 75 mm / 500 * 1000 * 75 mm |
| Cabinet Weight | 6.8 / 11.8 kg | 6.8 / 11.8 kg | 6.8 / 11.8 kg | 6.8 / 11.8 kg |
| Refresh Rate | 3840 Hz | 7680 Hz | 7680 Hz | 7680 Hz |
| Brightness | 4500–5000 cd/m² | 4500–5000 cd/m² | 4500–5000 cd/m² | 4500–5000 cd/m² |
| Average Power | 300 W/m² | 300 W/m² | 300 W/m² | 300 W/m² |
| Driving Method | 1/16 scan | 1/12 scan | 1/16 scan | 1/13 scan |
| Viewing Angle | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Working Humidity | 10–60% RH | — | — | — |
| Working Temperature | -40°C to +40°C | — | — | — |
| Installation | Floor / Hanging / Arc / Special Shape / Right Angle | Floor / Hanging / Arc / Special Shape / Right Angle | Floor / Hanging / Arc / Special Shape / Right Angle | Floor / Hanging / Arc / Special Shape / Right Angle |
Note: Specifications may vary according to the selected configuration. Please contact Guide Visual for the latest technical datasheet before final project confirmation.
When a rental LED screen is used repeatedly, the purchase decision should not be based on pixel pitch alone.
Think about what happens between two events:
Transport → Setup → Operation → Dismantling → Maintenance → Packing → Next Event
Every stage puts demands on the equipment.
The GS Series addresses those daily rental requirements with:
6.8kg lightweight cabinet for easier handling
Quick-lock structure for efficient installation
Anti-collision protection for repeated handling
Hardwired internal connection for a cleaner connection structure
Front & rear maintenance for easier servicing
Curved and right-angle capability for creative stage designs
Flight-case packaging for safer transportation
That is what makes GS a practical platform for professional rental operations.
The GS Series is not designed around a single event.
It is designed for the next event, and the one after that.
Whether you are building your first rental LED inventory, replacing older cabinets or expanding an existing fleet, GS provides multiple pixel-pitch options within one rental-oriented platform.
Guide Visual can help you select the appropriate pixel pitch, cabinet quantity, screen configuration, control equipment and transportation solution according to your project.
We can also support:
Tell us your screen size, viewing distance and application. We’ll help you work out the right GS configuration for the project.
