Place of Origin:
China
Brand Name:
Guide Visual
Certification:
CCC CE FCC
Model Number:
G10
Video
Video
|
Key Features:
Led screen module parameter |
|||||||
| Item | Cargo description | |
|||||
| Module size | 250*250 mm | ||||||
| Module dots | 64*64 | ||||||
| Pixel pitch | 3.9mm | ||||||
| Led screen module parameter | |||||||
| Item | Cargo description |
|
|||||

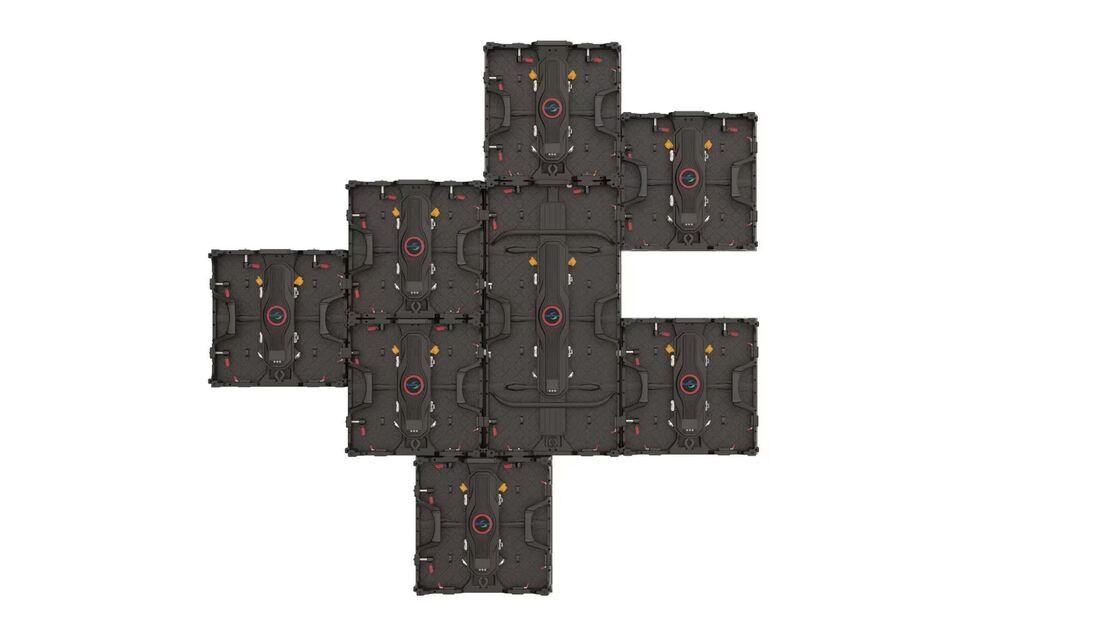

| Cabinet size | 500*1000mm | ||||||
| Cabinet dots | 128*256 | ||||||
| Cabinet material | die casting aluminum | ||||||
| Cabinet weight | 13kg | ||||||
| Led screen module parameter | |||||||
| Item | Specifications | ||||||
| Colour grayscale | 32 bit | ||||||
| Led chip | kinglight smd1415 black 3 in 1 | ||||||
| Gray scale per colour | 4096-65535 | ||||||
| Refresh rate | 7680 HZ | ||||||
| Driving type | 1/32 Scan | ||||||
| Signal transmission distance | Cats cable: <100m single mode fiber: < 10km | ||||||
| Brightness | 4500-5000 | ||||||
| Optimal horizontal viewing angle | 160° | ||||||
| Optimal vertical viewing angle | 160° | ||||||
| AC input voltage | AC 110 V | ||||||
| AC input frequency | 50/60 HZ | ||||||
| AC input power typical value | 250w/sqm | ||||||
| Storage temperature | From -25C° to 65C° | ||||||
| Work temperature | From -20C° to 50C° | ||||||
| IP rating | IP65 front/rear | ||||||
| Storage humidity | 10%-80% non -condensation RH | ||||||
| Working humidity | 10%-80% non -condensation RH | ||||||
| Video Signal Source | Cable TV, DVD, VCD, PC, rgbhv, YUV, YC, composite, video | ||||||
| Playback Mode | An alternate or arbitrary combination of video, animation, text information, etc | ||||||
| Image Regulation | White Balance/contrast/visual correction/backlight regulation/single module tuning brightness | ||||||
| Image Switching | VGA synchronous with the frame | ||||||
| Blind spot rate | <0.0001 (like a meta-failure rate/discrete state) | ||||||
| Signal processing capability | Not less than 10 bit | ||||||
| Lifetime Typical value | 100,000 Hr | ||||||
Two methods for set up
| Package for led display | |||||||
| Package is in the flight case for the led display, 6 pcs or 8 pcs can be put into 1 flight case,the flightcase colour can choose ( red ,black etc) |
The application for part of the led display
Why Choose Guide Visual G10
Factory-direct LEDsolution -backed by professional technical support, competitive price,and consistent quality assurance from Guide Visual.Professional factory support - direct price,stable quality
