Place of Origin:
Shenzhen,Guangdong,China
Brand Name:
Guide Visual
Certification:
CE，Rohs，CE，FCC
Model Number:
P3.91
G10 Series Outdoor Event LED Display
Designed for professional rental applications, the G10 series ensures fast setup, stable performance, and stunning visual impact.

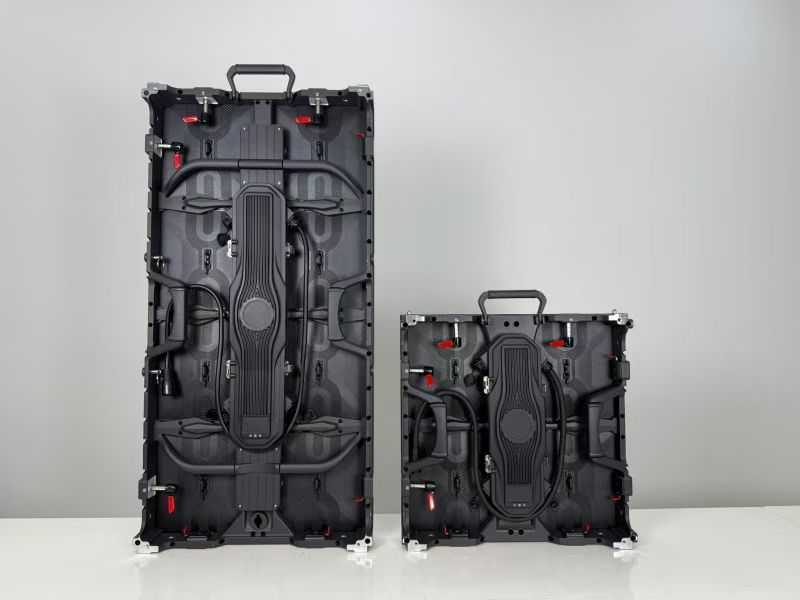

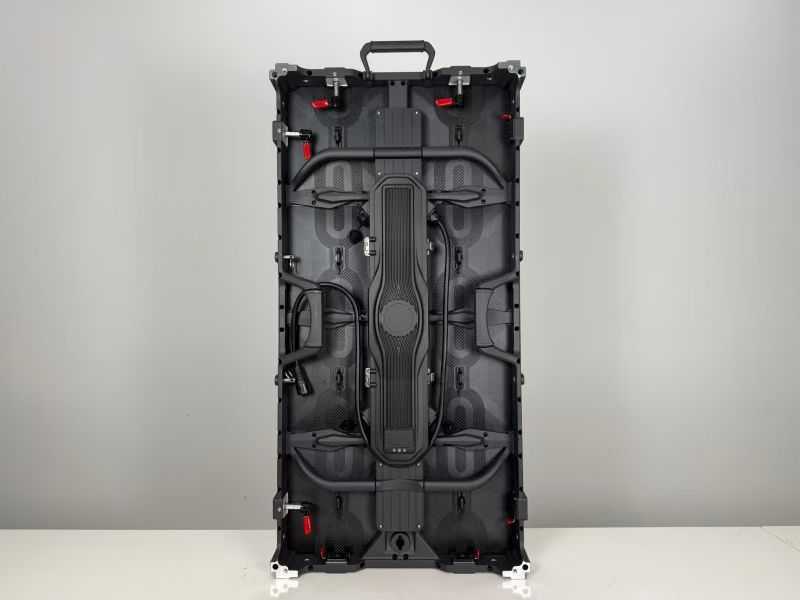

The cabinet adopts a fully hardwired internal structure, allowing the control box, hub board, receiving card, and LED modules to be quickly removed and replaced without extra tools.
Ideal for events requiring efficiency and reliability.
The G10 series is engineered for ease and speed. With its quick-locking system and integrated hardwired components, installation and disassembly become significantly faster. Whether you’re building or tearing down the stage, your team saves valuable time. For live events, stability is everything. Signal Redundancy Backup No black screens. No interruptions. No risks during critical moments. Available in 500x500mm (1.64x1.64 ft) and 500x1000mm (1.64x3.28 ft), the G10 series supports versatile assembly setups: Easily adapt to concerts, festivals, exhibitions, weddings, conferences, and more. We provide turnkey solutions to simplify your event setup: Stage trusses, rigging systems, hanging beams LED display video processors On-site installation guidance and remote technical support Your project, handled from start to finish, worry-free. Thanks to its high refresh rate, high grayscale, high contrast, and lightweight die-casting aluminum structure, the G10 series excels in:
1. Fast Installation & Tool-Free Maintenance
ModelModel
P2.604P2.604
P2.976P2.976
P3.91P3.91
P4.81P4.81
LED Type
SMD1415
SMD1415
SMD1921
SMD1921
Pixel Pitch (mm)
2.604
2.976
3.91
4.81
Pixel Density (dots/m)
147,456
112,896
65,536
43,264
Module Size (mm)
250*250
250*250
250*250
250*250
Module Resolution (dots)
96*96
84*84
64*64
52*52
Cabinet Size (mm)
500*500*75
500*500*75
500*500*75
500*500*75
500*1000*75
500*1000*75
500*1000*75
500*1000*75
Cabinet Weight (KGs)
7.5/12.5
7.5/12.5
7.5/12.5
7.5/12.5
Refresh Rate (HZ)
3840
7680
7680
7680
Brightness (CD/m)
4500-5000cd
4500-5000
4500-5000
4500-5000
Average Power (W/m)
250
250
250
250
Driving Method
l/16s
l/14s
l/16s
l/13s
Viewing Angles (H/V)
160°/160°
160°/160°
160°/160°
160°/160°
IP rate
IP65
IP65
IP65
IP65
Working Humidity (RH)
10%-90%
Working Temperature (°C)
-40°C ~ +40°C
Installation Types
Sitting/Floor/Lifting/Arc/Special-shaped/Right Angle
2. Power & Signal Dual Backup for Uninterrupted Performance
The G10 series provides:
If one power source fails, the backup takes over instantly, ensuring the display stays lit.
Dual signal interfaces guarantee continuous data transmission even if one signal path is disrupted.3. Flexible Cabinet Sizes for Creative Configurations
4. One-Stop Rental Event Support

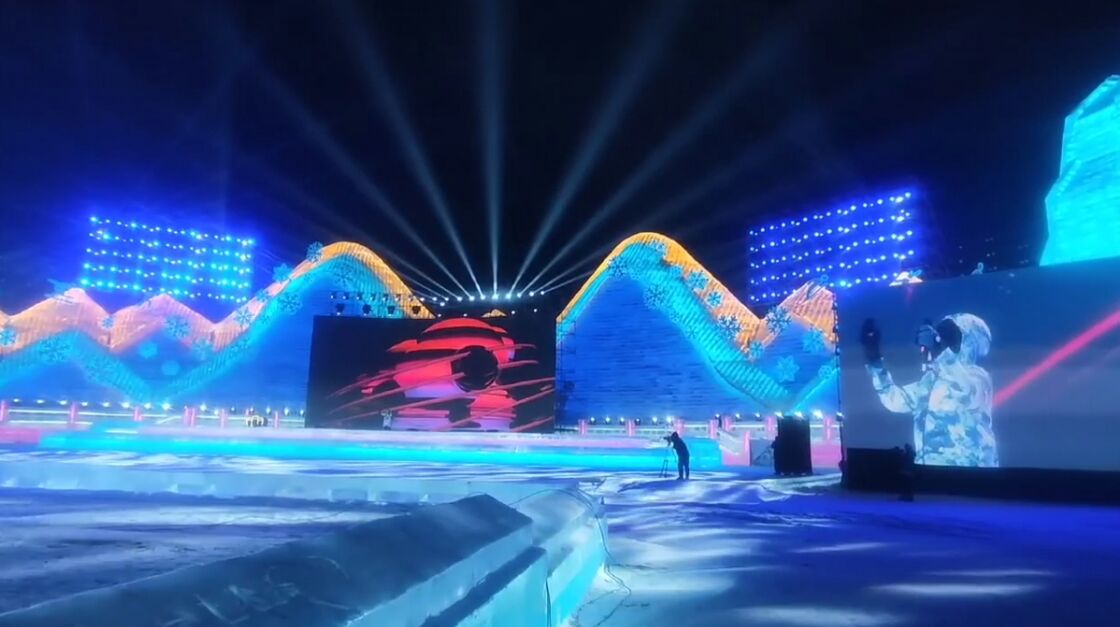

5. Multiple Applications
The vivid image performance ensures every audience sees the full brilliance of your show.
Feature
Benefit
Fast Installation
Save setup time & reduce labor cost
Power & Signal Double Backup
Ensure nonstop performance
Two Cabinet Sizes
Flexible for any stage design
Lightweight Die-Casting Aluminum
Easy to transport and hang
High Refresh & High Grayscale
Clear and vibrant visual presentation
One-Stop Service
Complete equipment & support included
