Place of Origin:
China
Brand Name:
Guide VIsual
Certification:
CCC CE FCC ROSH
Model Number:
LED

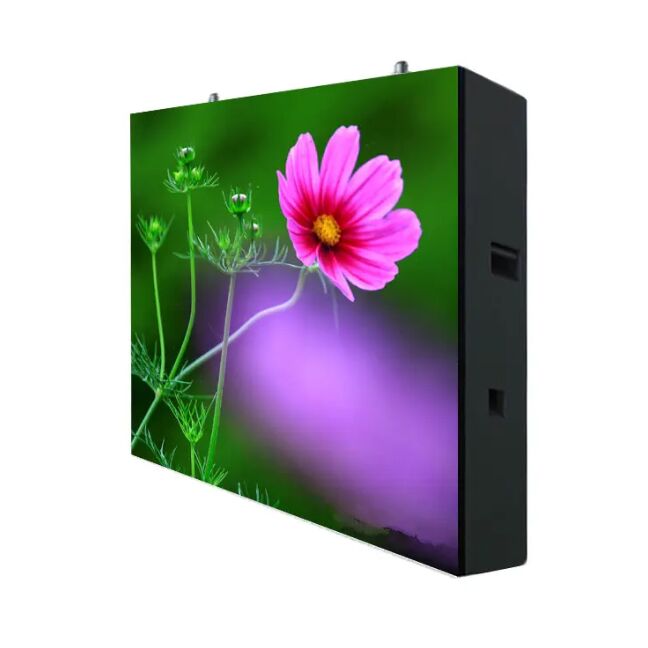

P2.5 Outdoor Fixed LED Display Screen — 5000nits IP65 Waterproof, 3840Hz High Refresh, Front & Rear Maintenance
Clearly visible under direct sunlight, in any weather condition. Engineered for outdoor environments where standard displays fail.
Flicker-free display performance — ideal for broadcast, photography, and video recording environments. No banding, no distortion under camera.

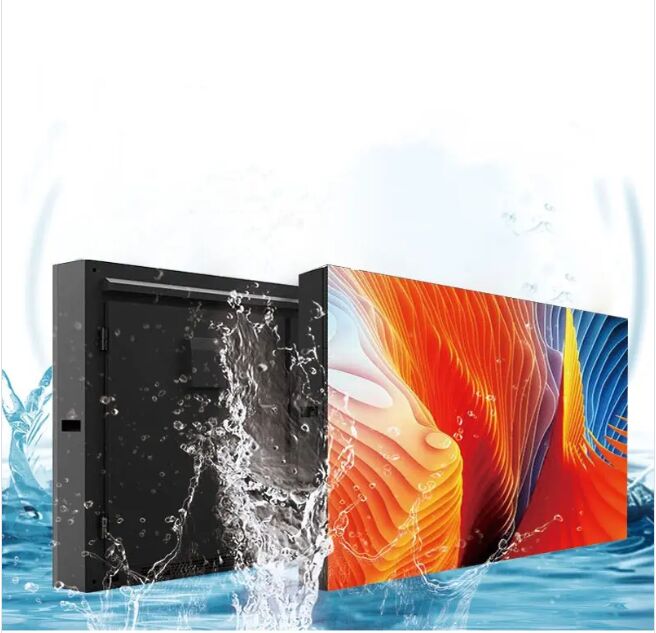

Fully sealed against dust ingress and high-pressure water jets. Designed to operate continuously in rain, humidity, and extreme temperatures from -20°C to +60°C.
Steel cabinet: cost-effective, high structural strength, ideal for large-scale billboard and building facade projects. Die-cast aluminum cabinet: lighter weight, superior heat dissipation, precision-formed edges for seamless tiling — preferred for high-end permanent installations.

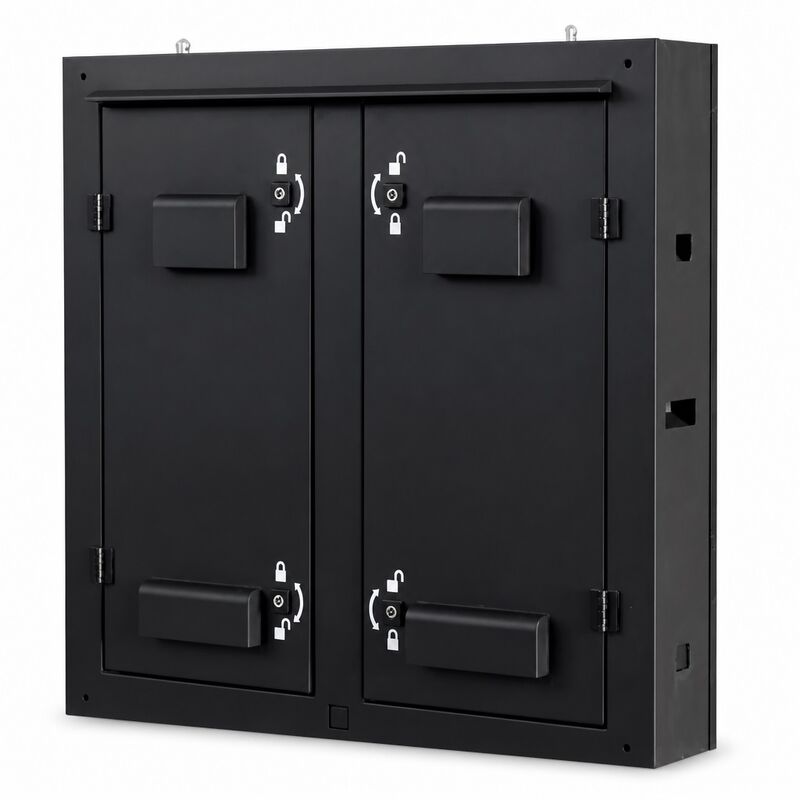

Front maintenance: modules and power supplies accessible from the front face — essential for wall-mounted or embedded installations with no rear access. Rear maintenance: full back-panel access — standard for freestanding structures, billboard frames, and rooftop installations with service walkways.
|
Pixel Pitch |
2.5mm |
|
Pixel density(dots/㎡) |
160000 |
|
LED configuration |
1R1G1B |
|
SMD1415 Outdoor |
|
|
Module size |
320(W)*160(H)/160(W)*160(H) |
|
Cabinet size |
customized |
|
LED control system |
NOVA |
|
Refresh rate(Hz) |
≥3840Hz |
|
Grey scale |
14bit |
|
Power supply |
AC110V-220V |
|
Average Power consumption |
<280W/㎡ |
|
Maximum power consumption |
<800W/㎡ |
|
Module voltage |
DC4.2V-5V |
|
Input Voltage |
AC220±20%(V)-50/60Hz |
|
Cabinet material |
Outdoor Iron Cabinet |
|
Cabinet weight(kg/㎡) |
≤40kg/㎡ |
|
Scanning Method |
1\16/Scanning Constant Current |
|
Color Temperature |
6500K±500 |
|
Brightness |
≤5500cd/(adjustable) |
|
Brightness Control |
Auto-adjusting 0-100 levels |
|
Color temperature |
5500K-9300K |
|
The best Viewing distance |
2.5M-20M |
|
Viewing Angle |
(H)160°/(V)140° |
|
Working temperature/humidity |
-20℃～+60℃ |
|
Working temperature/humidity |
10%-95% |
|
Control Method |
Synchronized |
|
Lifetime |
＞100,000 hours |
|
IP rating |
IP65 |
Outdoor Application Scenarios
Built for 24/7 Performance in Any Outdoor Environment.
Commercial Facades & Corner Displays
Shopping malls, retail plazas, and 90° curved building corners — 6,000 nits high brightness attracts maximum foot traffic in direct sunlight.

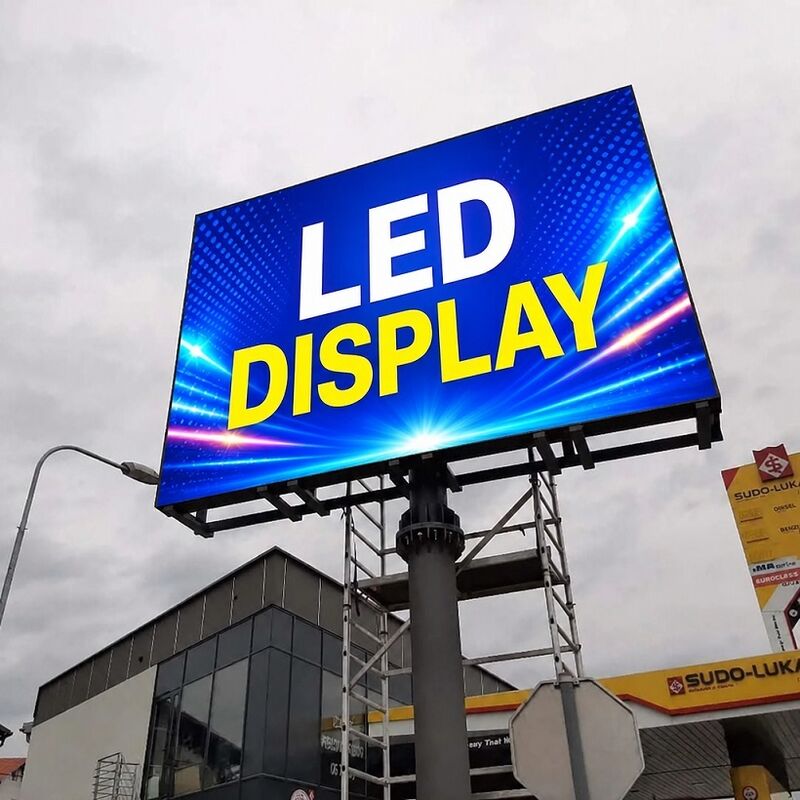

Digital Billboards & Highway Unipoles
Roadside advertising and highway totems — IP65 weather-sealed against heavy rain, dust, and extreme temperatures (-20°C to +60°C).
Stadiums & Sports Arenas
Outdoor scoreboards and perimeter boards — 3,840Hz high refresh rate ensures flicker-free live camera broadcast.
Transit Hubs & Public Plazas
Airports, train stations, parks, and city squares — wide viewing angles (140°/140°) provide clear visibility for large crowds.
Q: What is the difference between front maintenance and rear maintenance?
A: Front maintenance allows all components to be accessed and replaced from the screen face — essential when the back of the screen is inaccessible (wall-mounted, embedded installations). Rear maintenance requires access from behind the screen — suitable for billboard structures and freestanding frames with rear service access. We supply both configurations; please specify when requesting a quote.
Q: Which cabinet should I choose — steel or die-cast aluminum?
A: Steel cabinets offer higher structural strength and lower cost — ideal for large billboard projects. Die-cast aluminum cabinets are lighter, have better heat dissipation, and provide tighter panel gaps — preferred for architectural facades and premium installations. Both are available across all pixel pitches.
Q: Is the screen visible in direct sunlight?
A: Yes. Our outdoor series operates at 5000–6000 nits brightness, which is sufficient for full visibility in direct sunlight. For extremely high-ambient environments, we recommend the 6000 nit configuration.
Q: What pixel pitch should I choose for my project?
A: Pixel pitch selection depends on viewing distance. General guideline:
P2.5–P3: viewing distance 5–15m (close-range, high-detail content)
P4–P5: viewing distance 10–25m (retail exteriors, transit hubs)
P6–P6.67: viewing distance 15–40m (roadside billboards, stadiums)
P8: viewing distance 20–60m+ (large format highway billboards)
Q: Can you support DDP delivery to my country?
A: Yes. DDP (Delivered Duty Paid) is available for most countries — we handle all freight, customs clearance, and import duties. Please provide your destination country when requesting a quote.
