Place of Origin:
China
Brand Name:
Guide VIsual
Certification:
CCC CE FCC ROSH
Model Number:
LED
P3 Outdoor Fixed LED Display Screen 6500nits IP65 Weatherproof Digital Billboard Sign Wall
Clearly visible under direct sunlight, in any weather condition. Engineered for outdoor environments where standard displays fail.
Flicker-free display performance — ideal for broadcast, photography, and video recording environments. No banding, no distortion under camera.
Fully sealed against dust ingress and high-pressure water jets. Designed to operate continuously in rain, humidity, and extreme temperatures from -20°C to +60°C.

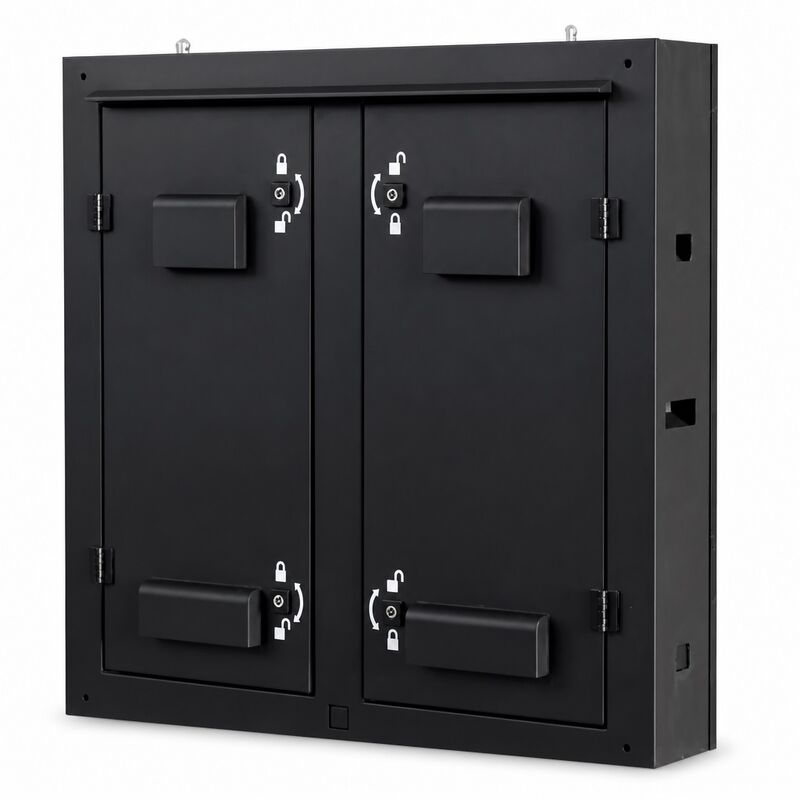

Steel cabinet: cost-effective, high structural strength, ideal for large-scale billboard and building facade projects. Die-cast aluminum cabinet: lighter weight, superior heat dissipation, precision-formed edges for seamless tiling — preferred for high-end permanent installations.
Front maintenance: modules and power supplies accessible from the front face — essential for wall-mounted or embedded installations with no rear access. Rear maintenance: full back-panel access — standard for freestanding structures, billboard frames, and rooftop installations with service walkways.
| Specification | Parameter |
|---|---|
| Pixel Pitch | 3mm |
| Pixel density(dots/㎡) | 111111 |
| LED configuration | 1R1G1B |
| SMD1415 Outdoor | |
| Module size | 192(W)*192(H) |
| Cabinet size | customized |
| LED control system | NOVA |
| Refresh rate(Hz) | ≥3840Hz |
| Grey scale | 14bit |
| Power supply | AC110V-220V |
| Average Power consumption | <280W/㎡ |
| Maximum power consumption | <800W/㎡ |
| Module voltage | DC4.2V-5V |
| Input Voltage | AC220±20%(V)-50/60Hz |
| Cabinet material | Outdoor Iron Cabinet |
| Cabinet weight(kg/㎡) | ≤40kg/㎡ |
| Scanning Method | 1\16/Scanning Constant Current |
| Color Temperature | 6500K±500 |
| Brightness | ≤5500cd/(adjustable) |
| Brightness Control | Auto-adjusting 0-100 levels |
| Color temperature | 5500K-9300K |
| The best Viewing distance | 3M-20M |
| Viewing Angle | (H)160°/(V)140° |
| Working temperature/humidity | -20℃～+60℃ |
| Working temperature/humidity | 10%-95% |
| Control Method | Synchronized |
| Lifetime | ＞100,000 hours |
| IP rating | IP65 |
Outdoor Application Scenarios

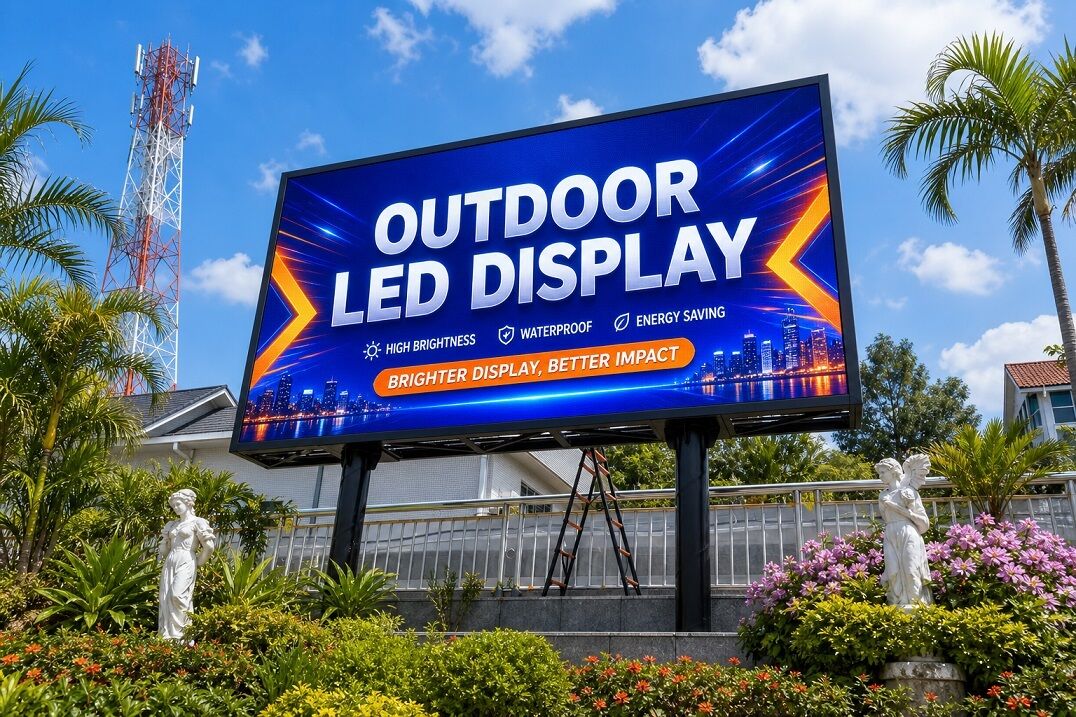

Commercial Advertising – Digital billboards, roadside advertising, shopping centers and retail buildings.
Building Facades – Large-format LED displays installed on commercial buildings, hotels and landmark properties.
Sports Stadiums – Live video, scores, advertisements and event information for outdoor sports venues.
Transportation Hubs – Passenger information, advertisements and public announcements at airports, stations and terminals.
Public Squares & City Centers – News, event information, advertising and large-scale public displays.
Corporate & Government Buildings – Company information, announcements and digital communication.
Education & Institutions – Outdoor information displays for schools, universities and other public facilities.
Q: What is the difference between front maintenance and rear maintenance?
A: Front maintenance allows all components to be accessed and replaced from the screen face — essential when the back of the screen is inaccessible (wall-mounted, embedded installations). Rear maintenance requires access from behind the screen — suitable for billboard structures and freestanding frames with rear service access. We supply both configurations; please specify when requesting a quote.
Q: Which cabinet should I choose — steel or die-cast aluminum?
A: Steel cabinets offer higher structural strength and lower cost — ideal for large billboard projects. Die-cast aluminum cabinets are lighter, have better heat dissipation, and provide tighter panel gaps — preferred for architectural facades and premium installations. Both are available across all pixel pitches.
Q: Is the screen visible in direct sunlight?
A: Yes. Our outdoor series operates at 5000–6000 nits brightness, which is sufficient for full visibility in direct sunlight. For extremely high-ambient environments, we recommend the 6000 nit configuration.
Q: What pixel pitch should I choose for my project?
A: Pixel pitch selection depends on viewing distance. General guideline:
P2.5–P3: viewing distance 5–15m (close-range, high-detail content)
P4–P5: viewing distance 10–25m (retail exteriors, transit hubs)
P6–P6.67: viewing distance 15–40m (roadside billboards, stadiums)
P8: viewing distance 20–60m+ (large format highway billboards)
Q: Can you support DDP delivery to my country?
A: Yes. DDP (Delivered Duty Paid) is available for most countries — we handle all freight, customs clearance, and import duties. Please provide your destination country when requesting a quote.
