Place of Origin:
Shenzhen,Guangdong,China
Brand Name:
Guide Visual
Certification:
CE，Rohs，CE，FCC
Model Number:
G10
WHY CHOOSE US?
Our Solution: “Live Event Stability System" We design our rental LED screen to ensure zero interruption during live shows.
IP65 Waterproof – Rain or shine, your show goes on. Fully dust tight and jet water resistant. Zero weather related downtime.
Sunlight Visible Brightness – 5000cd high-brightness LEDs ensure content stays vivid under direct sun. No washed out images.
Quick Lock System – Tool free assembly. One person, minutes. Less labor, faster setup on site.

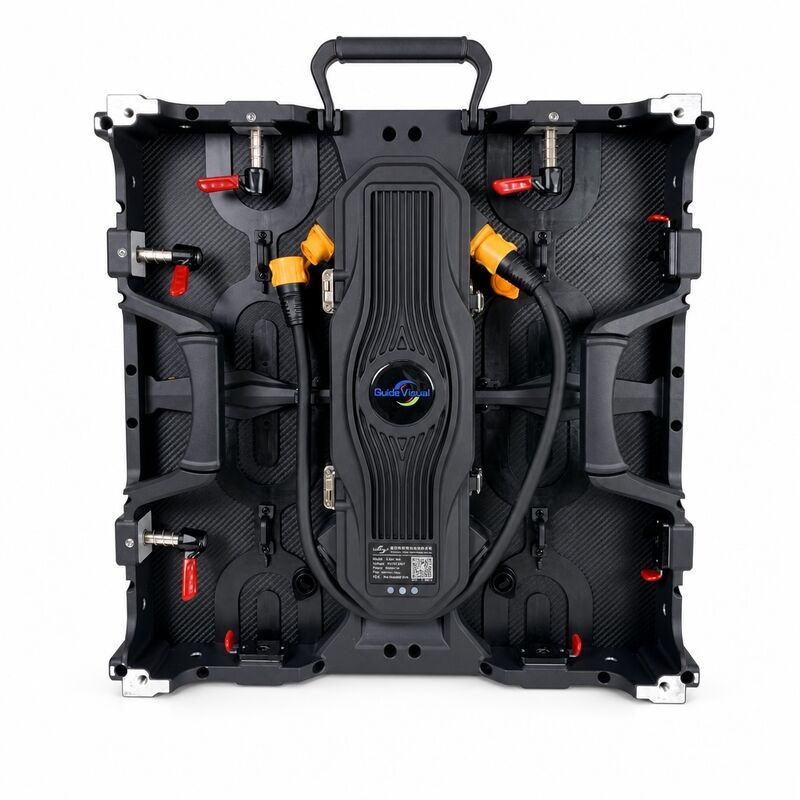

HUB Board Connection – Direct board-to-board link with zero ribbon cables. Minimal wiring, cleaner structure, fewer failure points on the road.
| Operating environment | Outdoor | |||
|---|---|---|---|---|
| Model | P2.6 | P2.9 | P3.91 | P4.81 |
| Pixel pitch(mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Pixel density (dots/m²) | 147,456 | 112,896 | 65,536 | 43,264 |
| Scan mode | 1/16 1/24 | 1/21 | 1/16 | 1/13 |
| LED type | SMD1515 | SMD1515 | SMD1921 | SMD1921 |
| Module size (mm) | 250 x 250 | |||
| Module resolution(dots) | 96x96 | 84x84 | 64x64 | 52x52 |

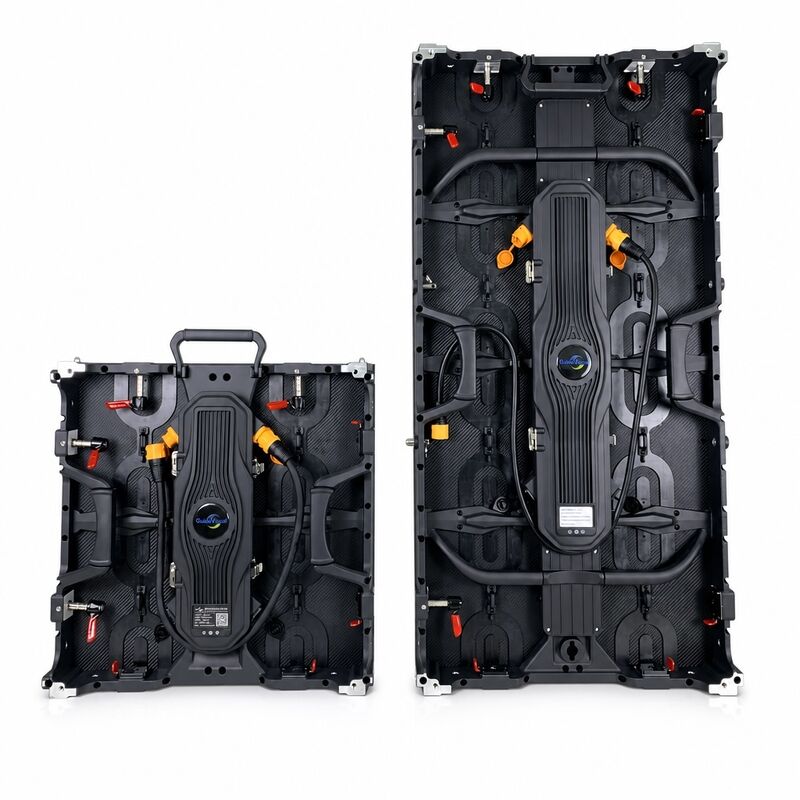

| Cabinet size(mm) | 500x500x75/500x1000x75 | |||
| Cabinet weight(kg/pc) | 7.5/12.5 | |||
| Cabinet material | Die-casting Aluminum | |||
| Service | Rear Maintenance/Front Maintenance | |||
| Brightness(cd/m²) | 3500-5000 | |||
| Refresh rate (Hz) | 3840-7680 | |||
| Gray scale (bit) | 14-16 | |||
| Avg. Power(W/m²) | 400 | |||
| Max. Power(W/m²) | 800 | |||
| Protection Rating | Front Maintenance Cabinet: IP54 Rear Maintenance Cabinet: IP65 |
|||
| Viewing angle(°) | 140°/140° | |||
| Contrast | 3000:1 | |||
| Life time(hours) | 100,000 hours | |||
| Operating temperature(℃) | -10℃~+45℃ |
|---|---|
| Operating humidity(RH) | 10~80%RH |
Flexible control – HDMI, SDI, USB, WiFi, or 4G. Compatible with NovaStar, synchronous or asynchronous playback.
Two professional setup solutions – truss hanging for large venues, ground stacking for festivals and exhibitions.
From KOBA exhibitions to youth festivals and community cinemas, Guide Visual's GS Series has been deployed across 40+ countries and trusted by 300+ event companies.
These aren't just installations – they're partnerships. Each project represents a production team that chose Guide Visual for its reliability, service, and professional-grade performance.
Rental equipment spends a significant part of its life in transit. Our flight cases are engineered to prevent physical shock damage during road, sea, or air freight.
From world class concerts to international exhibitions, Guide Visual delivers.
