GS Series P3.91 Indoor & Outdoor LED Display
Professional rental LED screen solution designed for both indoor and outdoor applications with balanced pixel pitch for sharp visuals in concerts, events, exhibitions, and stage productions.
Cost-Effective Operation Features
- Power backup & dual signal system eliminates black screen and blackout risks
- 7680Hz refresh with Nova control for broadcast and live events
- Die-casting aluminum rental cabinets with anti-collision protection
- Hard-wired HUB design reduces maintenance costs and extends lifespan
- Private-mold design for safer, stronger, lighter construction with better cooling
Comprehensive After-Sales Support
- 24/7 technical support with fast response times
- Reliable spare parts supply for zero downtime
- Complete manuals, videos, and training materials
- Professional training for technical teams
- Built-in risk control with power backup & dual signal system
- 3-year warranty with lifetime technical support
The GS Series P3.91 LED display delivers exceptional performance for rental applications including LED video walls, stage displays, and event screen rentals. Its modular structure enables fast setup for large display screens, making it ideal for high-frequency rental use.
To ensure maximum stability during live events, the GS Series features a power redundancy system and dual signal backup design. Each cabinet operates independently with internal shared-load power design, preventing single cabinet failures from causing black screens or system reboots. With four RJ45 ports per cabinet, signal routing becomes flexible and secure, enabling quick manual backup when needed.

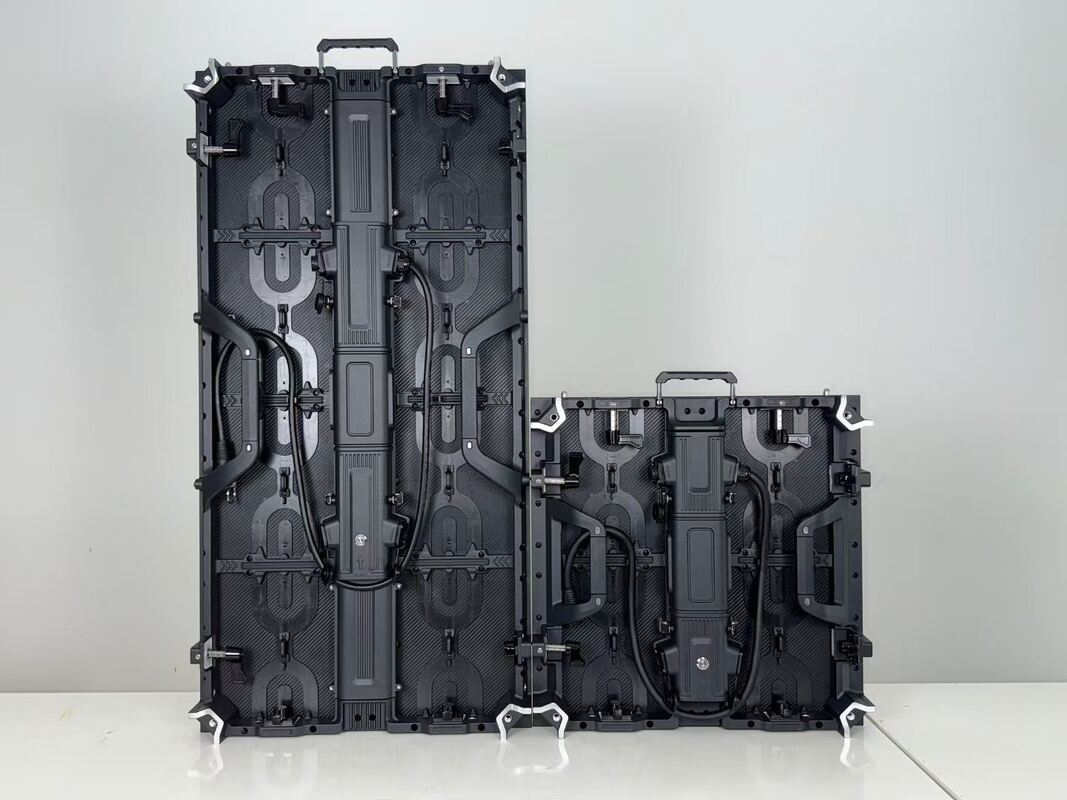

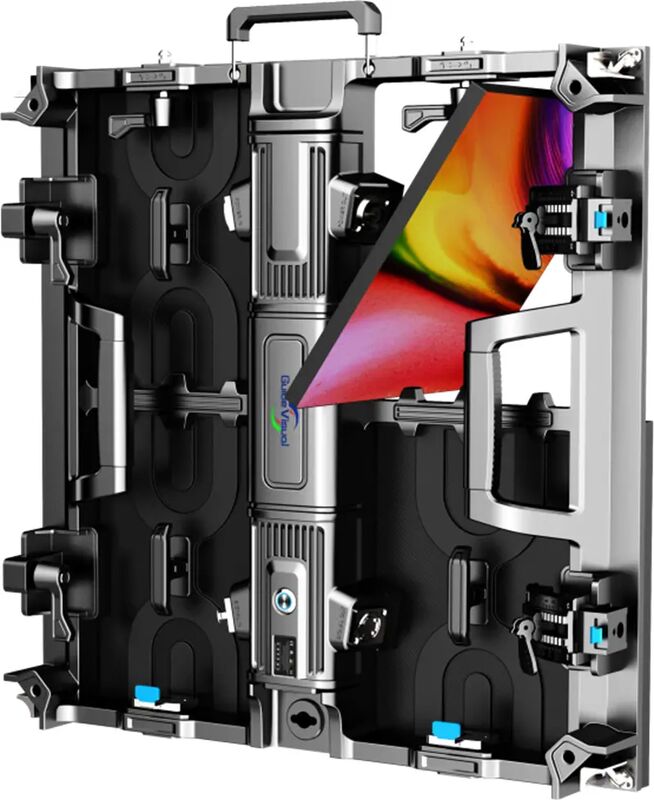

Built specifically for rental environments, the GS Series adopts high-end cast-aluminum rental cabinets with anti-collision module surfaces. Protective glue on LED modules provides strong impact resistance, reducing damage during transport and installation. Combined with hard-wired HUB design, maintenance time is minimized while lifespan is extended.
With a 7680Hz refresh rate and Nova control system, the GS Series delivers flicker-free performance for broadcasting, filming, and high-end productions. It supports applications ranging from LED advertising billboard displays to outdoor LED video walls and indoor LED panels.
Guide Visual - Designed for Flawless Performances. Built for Rental Reality.
Professional Installation

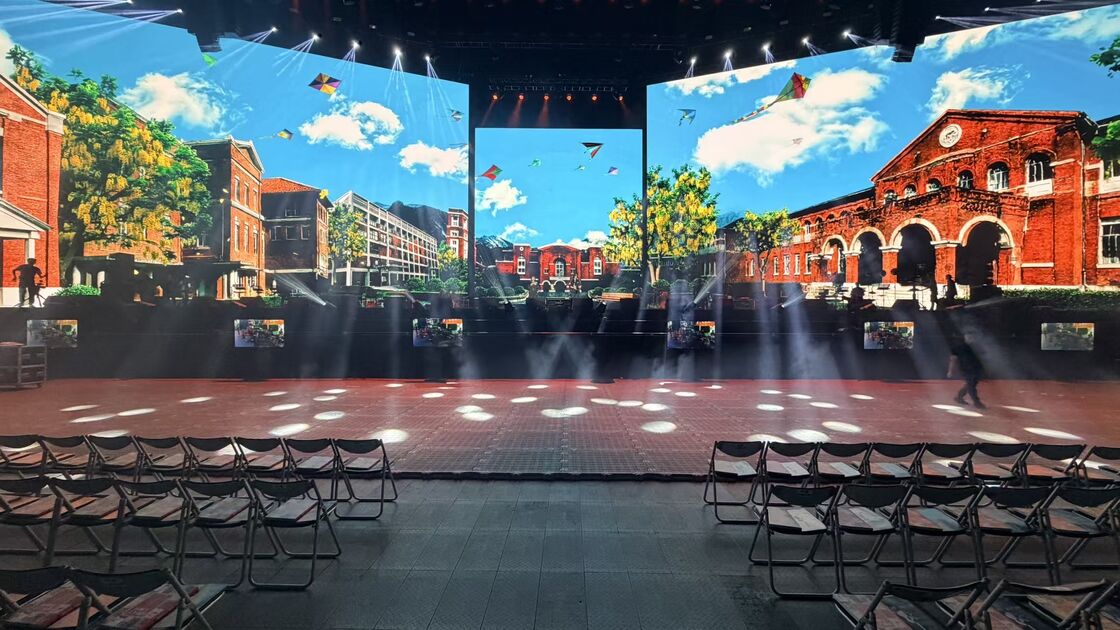

Application Scenarios
Product Accessories
Product Specifications
| Model No. |
GS2.6 |
GS2.9 |
GS3.9 |
GS4.81 |
| Pixel Pitch |
2.6mm |
2.9mm |
3.9mm |
3.9mm |
| LED Type |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
| Packaging Technology |
SMD |
SMD |
SMD |
SMD |
| Pixel Density |
148225 pixel/㎡ |
119025 pixel/㎡ |
65536 pixel/㎡ |
43264 pixel/㎡ |
| Panel Dimension |
500mm*1000mm*75mm
500mm*500mm*75mm |
500mm*1000mm*75mm
500mm*500mm*75mm |
500mm*1000mm*75mm
500mm*500mm*75mm |
500mm*1000mm*5mm
500mm*500mm*75mm |
| Receive Card |
Nova A5 Pro |
Nova A5 Pro |
Nova A5 Pro |
Nova A5 Pro |
| Scan Rate |
Indoor:32
Outdoor:16 |
Indoor:32
Outdoor:14 |
Indoor:16
Outdoor:16 |
Indoor:16
Outdoor:13 |
| Brightness |
Indoor:600-1000 nits
Outdoor:4500-5000 nits
Support customized brightness |
Indoor:600-1000 nits
Outdoor:4500-5000 nits
Support customized brightness |
Indoor:600-1000 nits
Outdoor:4500-5000 nits
Support customized brightness |
Indoor:600-1000 nits
Outdoor:4500-5000 nits
Support customized brightness |
| Refresh Rate |
7680Hz |
| Gray Scale |
16Bit |
| Color Temperature |
6500-9500K |
| Panel Weight |
500mm*500mm*75mm(6.5kg/panel)
500mm*1000mm*75mm(11.5kg/panel) |
| Panel Material |
Die-Casting Aluminum |
| Max. Power Consumption |
650w/sqm |
| Ave. Power Consumption |
250w/sqm |
| Viewing Angle |
H:160°/V:140° |
| Working Voltage |
AC200-240V~50/60Hz or AC100-240V~50/60Hz |
| IP Rating |
Front IP65, Rear IP65 |
| Maintenance |
Rear |
| Curve |
Curved cabinet/45° beveled cabinet(±10° curved lock):-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°
90° lock or 90° connector plate can do vertical splicing. |
| Operating Temp/Humidity |
-40℃~+60℃; 10%~60%RH |
| Storage Temp/Humidity |
-40℃~+60℃; 10%~60%RH |
| Control System |
Novastar |
| Product Certification |
CE/EMC/RoHS/LVD |
Secure Packaging Solutions
Flightcase for 500*500mm cabinets
Flightcase for 500*1000mm cabinets
About Guide Visual
Guide Visual is a China-based manufacturer of LED Video Displays for virtually any event or application. We offer high resolution, high brightness, indoor and outdoor LED displays including event and stage LED displays, foldable LED displays, and transparent LED displays.
Founded in 2011, we have a full-time staff of dedicated production professionals to ensure your success. "Quality is our culture" - 90% of our LED display production equipment is imported from Japan and Germany. "With us your money is safe" - full refund in case of bad quality. We have a professional team that can deliver excellent quality in short time. Our goal is to maintain complete customer satisfaction, identify your business needs, and provide fast delivery.
We offer reliable service at an affordable price, extraordinary products and personalized attention to all our clients. Our factory can cooperate with customers to design LED display programs and provide installation drawings. CAD models can be offered for checking. Dynamic effect drawings can be sent before order confirmation. For special projects, our engineers can visit your location for assessment.
