Place of Origin:
China
Brand Name:
Guide Visual
Certification:
CCC CE FCC
Model Number:
GS
Video
Video
| Module Size | 250 × 250 mm |
| Module Dots | 64 × 64 |
| Pixel Pitch | 3.9mm |
| Cabinet Size | 500 × 1000mm |
| Cabinet Dots | 128 × 256 |

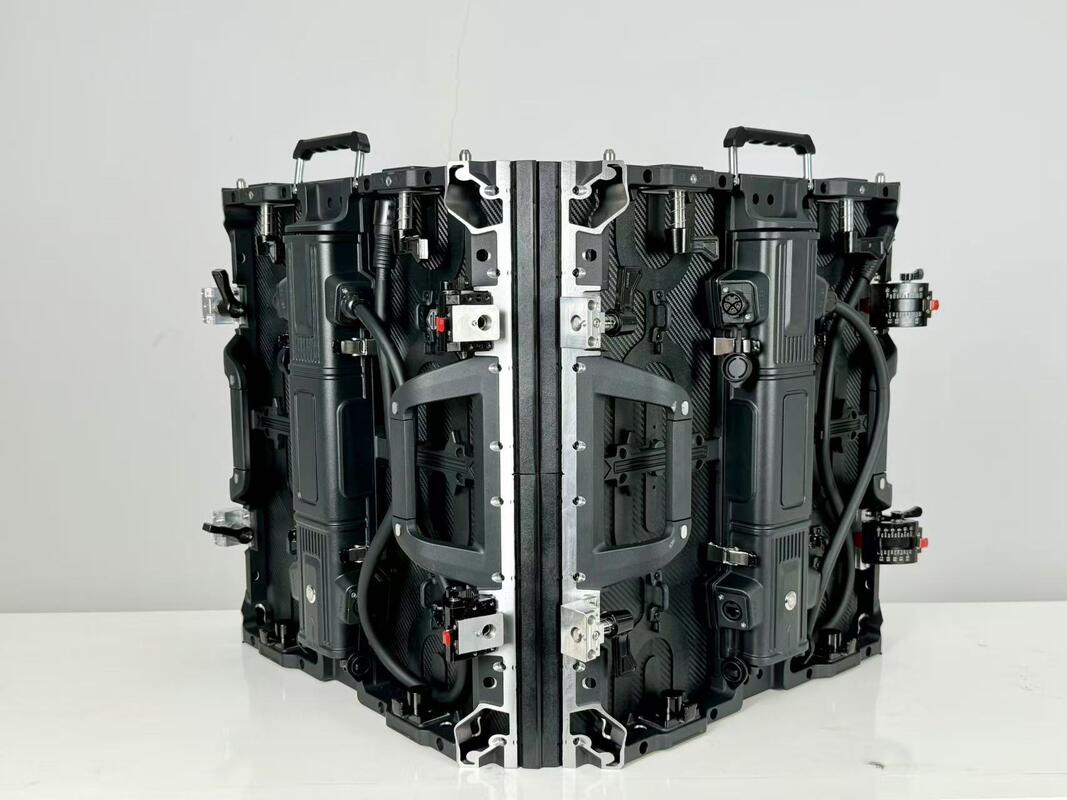

| Cabinet Material | Die Casting Aluminum |
| Cabinet Weight | 13kg |
| Color Grayscale | 32 bit |
| LED Chip | Kinglight SMD1415 Black 3 in 1 |
| Gray Scale per Color | 4096-65535 |
| Refresh Rate | 7680 Hz |
| Driving Type | 1/32 Scan |
| Signal Transmission Distance | CATS Cable: <100m, Single Mode Fiber: <10km |
| Brightness | 4500-5000 nits |
| Optimal Horizontal Viewing Angle | 160° |
| Optimal Vertical Viewing Angle | 160° |
| AC Input Voltage | AC 110V |
| AC Input Frequency | 50/60 Hz |
| AC Input Power Typical Value | 250W/sqm |
| Storage Temperature | -25°C to 65°C |
| Work Temperature | -20°C to 50°C |
| IP Rating | IP65 Front/Rear |
| Storage Humidity | 10%-80% non-condensation RH |
| Working Humidity | 10%-80% non-condensation RH |
| Video Signal Source | Cable TV, DVD, VCD, PC, RGBHV, YUV, YC, Composite Video |
| Playback Mode | Alternate or arbitrary combination of video, animation, text information |
| Image Regulation | White Balance/Contrast/Visual Correction/Backlight Regulation/Single Module Tuning Brightness |
| Image Switching | VGA Synchronous with the Frame |
| Blind Spot Rate | <0.0001 |
| Signal Processing Capability | Not less than 10 bit |
| Lifetime Typical Value | 100,000 Hours |
