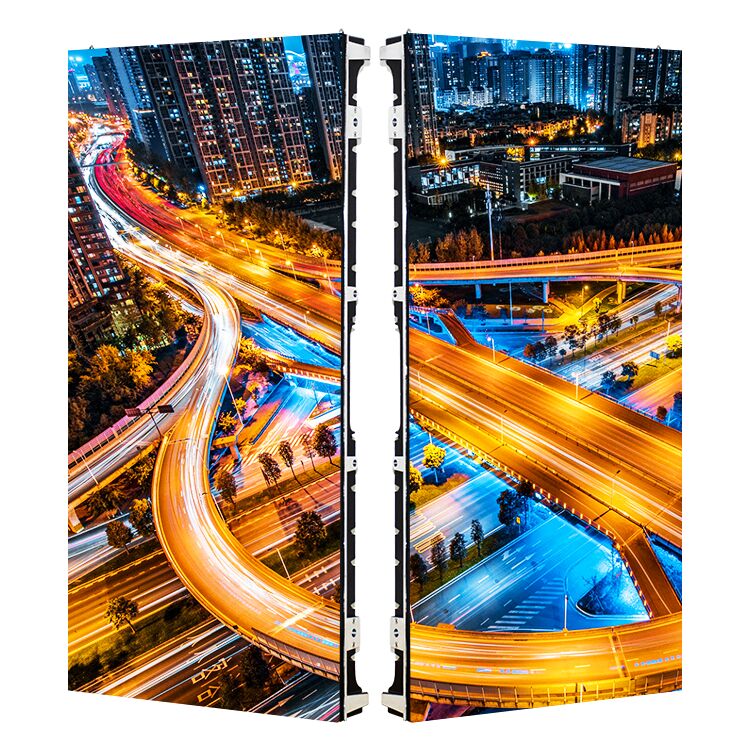

7680Hz Refresh Rate IP65 Waterproof Die-cast Aluminum LED Video Wall for Rental and Events

LED video wall display high brightness

GS rental LED signal backup

concert emergency ready LED display

Place of Origin:

China

Brand Name:

Guide Visual

Certification:

CCC CE FCC

Model Number:

Chat Now

Request A Quote

Product Details

LED Type:

SMD1912

Module Size:

250*250mm

Cabinet Size:

500*500mm OR 1000*1000mm

Driving Method:

1/28s

IP Rating:

IP65

Refresh Rate:

7680Hz

Cabinet Material:

Die-cast Aluminum

IP Rate:

Input Voltage:

AC 110-220V

Power Consumption:

Max 800W/sqm

Gray Scale:

16 Bit

Warranty:

2years

Highlight:

LED video wall display high brightness

GS rental LED signal backup

concert emergency ready LED display

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Flight Case

Delivery Time

15 days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

3000 per square meters

Less Maintenance Durable P2.6 Indoor LED Panels Wall for Event Rental, Exhibition & Conference Background

Chat Now

Video

7680Hz Refresh Rate IP65 Waterproof LED Video Wall with Die-cast Aluminum Cabinet for Outdoor Display

Chat Now

Video

GS Series LED Video Wall with 7680Hz Refresh Rate IP65 Waterproof Die-cast Aluminum Cabinet for Rental Events

Chat Now

Video

Customizable GS Rental LED Video Wall Display with 7680Hz High Refresh Rate Dual Power & Signal Backup IP65 Waterproof Design

Chat Now

86--18220591195

sales@sqleddisplay.com

Chat Now

Product Description

High Brightness Guide Visual GS Rental LED Pallata 7680Hz Signal Backup Emergency Ready Concert

Product Overview

Professional rental LED display with high refresh rate and dual backup systems for reliable performance in demanding event environments.

Key Features

7680Hz high refresh rate for ultra-smooth, flicker-free visuals, perfect for live broadcasts and professional events
Dual power & signal backup to ensure stable performance without blackouts
Lightweight and durable cabinet with quick-lock system for fast installation and dismantling
Front and rear maintenance design for flexible setup and easy servicing
Seamless splicing and excellent color uniformity for stunning visual experience
Hard Link connection system for stronger panel stability, better alignment, and zero signal delay
Equipped with Nova A5plus control system for superior image processing and accurate color reproduction
Modular design for easy replacement and efficient maintenance
High brightness and waterproof design, ideal for both indoor and outdoor rental applications

LED Screen Module Specifications

Item	Specifications
Module Size	250 × 250 mm
Module Dots	64 × 64
Pixel Pitch	3.9mm

Item	Specifications
Cabinet Size	500 × 1000mm
Cabinet Dots	128 × 256
Cabinet Material	Die Casting Aluminum
Cabinet Weight	13kg

Item	Specifications
Color Grayscale	32 bit
LED Chip	Kinglight SMD1415 Black 3 in 1
Gray Scale per Color	4096-65535
Refresh Rate	7680 Hz
Driving Type	1/32 Scan
Signal Transmission Distance	CATS Cable: <100m, Single Mode Fiber: <10km
Brightness	4500-5000 nits
Optimal Horizontal Viewing Angle	160°
Optimal Vertical Viewing Angle	160°
AC Input Voltage	AC 110V
AC Input Frequency	50/60 Hz
AC Input Power Typical Value	250W/sqm
Storage Temperature	-25°C to 65°C
Work Temperature	-20°C to 50°C
IP Rating	IP65 Front/Rear
Storage Humidity	10%-80% non-condensation RH
Working Humidity	10%-80% non-condensation RH
Video Signal Source	Cable TV, DVD, VCD, PC, RGBHV, YUV, YC, Composite Video
Playback Mode	Alternate or arbitrary combination of video, animation, text information
Image Regulation	White Balance, Contrast, Visual Correction, Backlight Regulation, Single Module Tuning Brightness
Image Switching	VGA Synchronous with the Frame
Blind Spot Rate	<0.0001
Signal Processing Capability	Not less than 10 bit
Lifetime Typical Value	100,000 Hours
