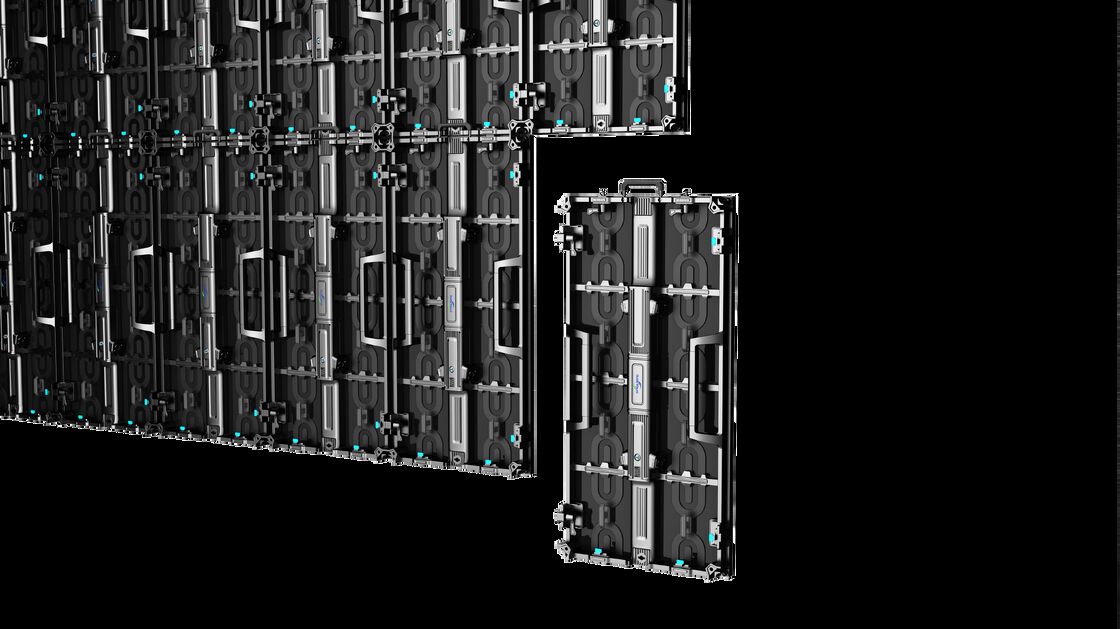

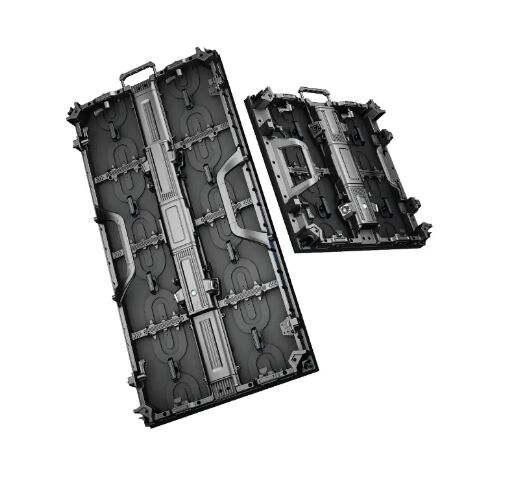

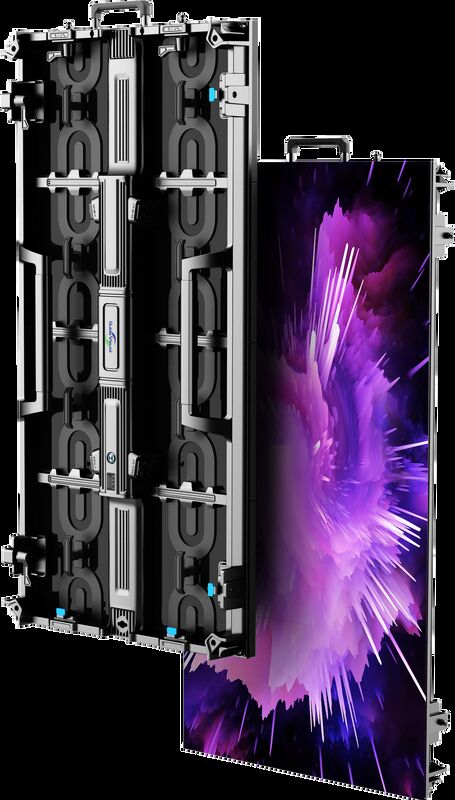

Guide Visual GS Series Rental LED Screen

At Guide Visual, we manufacture GS Series LED rental screens designed specifically for staging companies, event producers, and rental fleet operators who demand professional-grade LED display panels without the markup of middlemen. Our factory-direct model delivers P3.91, P4.81, and P6 LED screen panels to your warehouse or venue—ready for your crew to install with our tool-free, quick-lock system. No installation service provided, but every panel is engineered for 50% faster setup than industry standard.

Why Rental Companies Choose GS Series LED Screens

True Redundancy – Not Marketing Hype

• Dual Load-Sharing Power Supplies: If one PSU fails, the other three automatically compensate. Your LED video wall stays live while you hot-swap the dead unit in 60 seconds.
• Quad-RJ45 Signal Backup: Two active data paths + two hot-standby paths. Primary cable gets damaged? Switch to backup in 3 seconds via panel-mounted toggle.
• Module-Level Redundancy: Each LED panel has 4 independent power zones and 2 receiving cards. This isn't "backup" as an option—it's engineered into every stage LED display we ship.

GS Series LED Screen Rental Features (Built for Your Fleet)

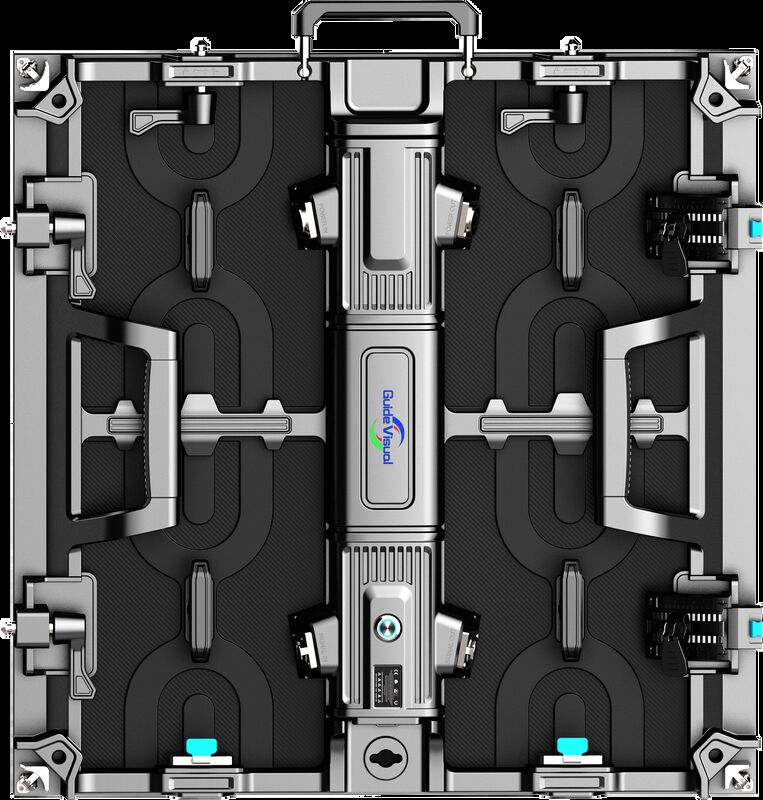

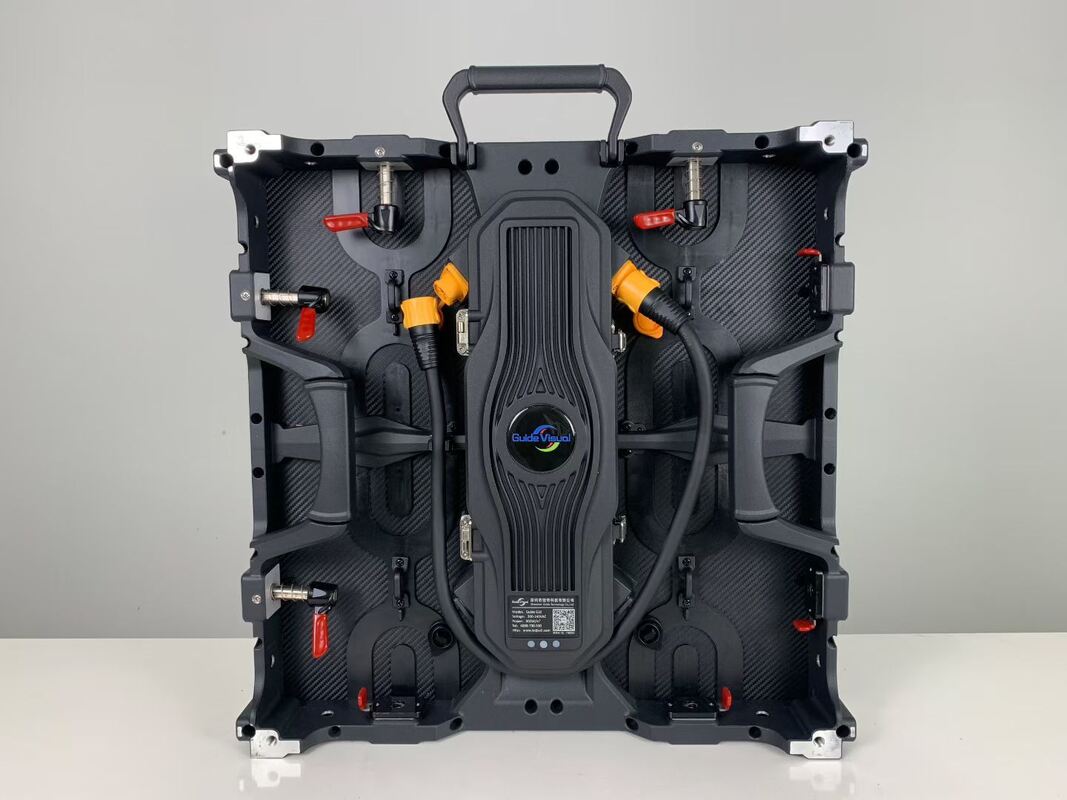

Physical Design

Die-Cast Aluminum Cabinet: Military-grade durability for 1,000+ rental cycles
Fast-Lock System: 2-second panel-to-panel connection—no tools, no loose parts
Anti-Collision Corners: Protects LED display panels during truck loading
Stacking & Hanging: Dual-purpose rigging—hang on truss or stack on ground

Visual Performance

• High Contrast: 5,000:1 ratio for deep blacks in LED video wall arrays
• Wide Viewing Angle: 160° horizontal/vertical for concert LED screens with side seating
• Color Uniformity: ΔE<3 across all batches—no color shift in multi-panel LED billboard builds
• Low Latency: <1ms for interactive LED display and IMAG camera feeds

Operational Efficiency

• Hot-Swappable Power: Replace PSU in 60 seconds without shutting down LED video wall
• Backup Data Loop: Secondary signal path keeps LED screen display live if primary cable fails
• Module Replacement: Swap individual LED modules in 2 minutes using front-access tool
• Power Efficiency: 30% lower consumption vs. competitors—save $200/day on generator fuel for outdoor LED screens

What Makes GS Series the Smarter Investment

1. Designed for High-Cycle Rental Use

2. Extreme Environment Reliability

3. Total Cost of Ownership Wins

• Power Efficiency: 280W/m² average (30% below competitors). A 50m² LED video wall saves $180/day in generator fuel at outdoor events.
• Standardized Components: Use the same PSU, receiving card, and modules across P3.91 and P4.81 models. Reduce spare parts inventory by 50%.
• Zero Proprietary Lock-in: GS panels work with standard truss, standard processors (Novastar, Colorlight, Linsn). You're not locked into our ecosystem.

Application-Specific Configurations for Your Rental Fleet

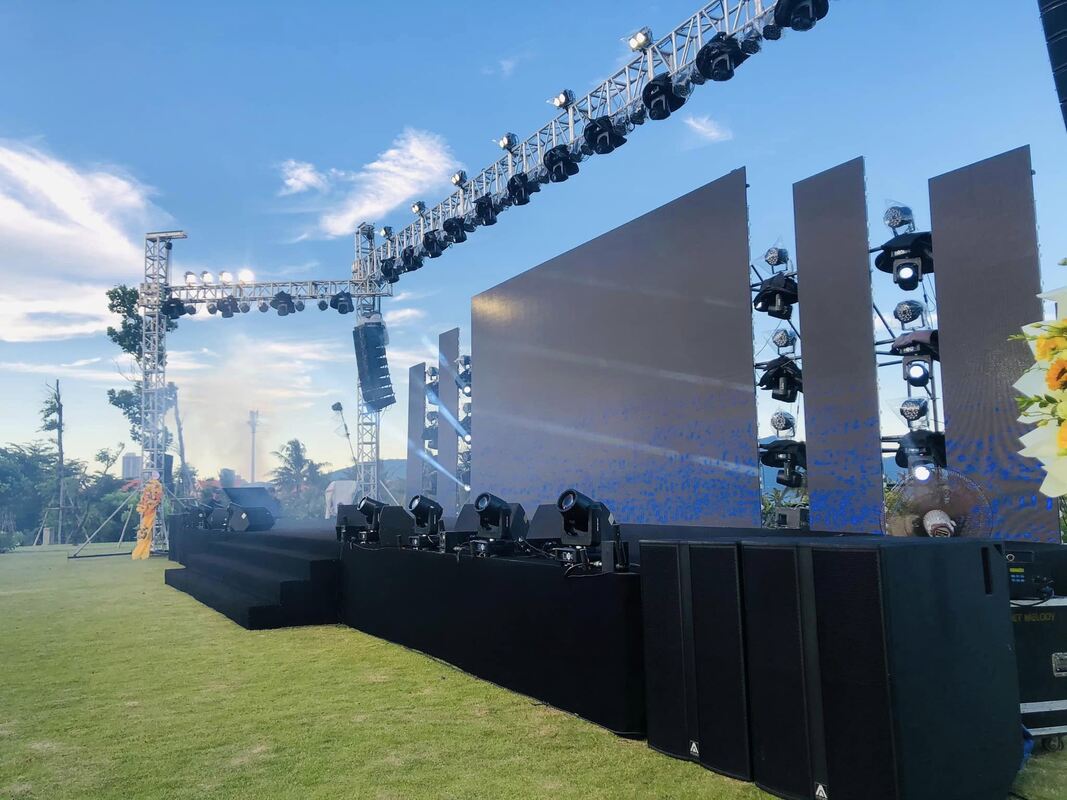

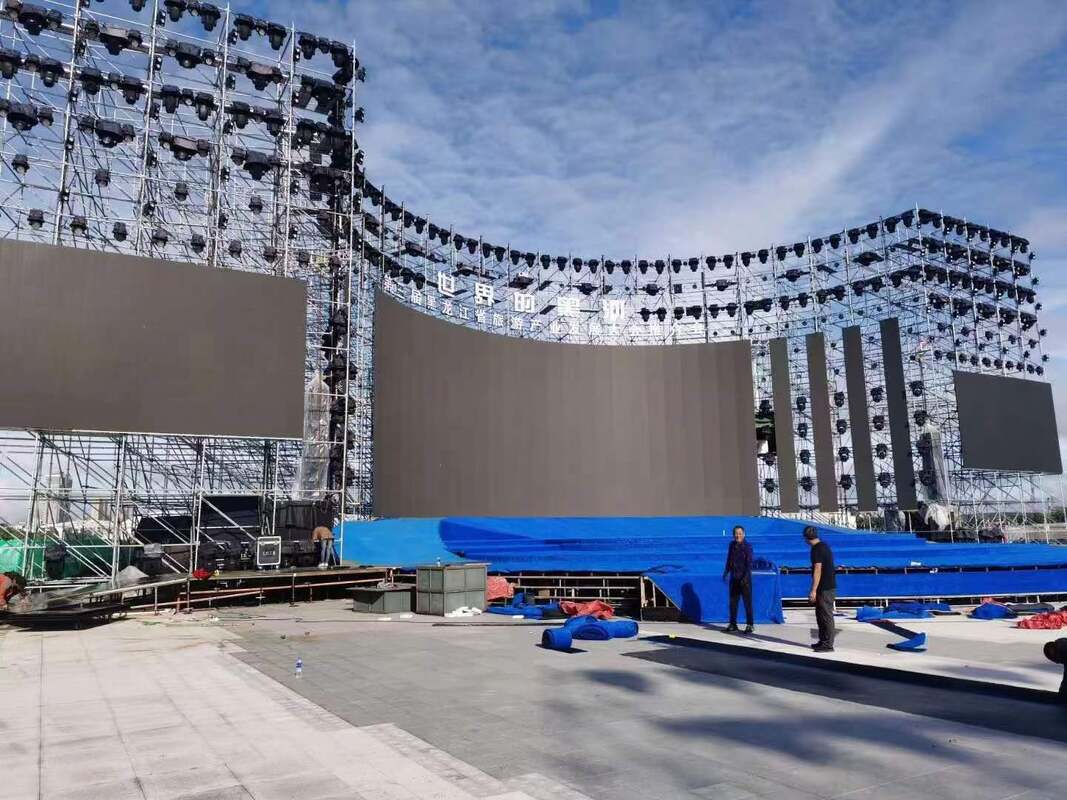

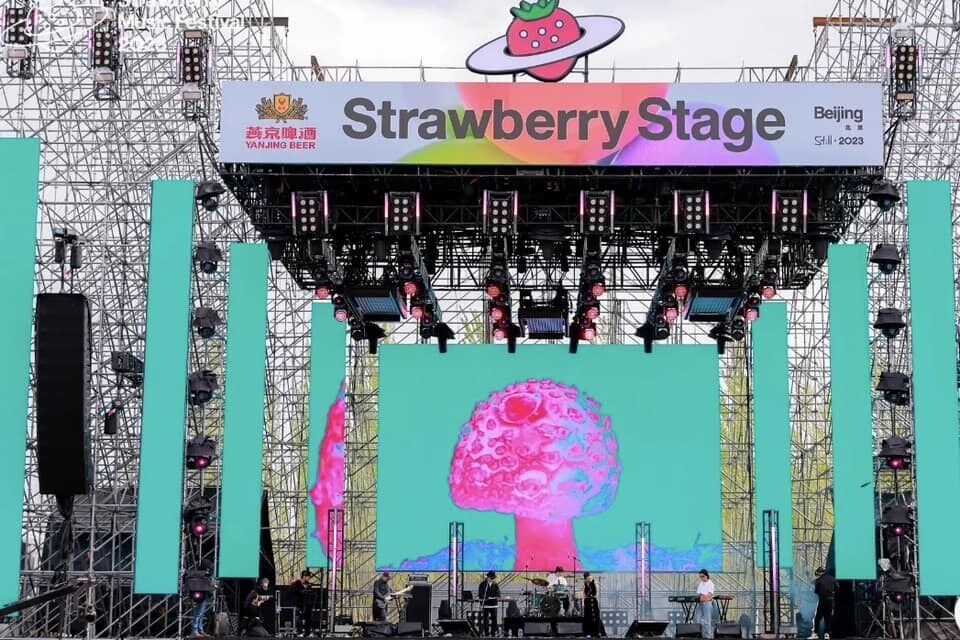

For Concert & Festival LED Screens
Stacked or Flown: GS-P3.91 panels hang on 500mm truss centers or stack 10m high with auto-alignment pins.
High-Speed Camera Safe: 3,840Hz refresh eliminates scan lines for 4K broadcast and IMAG.
Curved Stage Designs: Build curved LED screens up to ±15° per panel for immersive wraps.
For Corporate Event LED Video Walls
Ultra-Quiet Operation: Fanless indoor models run <25dB for conference rooms.
Fast Setup/Tear-Down: A 6m×3m conference room video wall assembles in 90 minutes with 2 techs.
Interactive Ready: Supports touch overlays and interactive LED display sensors.
For Church LED Wall Installations
Front Service Access: No need to remove panels from the wall for module swaps.
Text Clarity: Optimized for lyrics and scripture readability at 15ft viewing distance.
For Outdoor LED Billboard & Advertising
Permanent-Ready: GS-P6 outdoor LED advertising screens include anti-corrosion coating for 5-year continuous operation.
High Brightness Mode: 6,500 nits maintains visibility at noon; auto-dims at dusk to save power.
Mobile LED Screen Compatible: Panel dimensions fit standard truck-mount frames.

Guide Visual Factory: What We Do (And Don't)

We Manufacture & Deliver
✅ LED screen panels built to your order specifications (pixel pitch, indoor/outdoor, batch quantity)
✅ Factory-direct pricing with transparent component sourcing
✅ Global freight logistics to your warehouse, venue, or storage facility
✅ Production photos & QC reports before shipment
✅ Remote technical support via video call and TeamViewer
We Don't Install or Operate
❌ No on-site installation: You provide the crew; we provide the LED display panels and training docs
❌ No event-day operation: We don't staff your shows—your team runs the  LED video wall
 You maintain control and margins; we focus on building LED rental displays that never let you down.

About Guide Visual

Guide Visual is a professional LED display manufacturer with over 13 years of experience in the LED screen industry.
We specialize in rental LED displays, known for their durability, innovation, and stability.
All products are designed and manufactured in-house — from cabinet molding to quality control — ensuring consistent quality and fast delivery.

Our advantages:

• 13+ years manufacturing experience

• NovaStar control system (A5plus chip)

• Self-developed cabinets, strong anti-collision performance

• Stable signal connection, no black screen

• Trusted by clients across Europe, the Middle East, Africa & Southeast Asia

 Installation & Maintenance

• Quick Setup: Hard link design reduces setup time by 50%.

• Modular Design: Front & rear maintenance for flexible access.

• Seamless Splicing: Ensures a smooth, continuous display with perfect alignment.

• Optional Curved Connection: Can be customized for creative stage designs.

• Even non-technical teams can complete installation within minutes — saving time, labor, and cost.

Packing & Shipment

For safe and efficient delivery, each LED panel is carefully packed in high-quality flight cases (aviation cases):

• Anti-shock foam protection to prevent cabinet damage
• Stackable design for easy transport and storage
• Waterproof & dustproof cases for outdoor use
• Each case can hold 6 to 8 panels depending on cabinet size (500×500mm / 500×1000mm)

We offer air, sea, or express shipping options depending on your order size and location.
Every shipment is fully inspected and packed under strict QC standards to ensure safe arrival.

Why Choose Guide Visual

 Ultra-high refresh rate 7680Hz – perfect for live broadcast & camera shooting
 Dual backup for signal & power – no black screen during critical moments
 Lightweight & strong cabinet – easy to transport & assemble
 Professional factory support – direct price, stable quality
