Product Description
The Guide Visual P3.91 rental LED display is engineered for high-demand stage environments, including concerts, exhibitions, live events, and outdoor productions.
With a balanced combination of high brightness, smooth visual performance, and robust structural design, this LED video wall ensures stable operation under both indoor and outdoor conditions.
Featuring a high refresh rate of up to 7680Hz and precision color calibration, the display delivers clear, flicker-free visuals for live audiences as well as professional camera shooting and broadcasting.
The system is designed with redundancy and modularity in mind, ensuring reliable performance and easy maintenance in critical event scenarios.

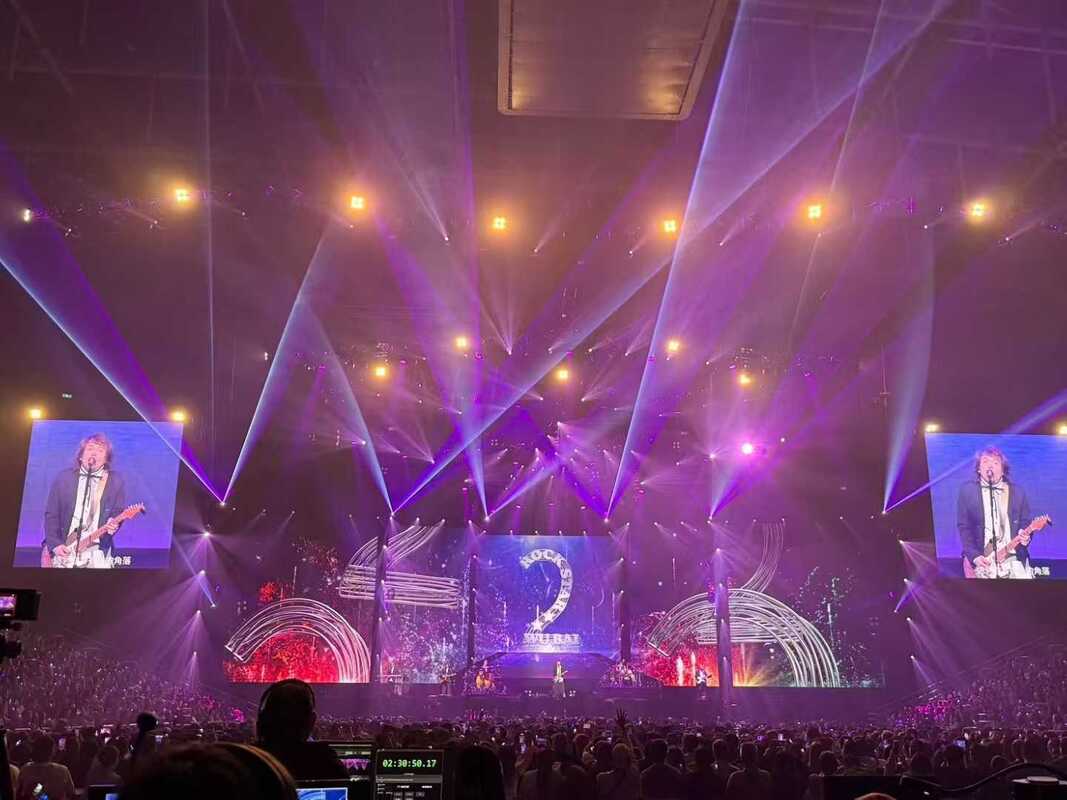

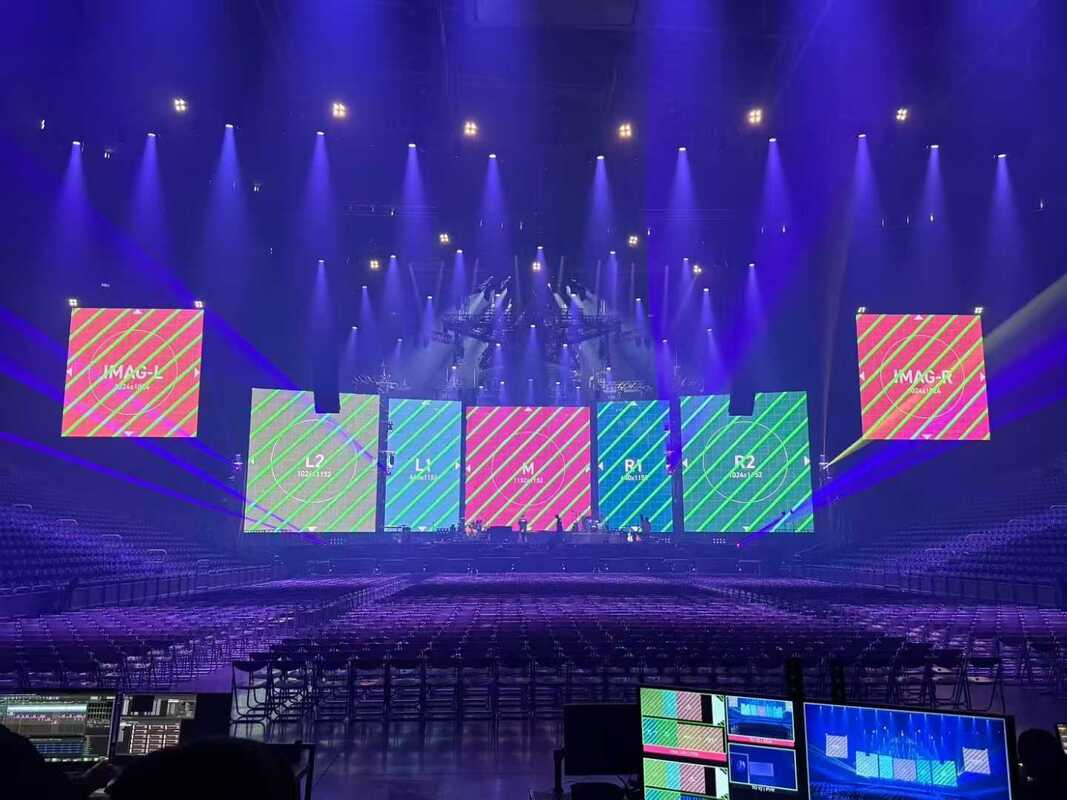

Proven Performance in Real Event Conditions
The GS P3.91 has been successfully applied in large-scale outdoor events and touring projects.
In a recent live event deployment:
- Over 300+ cabinets were installed in a curved configuration
- Continuous operation under varying weather conditions
- Stable performance with no signal interruption
This demonstrates the system’s reliability for high-frequency rental applications.
Key Features
- Ultra-high refresh rate (7680Hz) for smooth visuals and camera-friendly performance
- Dual power & signal redundancy to ensure uninterrupted operation
- IP65 protection level suitable for outdoor and harsh environments
- Lightweight cabinet structure for efficient transportation and installation
- Quick lock system for fast, tool-free assembly
- Front and rear maintenance access for flexible servicing
- Hard connection design for improved stability and precise alignment
- Compatible with advanced control systems from NovaStar Technology
- Seamless splicing for uniform and consistent display quality
- Support for curved and flat installations to meet creative stage requirements
Technical Specifications
Module Specifications
- Module Size: 250 × 250 mm
- Resolution: 64 × 64
- Pixel Pitch: 3.91 mm

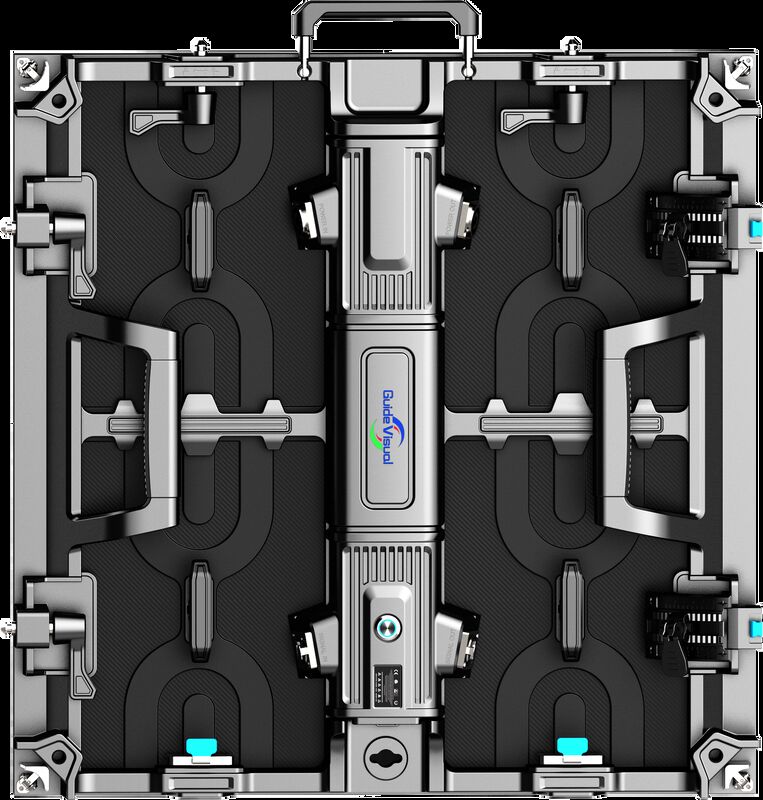

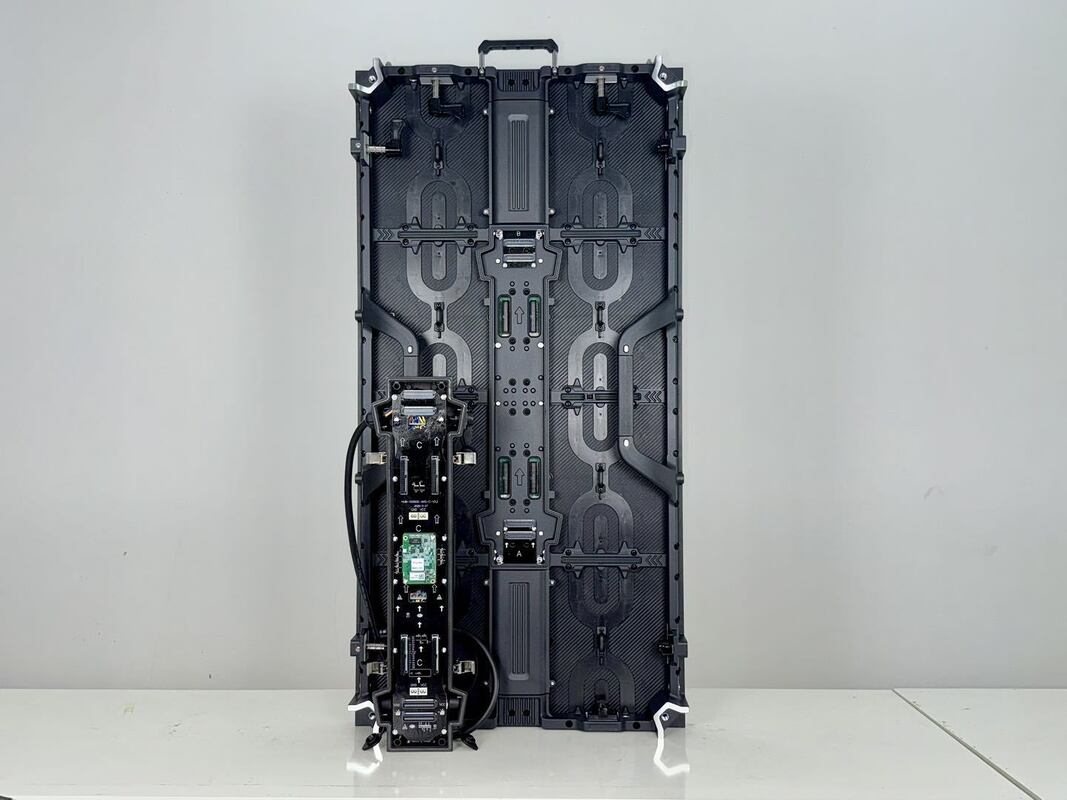

Cabinet Specifications
- Cabinet Size: 500×500mm/500 × 1000 mm
- Cabinet Resolution: 128 × 256
- Material: Die-casting aluminum
- Weight: approx. 13 kg
Display Performance
- LED Type: SMD 3-in-1 (black package)
- Refresh Rate: up to 7680 Hz
- Gray Scale: 14–16 bit
- Brightness: 4500–5000 nits
- Viewing Angle: 160° (H) / 160° (V)
- Lifetime: ≥100,000 hours
Power & Environment
- Input Voltage: AC 110–220V
- Frequency: 50/60Hz
- Average Power Consumption: approx. 250W/m²
- Working Temperature: -20°C to +50°C
- Humidity: 10%–80% RH
- Protection Level: IP65 (front & rear)
Signal & Control
- Transmission Distance:
- CAT5: ≤100m
- Optical Fiber: ≤10km
- Input Sources: HDMI, DVI, VGA, video signals
- Playback: video, image, text, mixed content
Application Scenarios
This model is widely used in:
- Concerts and music festivals
- Outdoor stage events
- Exhibitions and trade shows
- Corporate events and product launches
- Sports events and public displays
Suitable for both indoor and outdoor rental applications.
Installation & Maintenance
The GS Series is designed for fast deployment:
- Quick-lock system reduces installation time
- Hard connection simplifies setup process
- Front and rear maintenance improve accessibility
- Modular design allows fast replacement of components
These features significantly improve efficiency for rental companies and event organizers.
Packaging & Logistics
The panels are packed in professional flight cases:
- Shock-resistant protection
- Stackable design for efficient transport
- Suitable for frequent loading and unloading
Each flight case typically contains multiple cabinets for optimized shipping.
Available shipping methods:
- Sea freight
- Air freight
- Express delivery
All products are inspected before shipment to ensure quality.
Why Choose Guide Visual
Guide Visual is a professional LED display manufacturer with extensive experience in rental LED solutions.
We provide:
- Factory-direct supply with competitive pricing
- Reliable product quality and strict testing standards
- Technical support for project design and installation
- Fast response and global service support
Our products are widely used in international markets and trusted by clients in various industries.
Contact Us
Tell us about your project requirements:
- Screen size
- Application environment
- Installation type
