Guide COB Series – Indoor Small-Pitch LED Display | Ultra HD LED Video Wall
Guide COB Series is a high-performance indoor small-pitch LED display that combines COB (Chip On Board) and flip-chip technology to deliver ultra-high-definition visuals with exceptional durability. As our flagship small-pixel-pitch LED video wall, it is ideal for conference rooms, control centers, TV studios, and commercial digital signage.
1. Ultra-Fine Pixel Pitch for Crisp Visuals
| Specification |
Parameter |
| Pixel pitch |
P0.62
|
P0.78
|
P0.9
|
P1.2
|
| Led module size |
150*168.75mm |
150*168.75mm |
150*168.75mm |
150*168.75mm |
| Led module resolution |
242*272 dots |
192*216dots |
167*188dots |
125*141 |
| Led chip size |
3*6mil |
3*6mil |
3*6mil |
3*6mil |

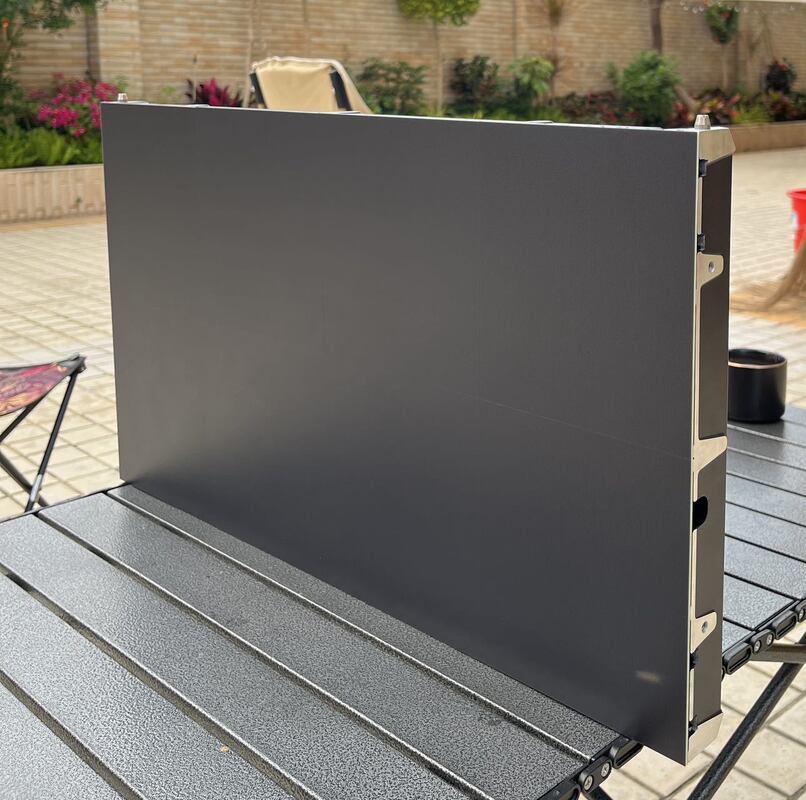

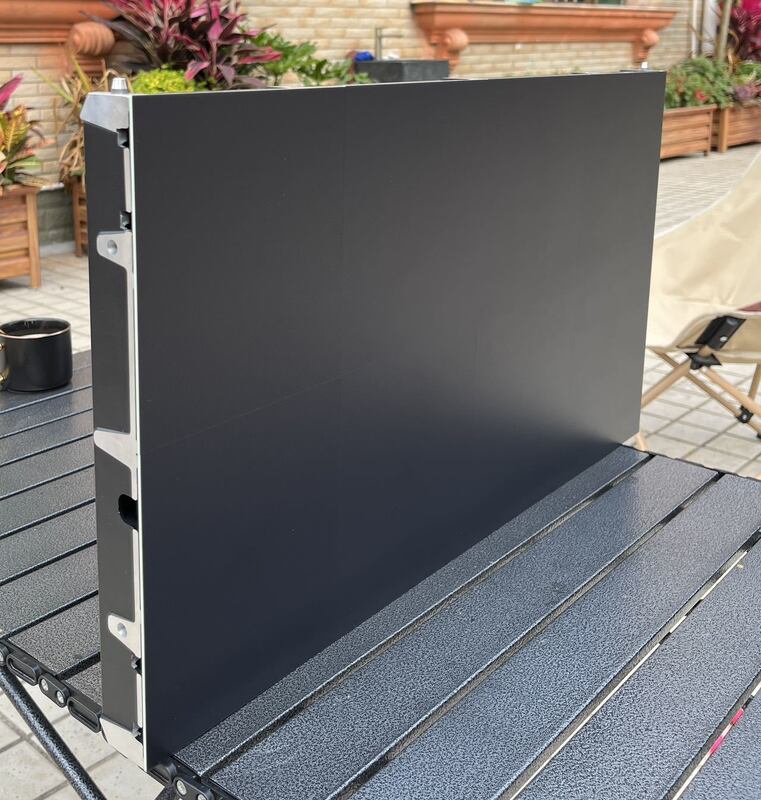

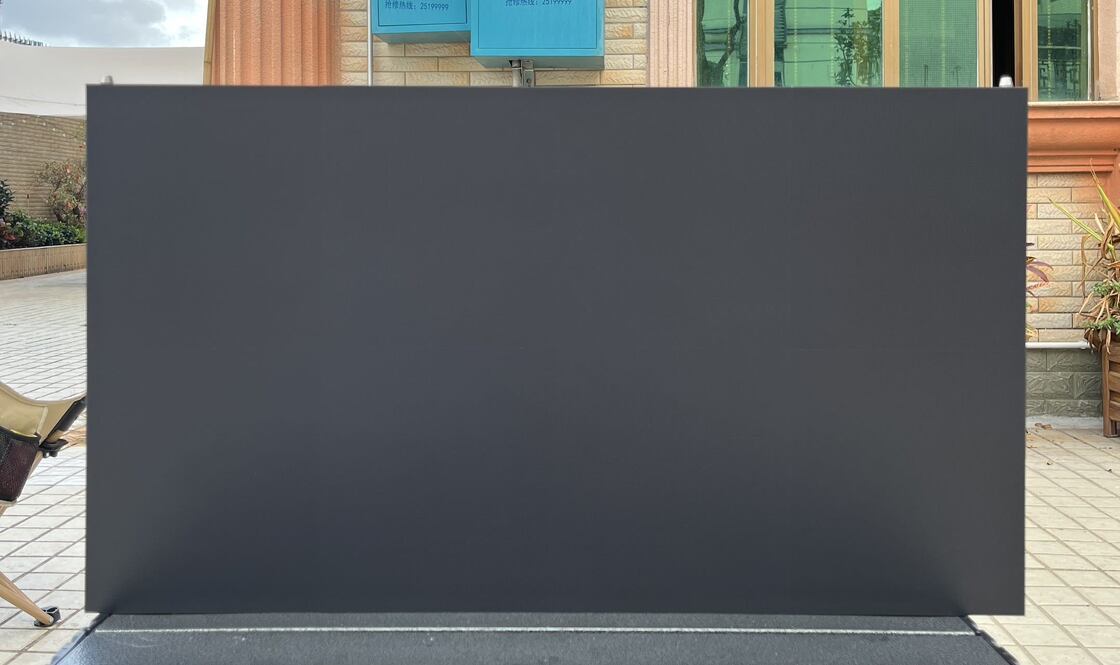

| Cabinet size |
600*337.5mm |
600*337.5mm |
600*337.5mm |
600*337.5mm |
| Cabinets resolution |
960*540dots |
768*432dots |
640*360 dots |
480*270dots |
| Scan method |
1/60 scan |
1/48 scan |
1/54 scan |
1/60 scan |
| Cabinet weight |
4kg/set |
4kg/set |
4kg/set |
4kg/set |
| Brightness |
600nit |
600nit |
600nit |
600nit |
| Max power consumption |
92W/panel |
85W/panel |
75W/panel |
70W/panel |
| IP degree |
33 |
33 |
33 |
33 |
| Scan method |
1/62 scan |
1/51 scan |
1/64 scan |
1/64 scan |
| High refresh |
3840hz
|
| Frame change frequency |
50/60Hz
|
| Operating voltage |
AC110-240v (50-60Hz)
|
| Peak power consumption |
450w/m²
|
| Average power consumption |
100w/m²-300w/m²
|
| Continuous working hours |
7*24 hours
|
| Average failure-free time |
More than 10000 hours
|
| Led life |
100,000 hours
|
| Blind spot rate |
<0.0001
|
| Operating environment temperature |
Minus 10 degrees to 60 degrees
|
| Operating environment humidity |
10%-90% RH No condensation
|

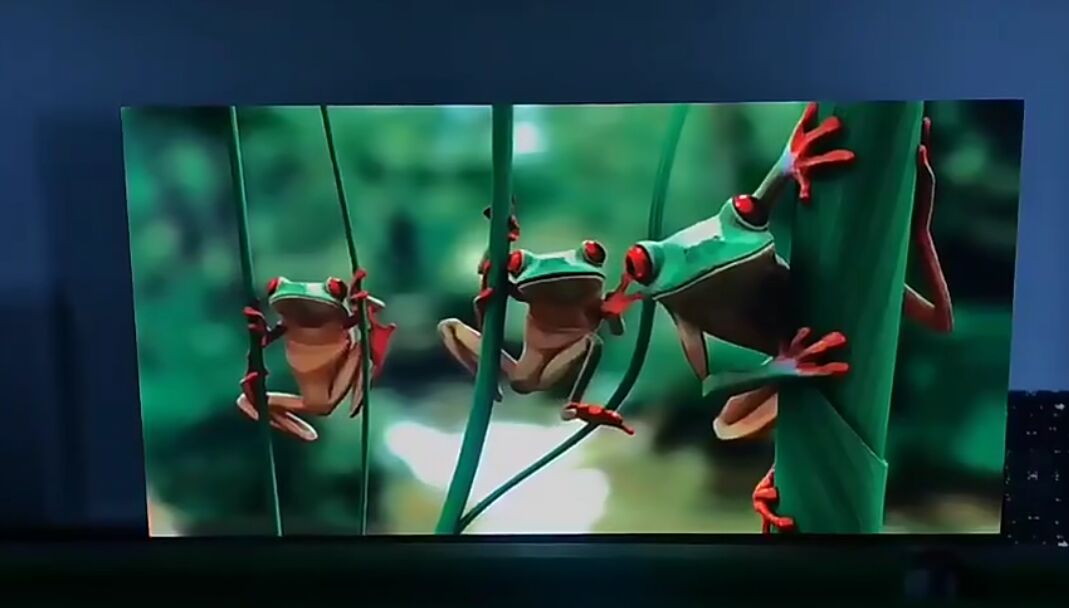

- Pixel pitch options: 0.62mm – 1.2mm
- Uses micro and mini LED chips for detailed, ultra-sharp images
- Native 16:9 aspect ratio with high refresh rate of 3,840Hz
- 16-bit grayscale support ensures smooth color transitions and lifelike visuals
2. Durable & Easy-to-Maintain Design
- COB technology enhances panel durability, perfect for high-traffic indoor environments

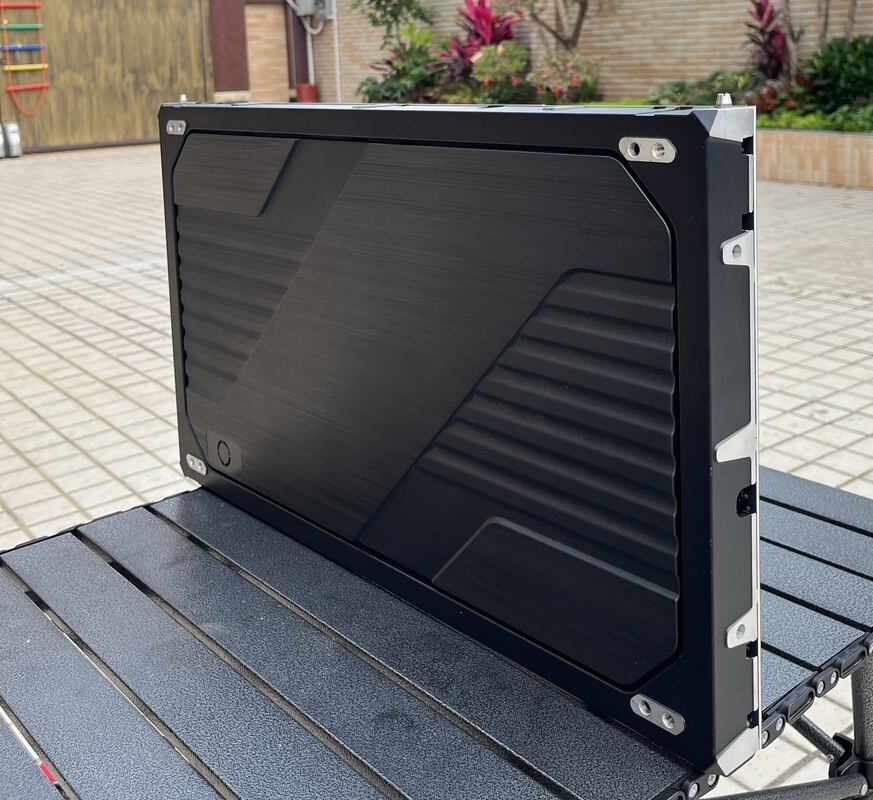

- Hard connect design with integrated receiving card, hub board, and power supply
- Front maintenance allows quick servicing and minimal downtime
- Three-in-one design for power supply, hub board, and receiving card
- Seamless panel combination enables flexible video wall configurations

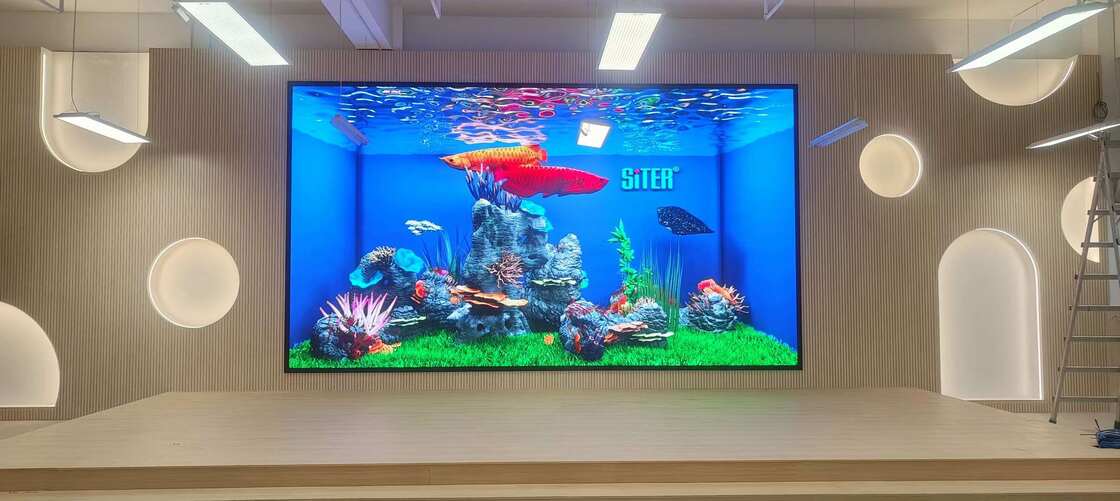

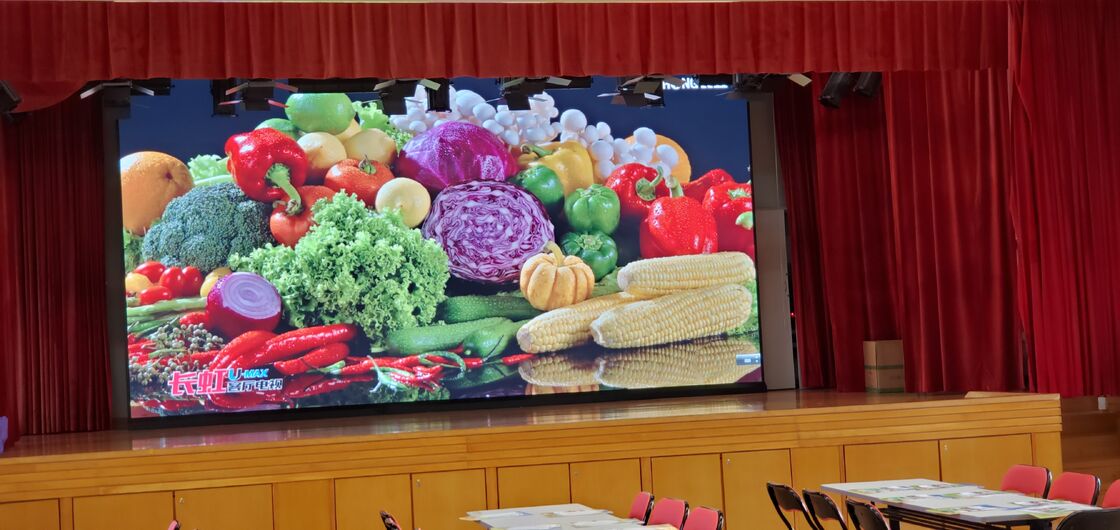

3. Applications of Guide COB Indoor LED Display
The Guide COB Series is suitable for various indoor LED display applications:
- Conference Rooms & Event Centers: Ideal for video conferencing, presentations, and live data visualization
- Command & Dispatch Centers: Real-time monitoring of maps, dashboards, and surveillance feeds
- TV Studios & Control Rooms: Deliver smooth, flicker-free broadcast-quality visuals
- Commercial Displays & Exhibitions: Showcase products, digital signage, and interactive content
- Video Walls & Billboards: Build high-definition indoor video walls for impactful advertising
Why Choose Guide COB Series?
Experience next-level indoor LED performance with the Guide COB Series. Designed for demanding environments, it delivers:
- True Ultra-HD clarity with exceptional contrast that brings every detail to life
- Low power consumption and eco-friendly design for long-term operation
- Remarkably stable performance, ensuring reliable visuals day after day
- Flexible, installation-friendly structure, perfectly suited for modern meeting rooms, studios, control centers, and commercial spaces
Choose Guide COB Series for a display solution that combines cutting-edge technology with long-lasting reliability.
Guide COB Series sets a new standard for indoor small-pitch LED video walls, offering crisp visuals, durable panels, and flexible installation options for professional and commercial use.
