Commercial COB Led Video Wall Creative Led Display 5000cd 600nit

Commercial COB Led Video Wall

600nit COB Led Video Wall

600nit creative led display

Brand Name:

Guide Visual

Certification:

CE/FCC/Rohs

Model Number:

P1.9,P2.6,P2.9,P3.91

Chat Now

Request A Quote

Product Details

Product Name:

Led Video Display Panel

Brightness:

4500-5000cd

Refresh Rate:

7680HZ

Life Span:

100000 Hours

Cabinet Size:

500mm*500mm/500mm*1000mm

Module Size:

250x250 Mm

Warranty:

2 Years

Led Brands:

Customize/nation Star/king Light

Highlight:

Commercial COB Led Video Wall

600nit COB Led Video Wall

600nit creative led display

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

negotiation

Packaging Details

Flight case

Delivery Time

15-20 days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

2000-3000 sqm per month

COB Flexible Led Module Indoor Led Display Advertising Board 0.62mm–1.2mm

Chat Now

video

Pixel Pitch COB Backdrop Led Screen Curved Display P0.6 P0.7 P0.93 P1.2 P1.5 600x337.5mm

Chat Now

video

Flexible COB Indoor Rental Led Display Panel Module Ultra HD

Chat Now

Commercial COB Led Video Wall Creative Led Display 5000cd 600nit

Chat Now

86--18220591195

sales@sqleddisplay.com

Chat Now

Product Description

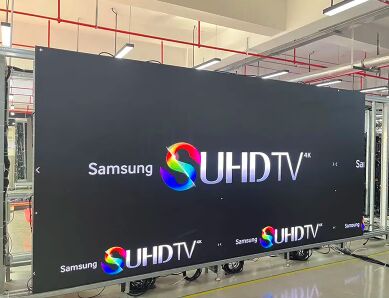

Guide COB Series – Indoor Small-Pitch LED Display | Ultra HD LED Video Wall

Guide COB Series is a high-performance indoor small-pitch LED display that combines COB (Chip On Board) and flip-chip technology to deliver ultra-high-definition visuals with exceptional durability. As our flagship small-pixel-pitch LED video wall, it is ideal for conference rooms, control centers, TV studios, and commercial digital signage.

1. Ultra-Fine Pixel Pitch for Crisp Visuals

Specification	Parameter
Pixel pitch	P0.62	P0.78	P0.9	P1.2
Led module size	150*168.75mm	150*168.75mm	150*168.75mm	150*168.75mm
Led module resolution	242*272 dots	192*216dots	167*188dots	125*141
Led chip size	3*6mil	3*6mil	3*6mil	3*6mil
Cabinet size	600*337.5mm	600*337.5mm	600*337.5mm	600*337.5mm
Cabinets resolution	960*540dots	768*432dots	640*360 dots	480*270dots
Scan method	1/60 scan	1/48 scan	1/54 scan	1/60 scan
Cabinet weight	4kg/set	4kg/set	4kg/set	4kg/set
Brightness	600nit	600nit	600nit	600nit
Max power consumption	92W/panel	85W/panel	75W/panel	70W/panel
IP degree	33	33	33	33
Scan method	1/62 scan	1/51 scan	1/64 scan	1/64 scan
High refresh	3840hz
Frame change frequency	50/60Hz
Operating voltage	AC110-240v (50-60Hz)
Peak power consumption	450w/m²
Average power consumption	100w/m²-300w/m²
Continuous working hours	7*24 hours
Average failure-free time	More than 10000 hours
Led life	100,000 hours
Blind spot rate	<0.0001
Operating environment temperature	Minus 10 degrees to 60 degrees
Operating environment humidity	10%-90% RH No condensation

Pixel pitch options: 0.62mm – 1.2mm
Uses micro and mini LED chips for detailed, ultra-sharp images
Native 16:9 aspect ratio with high refresh rate of 3,840Hz
16-bit grayscale support ensures smooth color transitions and lifelike visuals

2. Durable & Easy-to-Maintain Design

COB technology enhances panel durability, perfect for high-traffic indoor environments

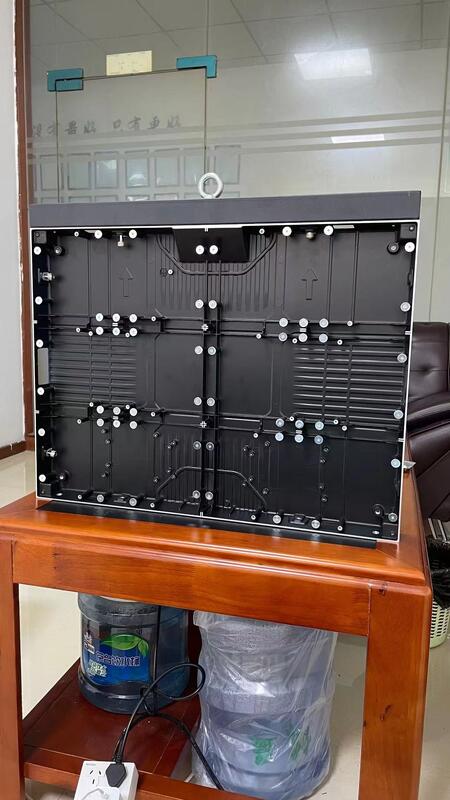

Hard connect design with integrated receiving card, hub board, and power supply
Front maintenance allows quick servicing and minimal downtime
Three-in-one design for power supply, hub board, and receiving card
Seamless panel combination enables flexible video wall configurations

3. Applications of Guide COB Indoor LED Display

Commercial COB Led Video Wall Creative Led Display 5000cd 600nit 2

The Guide COB Series is suitable for various indoor LED display applications:

Conference Rooms & Event Centers: Ideal for video conferencing, presentations, and live data visualization
Command & Dispatch Centers: Real-time monitoring of maps, dashboards, and surveillance feeds
TV Studios & Control Rooms: Deliver smooth, flicker-free broadcast-quality visuals
Commercial Displays & Exhibitions: Showcase products, digital signage, and interactive content
Video Walls & Billboards: Build high-definition indoor video walls for impactful advertising

Why Choose Guide COB Series?

Ultra HD image quality with high contrast ratio up to 100,000:1
Energy-efficient and environmentally friendly
Stable performance for long-term usage
Versatile and user-friendly design for any indoor environment

Guide COB Series sets a new standard for indoor small-pitch LED video walls, offering crisp visuals, durable panels, and flexible installation options for professional and commercial use.

Travel Safe, My Dear Screen.

Certified Quality You Can Trust

At Guide, every LED screen we produce meets the highest international quality standards. Our products have obtained CE, FCC, and RoHS certifications, proving their compliance with strict safety, environmental, and performance regulations.

CE Certification (Conformit e Europeenne) -- ensures that our LED display panels and LED screen rental solutions meet the essential health, safety, and environmental protection requirements for sale within the European market.
FCC Certification (Federal Communications Commission) -- guarantees that our digital display and outdoor LED display products comply with U.S. standards for electronic emissions, ensuring safe and stable operation.
RoHS Certification (Restriction of Hazardous Substances) -- confirms that our LED signage and LED display screens are eco-friendly and free from harmful materials, making them a responsible choice for sustainable projects.

Every Guide LED display is built with uncompromising quality. Before leaving our factory, each screen undergoes 16 layers of quality inspection and more than 1,800 rigorous reliability tests, ensuring outstanding stability and long-term performance. These international certifications and strict testing standards affirm our dedication to safety, durability, and global trustworthiness—allowing clients to deploy Guide LED screens with confidence in any scenario, from concerts and exhibitions to indoor control rooms and outdoor digital signage.

Guide -- Unlocking a New Era of LED Display Innovation

Shenzhen Guide Technology Co., Ltd. is a trusted leader in LED display manufacturing, backed by 13+ years of specialized experience in rental LED screen research and production. With refined craftsmanship and deep technical expertise, Guide delivers LED display solutions celebrated for their exceptional stability, vivid image quality, and user-friendly design.
Across 83 countries and more than 4,800 successful projects, our LED screens continue to illuminate global stages, sports events, exhibitions, corporate venues, and outdoor installations. Certified with CE, CCC, FCC, and RoHS, every Guide product is engineered to perform reliably in demanding professional environments—ensuring brilliance in every show and precision in every detail. Commercial COB Led Video Wall Creative Led Display 5000cd 600nit 6
