Guide COB Series – Indoor Small-Pitch LED Display | Ultra HD LED Video Wall
Guide COB Series is a high-performance indoor small-pitch LED display that combines COB (Chip On Board) and flip-chip technology to deliver ultra-high-definition visuals with exceptional durability. As our flagship small-pixel-pitch LED video wall, it is ideal for conference rooms, control centers, TV studios, and commercial digital signage.
1. Ultra-Fine Pixel Pitch for Crisp Visuals
| Specification |
Parameter |
| Pixel pitch |
P0.62
|
P0.78
|
P0.9
|
P1.2
|
| Led module size |
150*168.75mm |
150*168.75mm |
150*168.75mm |
150*168.75mm |
| Led module resolution |
242*272 dots |
192*216dots |
167*188dots |
125*141 |
| Led chip size |
3*6mil |
3*6mil |
3*6mil |
3*6mil |
| Cabinet size |
600*337.5mm |
600*337.5mm |
600*337.5mm |
600*337.5mm |
| Cabinets resolution |
960*540dots |
768*432dots |
640*360 dots |
480*270dots |
| Scan method |
1/60 scan |
1/48 scan |
1/54 scan |
1/60 scan |
| Cabinet weight |
4kg/set |
4kg/set |
4kg/set |
4kg/set |
| Brightness |
600nit |
600nit |
600nit |
600nit |
| Max power consumption |
92W/panel |
85W/panel |
75W/panel |
70W/panel |
| IP degree |
33 |
33 |
33 |
33 |
| Scan method |
1/62 scan |
1/51 scan |
1/64 scan |
1/64 scan |
| High refresh |
3840hz
|
| Frame change frequency |
50/60Hz
|
| Operating voltage |
AC110-240v (50-60Hz)
|
| Peak power consumption |
450w/m²
|
| Average power consumption |
100w/m²-300w/m²
|
| Continuous working hours |
7*24 hours
|
| Average failure-free time |
More than 10000 hours
|
| Led life |
100,000 hours
|
| Blind spot rate |
<0.0001
|
| Operating environment temperature |
Minus 10 degrees to 60 degrees
|
| Operating environment humidity |
10%-90% RH No condensation
|
- Advanced COB encapsulation provides exceptional durability, making the panels ideal for busy, high-traffic indoor environments.

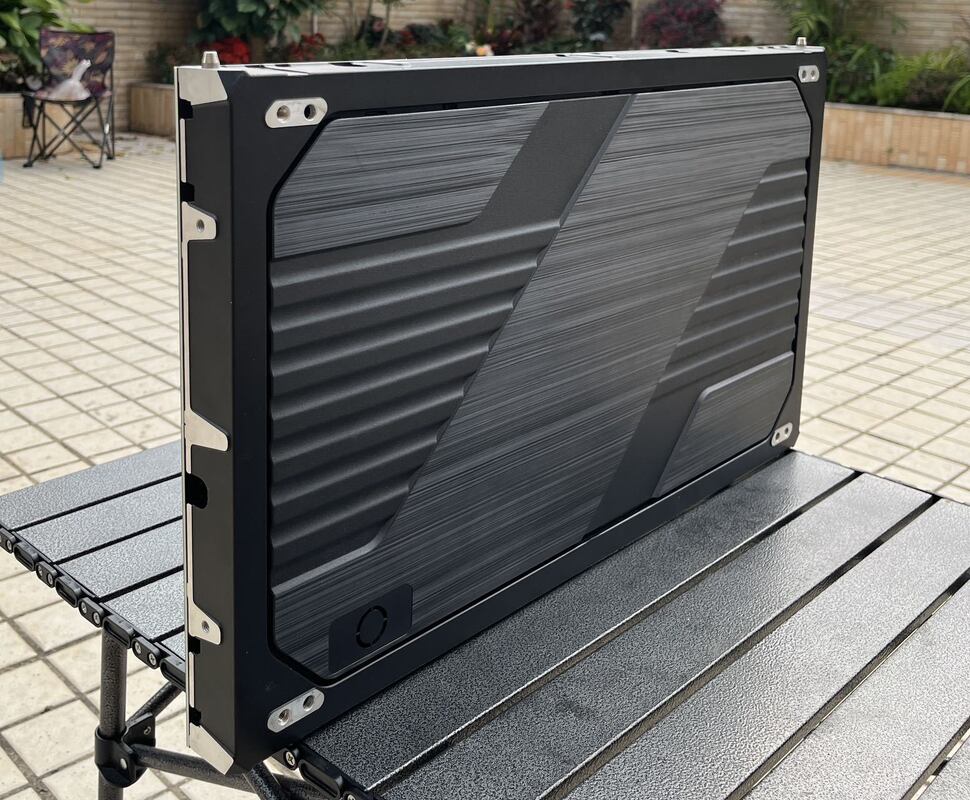

- A fully hardwired architecture integrates the receiving card, hub board, and power supply to improve stability and reduce failure points.
- Front-service access allows technicians to replace modules or components quickly, minimizing downtime during operation.
- The three-in-one hardware integration simplifies internal layout, creating a cleaner structure and boosting long-term reliability.
- Seamlessly connected panels support highly customizable indoor video wall configurations, ensuring smooth visual performance for any project.
2. Durable & Easy-to-Maintain Design
- COB technology enhances panel durability, perfect for high-traffic indoor environments
- Hard connect design with integrated receiving card, hub board, and power supply
- Front maintenance allows quick servicing and minimal downtime
- Three-in-one design for power supply, hub board, and receiving card
- Seamless panel combination enables flexible video wall configurations

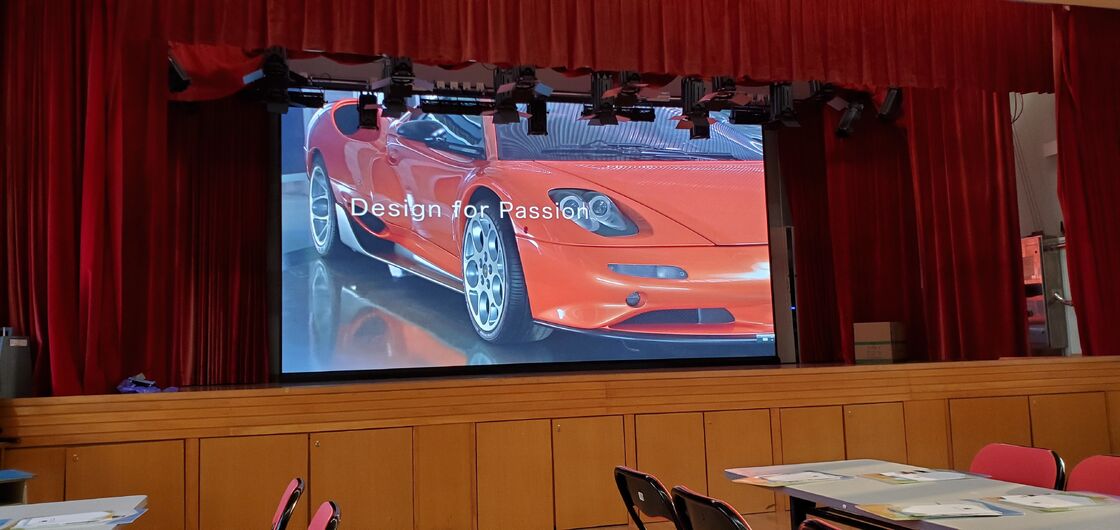

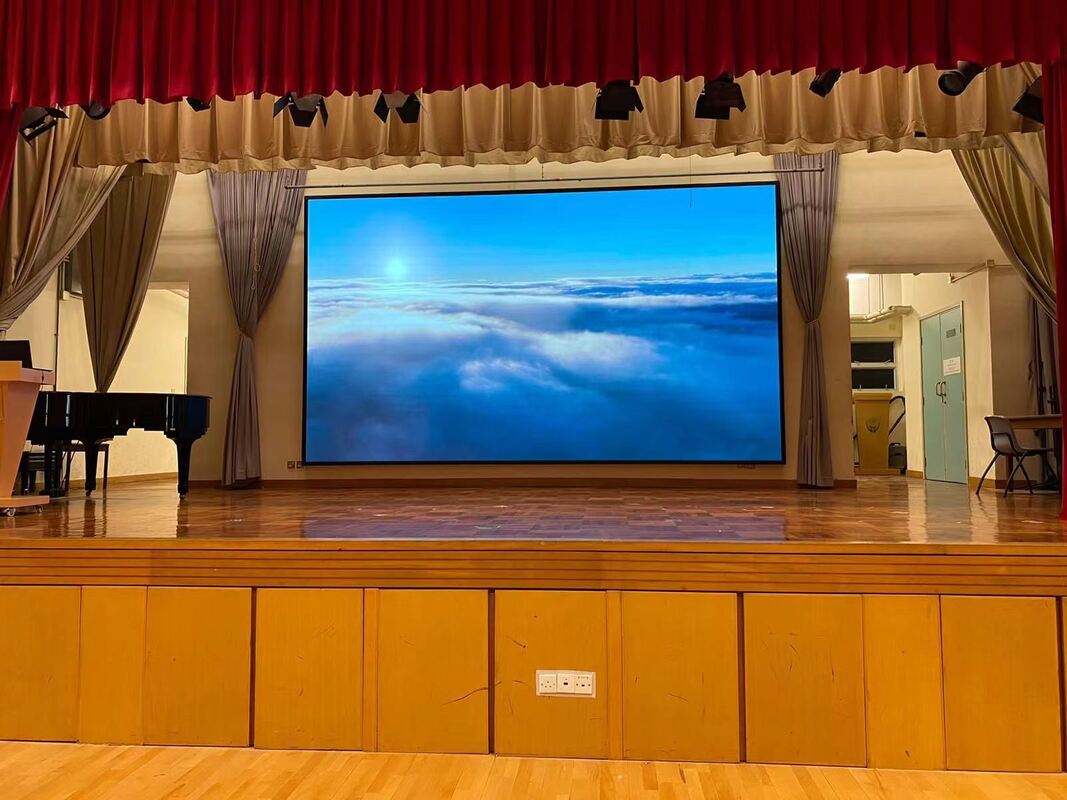

3. Applications of Guide COB Indoor LED Display
3. Wide-Ranging Applications of Guide COB Indoor LED Display
The Guide COB Series delivers ultra-clear, stable, high-brightness visuals, making it the perfect choice for a wide variety of indoor environments:
- Conference Rooms & Event Halls
Ideal for video meetings, presentations, keynote speeches, and real-time information display.
- Command & Control Centers
Supports 24/7 operation with reliable visualization for maps, analytics dashboards, and monitoring feeds.
- TV Studios & Broadcast Control Rooms
Provides smooth, flicker-free images suitable for high-end broadcasting and live production.
- Commercial Displays & Exhibition Spaces
Perfect for product showcases, brand promotions, digital signage, and immersive exhibition content.
- Indoor Video Walls & Digital Billboards
Enables the creation of large-format high-definition screens for advertising and indoor media displays.
Why Choose Guide COB Series?
- Ultra HD image quality with high contrast ratio up to 100,000:1
- Energy-efficient and environmentally friendly
- Stable performance for long-term usage
- Versatile and user-friendly design for any indoor environment
Guide COB Series sets a new standard for indoor small-pitch LED video walls, offering crisp visuals, durable panels, and flexible installation options for professional and commercial use.
