Place of Origin:
China
Brand Name:
Guide Visual
Certification:
CCC CE FCC ROSH
Model Number:
P4/P5/P6
Outdoor LED displays are exposed to much more than sunlight. Rain, dust, temperature changes and continuous operation all place higher demands on the display structure and electronic components.
Guide Visual outdoor fixed LED displays are designed for permanent or semi-permanent outdoor installations where brightness, weather protection, thermal management and stable image performance are essential.
Available in P4, P5 and P6, the series provides different pixel-pitch options for commercial advertising, public information, transportation facilities and large outdoor video walls.
Outdoor displays must compete with changing ambient light throughout the day.
With brightness up to 5500 cd/m², Guide Visual outdoor LED displays are designed to maintain clear and visible content in bright outdoor environments.
The available pixel pitches also allow buyers to select the appropriate balance between viewing distance, image detail and project budget.
| Pixel Pitch | Pixel Density | Typical Viewing Consideration |
|---|---|---|
| P4 | 62,500 dots/m² | Higher image detail for relatively closer viewing |
| P5 | 40,000 dots/m² | Balanced choice for general outdoor advertising |
| P6 | 27,777 dots/m² | Suitable for larger screens and longer viewing distances |
Rather than choosing the smallest pixel pitch automatically, the better approach is to match the display to the actual viewing distance and screen size.
Outdoor LED billboards need protection against environmental exposure.

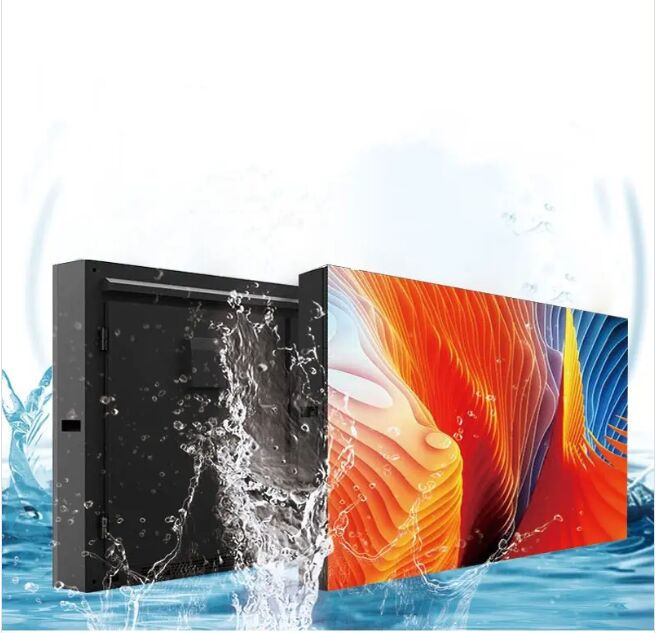

The display adopts an IP65 protection level, helping protect the LED display system against dust ingress and water exposure from outdoor conditions.
This makes the series suitable for applications where the screen remains installed outdoors for extended periods rather than being repeatedly assembled and dismantled like a rental display.
Typical installation environments include:
A large outdoor LED display can operate for many hours each day. Heat generated by LEDs and electronic components therefore needs to be managed effectively.

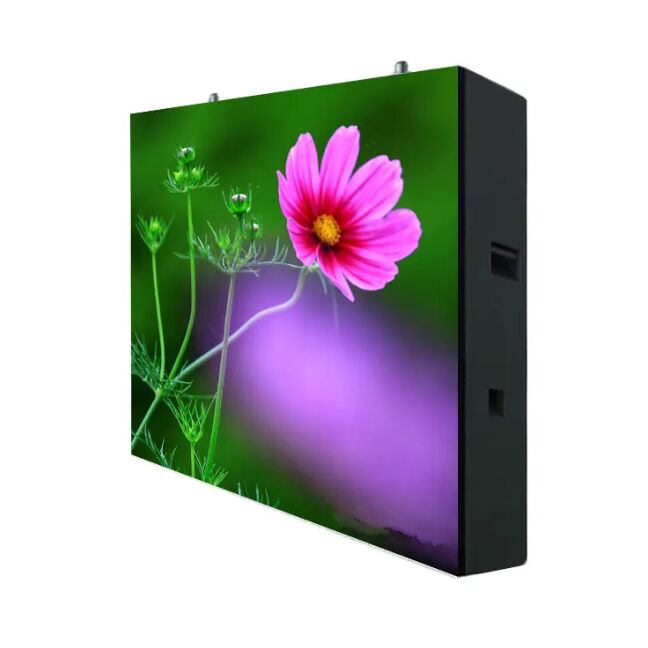

Guide Visual outdoor fixed LED cabinets are equipped with fans for cabinet-level heat dissipation, helping move heat away from internal components during operation.
This design is particularly important for large-format installations where many cabinets operate together as one display.
Effective thermal management helps support:
Fixed LED projects rarely have exactly the same installation environment.

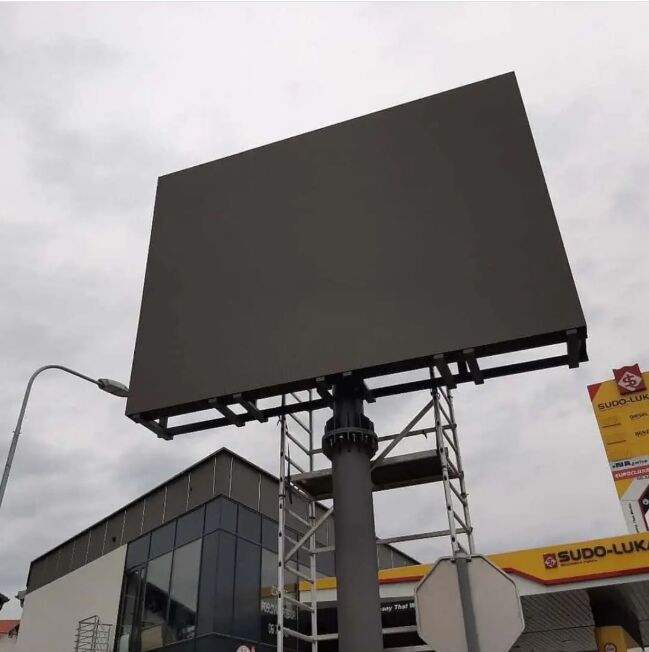

The screen may need to be mounted on a building facade, independent steel structure, commercial advertising frame or other customized support structure.
Guide Visual supports different installation configurations, including:
Wall-Mounted / Freestanding / Suspended Installation
For project-based orders, the installation design can be developed according to the customer's actual site conditions.
The customer can provide basic information such as:
Guide Visual can then provide installation drawings based on the project requirements.
Guide Visual outdoor fixed LED displays can be used across a wide range of commercial and public environments.

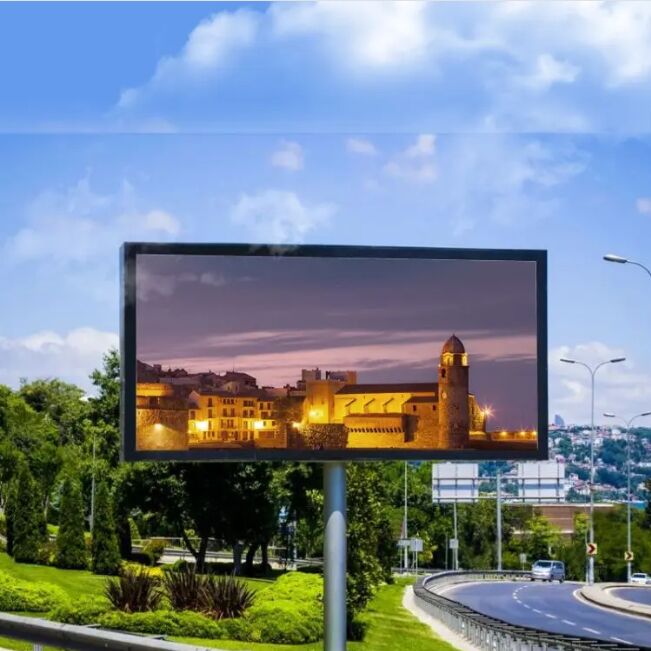

Install LED billboards on shopping centers, hotels, office buildings, commercial plazas and roadside advertising structures to display promotional campaigns, brand content and digital advertising.
Large outdoor LED displays can be used in municipal squares, transportation facilities and public areas for announcements, information releases and real-time content.
Outdoor LED video walls can provide visible information around stations, transportation hubs and roadside environments.
Large-format LED screens can become part of the visual identity of commercial buildings, urban landmarks and entertainment venues.
Schools, campuses and public institutions can use outdoor LED displays for announcements, event information and public communication.
| Model | P4 | P5 | P6 |
| LED Type | SMD1921 | SMD1921 | SMD2727 |
| Pixel Pitch (mm) | 4 | 5 | 6 |
| Pixel Density (dots/m) | 62,500 | 40,000 | 27,777 |
| Module Size (mm) | 320*160/256*128/160*160 | 160*160/320*160/320*320 | 192*192 |
| Cabinet Size (mm) | customized | customized | customized |
| Cabinet Weight (KG/m²) | 40 | 40 | 40 |
| Refresh Rate (HZ) | 3840 | 3840 | 3840 |
| Brightness (CD/m) | 5500 | 5500 | 5500 |
| Average Power (W/m) | 280 | 280 | 280 |
| Driving Method | l/8s | l/8s | l/8s |
| Viewing Angles (H/V) | 160°/140° | 160°/140° | 160°/140° |
| IP rate | IP65 | IP65 | IP65 |
| Working Humidity (RH) | 10%-95% | ||
| Working Temperature (°C) | -20°C ~ +60°C | ||
| Maintenance Type | front/rear | ||
| Led control system | Nova | ||
| Control method | Synchronous or Asynchronous | ||
The main difference is pixel pitch and pixel density. P4 provides higher pixel density, while P5 and P6 are more suitable when viewing distances increase or larger screen formats are required.
Yes. This series is positioned as an outdoor fixed LED display, with IP65 protection and an outdoor cabinet structure.
The listed brightness is 5500 cd/m² for P4, P5 and P6.
Yes. The provided specification lists the cabinet size as customized.
Yes. Installation drawings can be developed according to the customer's actual project requirements and installation conditions.
For an accurate quotation, please send:
Screen Width * Height + Pixel Pitch + Viewing Distance + Indoor/Outdoor + Installation Method + Destination + Required Delivery Time
