Place of Origin:
Shenzhen,Guangdong,China
Brand Name:
Guide Visual
Certification:
CE,Rohs,CE,FCC
Model Number:
GS
The GS Series P3.91 LED display is a professional rental LED screen solution designed for both indoor LED display and outdoor LED display screen applications. With a balanced pixel pitch, it delivers sharp visuals for concerts, events, exhibitions, and stage productions while remaining cost-efficient for rental companies. Whether used as an LED video wall, stage LED display, or event LED screen rental, P3.91 is one of the most versatile options in the rental market. Its modular structure allows fast setup for large LED display screens, making it ideal for high-frequency rental use.
To ensure maximum stability during live events, the GS Series features a power redundancy system and dual signal backup design. Each cabinet operates independently with an internal shared-load power design, meaning a single cabinet failure will not cause black screens or system reboots. With four RJ45 ports per cabinet, signal routing becomes flexible and secure, enabling quick manual backup when needed. This design significantly reduces operational risk for outdoor LED screen rental, concerts, and mission-critical events where reliability is essential.

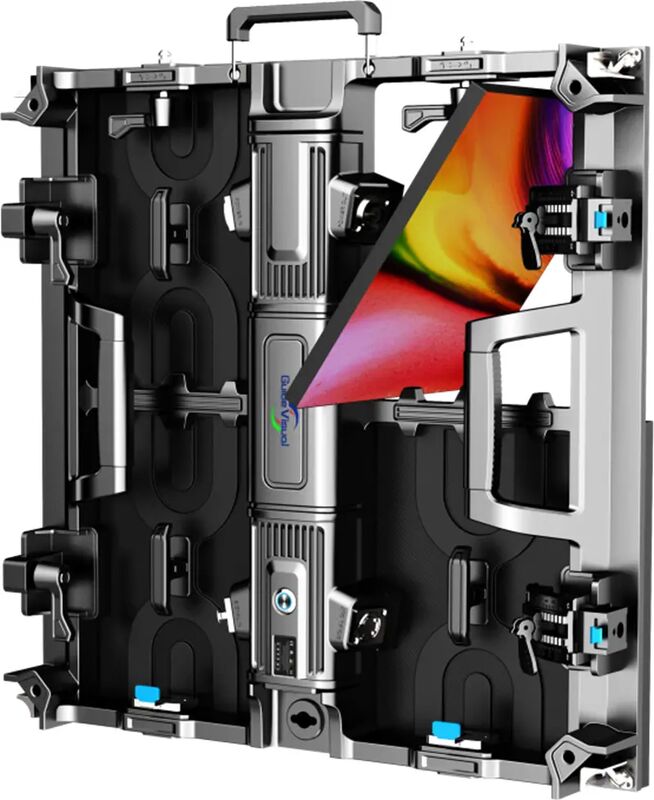

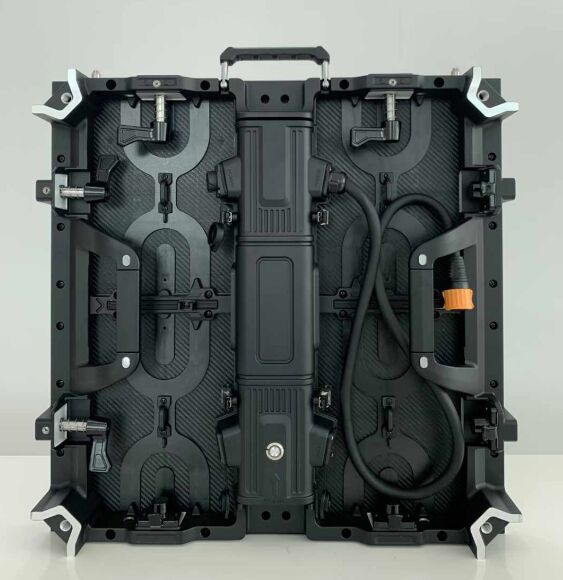

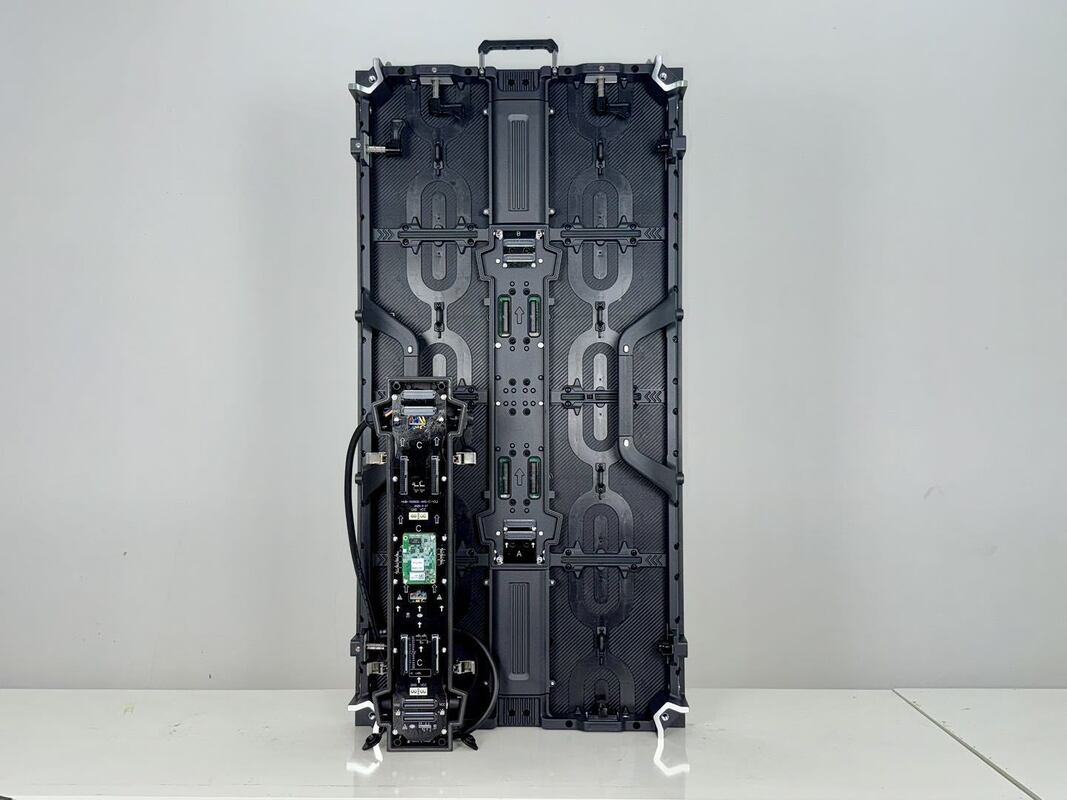

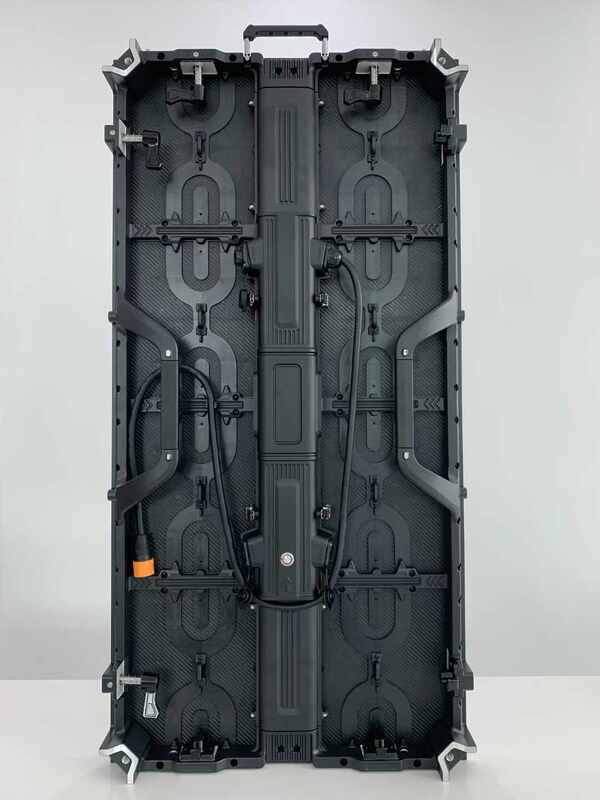

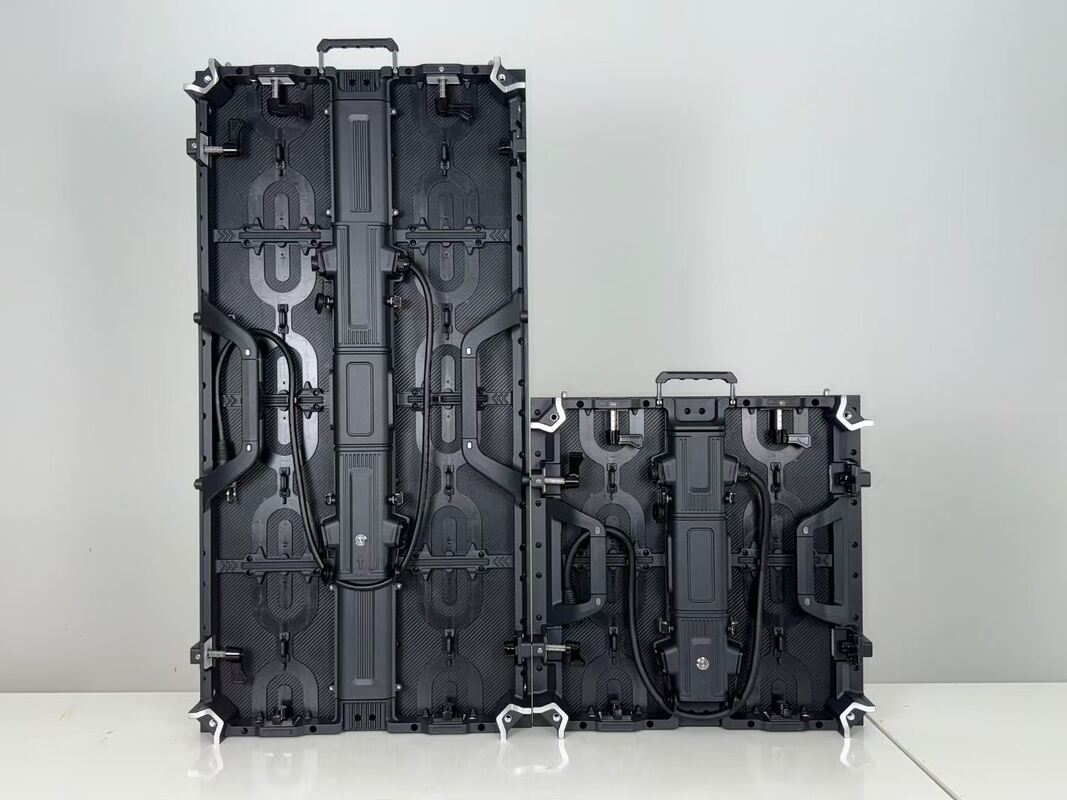

Built specifically for rental environments, the GS Series adopts a high-end cast-aluminum rental cabinet with an anti-collision module surface. Protective glue on the LED modules provides strong impact resistance, reducing LED damage during transport and installation. Combined with a hard-wired HUB design, maintenance time is minimized, lifespan is extended, and long-term depreciation is reduced. These features make the GS Series suitable for LED screen display rental, concert LED screens, LED wall stage backdrops, and other demanding rental applications.
With a 7680Hz refresh rate and Nova control system, the GS Series delivers flicker-free performance for broadcasting, filming, and high-end productions. It supports applications ranging from LED advertising billboard displays to outdoor LED video walls and indoor LED panels. Manufactured by Guide Visual, a professional LED display manufacturer with over 15 years of experience specializing exclusively in rental LED displays, the GS Series reflects our commitment to quality, reliability, and performance.
| Model No. | GS2.6 | GS2.9 | GS3.9 | GS4.81 |
|---|---|---|---|---|
| Pixel Pitch | 2.6mm | 2.9mm | 3.9mm | 3.9mm |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Packaging Technology | SMD | SMD | SMD | SMD |
| Pixel Density | 148225 pixel/㎡ | 119025 pixel/㎡ | 65536 pixel/㎡ | 43264 pixel/㎡ |
| Panel Dimension | 500mm*1000mm*75mm 500mm*500mm*75mm |
500mm*1000mm*75mm 500mm*500mm*75mm |
500mm*1000mm*75mm 500mm*500mm*75mm |
500mm*1000mm*5mm 500mm*500mm*75mm |
| Receive Card | Nova A5 Pro | Nova A5 Pro | Nova A5 Pro | Nova A5 Pro |
| Scan Rate | Indoor:32 Outdoor:16 |
Indoor:32 Outdoor:14 |
Indoor:16 Outdoor:16 |
Indoor:16 Outdoor:13 |
| Brightness | Indoor:600-1000 nits Outdoor:4500-5000 nits Support customized brightness |
Indoor:600-1000 nits Outdoor:4500-5000 nits Support customized brightness |
Indoor:600-1000 nits Outdoor:4500-5000 nits Support customized brightness |
Indoor:600-1000 nits Outdoor:4500-5000 nits Support customized brightness |
| Refresh Rate | 7680Hz | |||
| Gray Scale | 16Bit | |||
| Color Temperature | 6500-9500K | |||
| Panel Weight | 500mm*500mm*75mm(6.5kg/panel) 500mm*1000mm*75mm(11.5kg/panel) |
|||
| Panel Material | Die-Casting Aluminum | |||
| Max. Power Consumption | 650w/sqm | |||
| Ave. Power Consumption | 250w/sqm | |||
| Viewing Angle | H:160°/V:140° | |||
| Working Voltage | AC200-240V~50/60Hz or AC100-240V~50/60Hz | |||
| IP Rating | Front IP65, Rear IP65 | |||
| Maintenance | Rear | |||
| Curved | Curved cabinet/45° beveled cabinet(±10° curved lock):-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10° 90° lock or 90° connector plate can do vertical splicing. |
|||
| Operating Temp/Humidity | -40℃~+60℃; 10%~60%RH | |||
| Storage Temp/Humidity | -40℃~+60℃; 10%~60%RH | |||
| Control System | Novastar | |||
| Product Certification | CE/EMC/RoHS/LVD | |||
Guide Visual is a China-based manufacturer of LED Video Displays for virtually any event or application. We offer high resolution, high brightness, indoor and outdoor LED displays including event and stage LED displays, foldable LED displays, and transparent LED displays.
Founded in 2011, we have a full-time staff of dedicated production professionals to ensure your success. "Quality is our culture" - 90% of our LED display production equipment is imported from Japan and Germany. "With us your money is safe" - full refund in case of bad quality. We have a professional team that can deliver excellent quality in short time. Our goal is to maintain complete customer satisfaction, identify your business needs, and provide fast delivery.
We offer reliable service at an affordable price, extraordinary products and personalized attention to all our clients. Our factory can cooperate with customers to design LED display programs and provide installation drawings. CAD models can be offered for checking. Dynamic effect drawings can be sent before order confirmation. For special projects, our engineers can visit your location for assessment.
