Place of Origin:
China
Brand Name:
Guide Visual
Certification:
CCC，ROSH，CE，FCC
Model Number:
GS
Built for concerts, festivals and touring productions where fast installation, weather protection and reliable performance are part of the job.
Outdoor Rental Is Hard on LED Screens
Rental screens face more than just image quality challenges. They are transported, installed, dismantled, and exposed to weather – every single show.
For production teams, the real question is: can your screen handle the road?
|
Challenge |
The Problem |
|
🚚 Repeated transport |
Vibration loosens connections, causes internal damage |
|
🔧 Tight schedules |
Slow setup means missed cues, overtime costs |
|
🌧 Rain & weather |
Water ingress = dead screens, cancelled shows |
|
💥 Impact & handling |
Dropped cabinets = damaged lamp beads, dead pixels |
|
⚡ Power/ signal failure |
One break = entire wall goes black on stage |
|
🛠 On site maintenance |
Every downtime minute costs money and reputation |

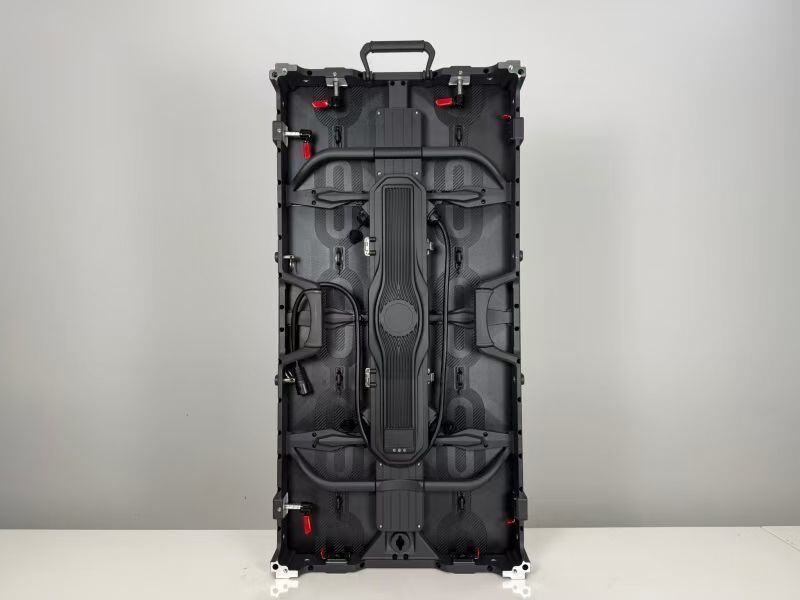

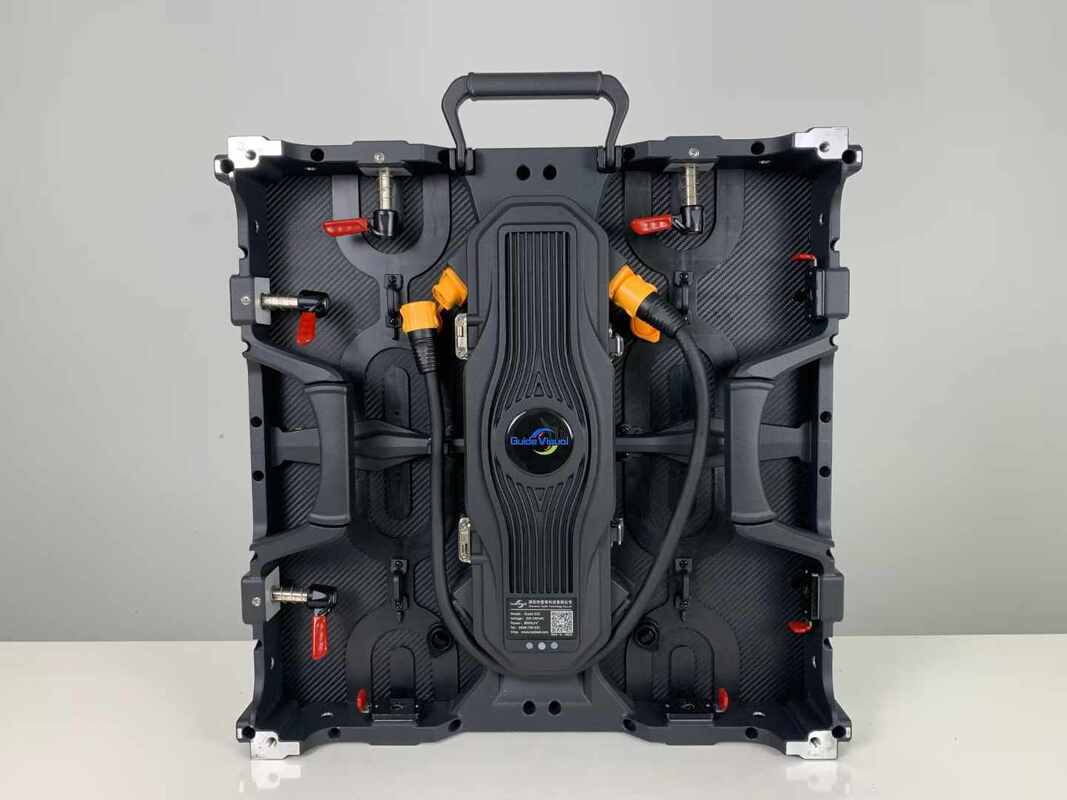

l Lightweight Cabinet. Faster Handling.
500×500mm: 7.5kg | 500×1000mm: 12.5kg
High-precision die-cast aluminum – strong, lightweight, and fast heat dissipation.
Direct improvements:
Assembly Speed: Quick, single-person handling
Crew Efficiency: Less physical strain, faster setups
Durability: ±0.1mm precision, no deformation over years of touring
Why it matters: Lighter cabinets = faster load in, lower labor costs, and a perfectly flat screen – every time.
l Built to Handle the Bumps of Rental Life – Anti Collision Module Protection
Rental screens get handled, stacked, and transported – a lot.
The GS Series uses anti collision PCB structures to protect modules during repeated handling.
Fewer damaged components mean:
Less maintenance
Fewer replacement modules
Reduced downtime between projects

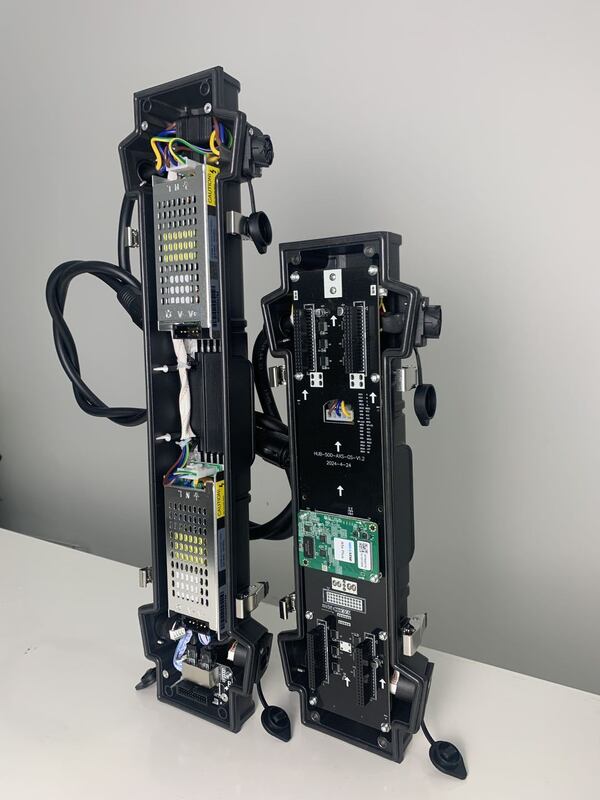

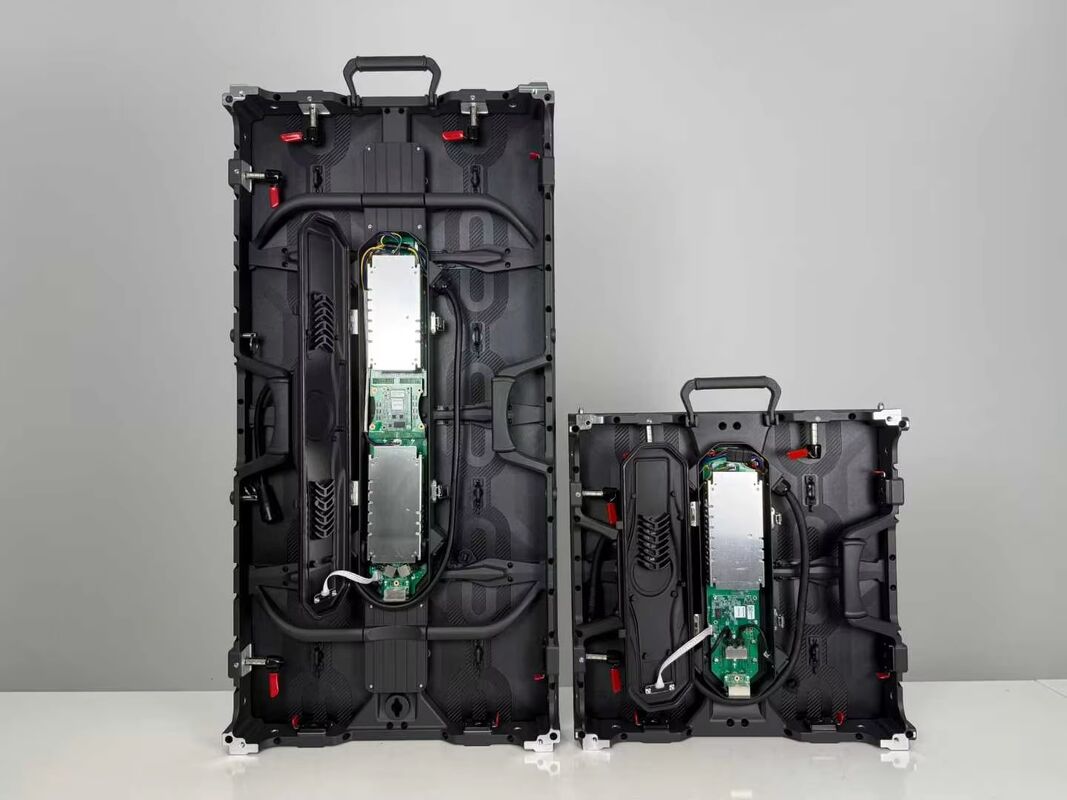

l Hard-Wired Connection-More Stable
Inside every rental cabinet, connections matter. Traditional ribbon cables loosen over time – vibration and transport take their toll.
The GS Series uses a hard-wired architecture – fewer flexible connections, less risk.
What this means:
Cleaner internal structure. No loose ribbon cables. Easier servicing. Built for the road – not just the showroom
Product Specification
|
Operating environment |
Outdoor |
|||
|
Model |
P2.6 |
P2.9 |
P3.91 |
P4.81 |
|
Pixel pitch(mm) |
2.604 |
2.976 |
3.91 |
4.81 |
|
Pixel density (dots/m²) |
147,456 |
112,896 |
65,536 |
43,264 |
|
Scan mode |
1/16 1/24 |
1/21 |
1/16 |
1/13 |
|
LED type |
SMD1515 |
SMD1515 |
SMD1921 |
SMD1921 |
|
Module size (mm) |
250 x 250 |
|||
|
Module resolution(dots) |
96x96 |
84x84 |
64x64 |
52x52 |
|
Cabinet size(mm) |
500x500x75/500x1000x75 |
|||
|
Cabinet weight(kg/pc) |
7.5/12.5 |
|||
|
Cabinet material |
Die-casting Aluminum |
|||
|
Service |
Rear Maintenance/Front Maintenance |
|||
|
Brightness(cd/m²) |
3500-5000 |
|||
|
Refresh rate (Hz) |
3840-7680 |
|||
|
Gray scale (bit) |
14-16 |
|||
|
Avg. Power(W/m²) |
400 |
|||
|
Max. Power(W/m²) |
800 |
|||
|
Protection Rating |
Front Maintenance Cabinet: IP54 |
|||
|
Viewing angle(°) |
140°/140° |
|||
|
Contrast |
3000:1 |
|||
|
Life time(hours) |
100,000 hours |
|||
|
Operating temperature(℃) |
-10℃~+45℃ |
|||
|
Operating humidity(RH) |
10~80%RH |
|||
Common applications:

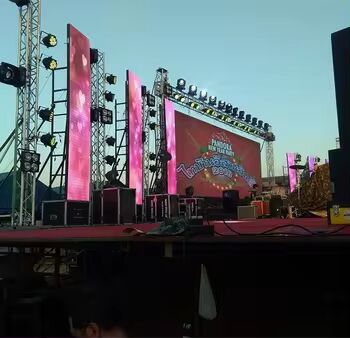

🎵 Concert Stages – clear visuals for audiences at medium distances
🎪 Music Festivals – large temporary walls with outdoor protection
🏟 Sports Events – live content and event visuals for large crowds
🚚 Rental Companies – versatile outdoor rental inventory
We manage the production lifecycle of your rental display fleet to ensure every panel arrives road-ready.
l How many cabinets do I need for a 6×4m screen?
For 500×500mm cabinets: 12 wide × 8 high = 96 cabinets.

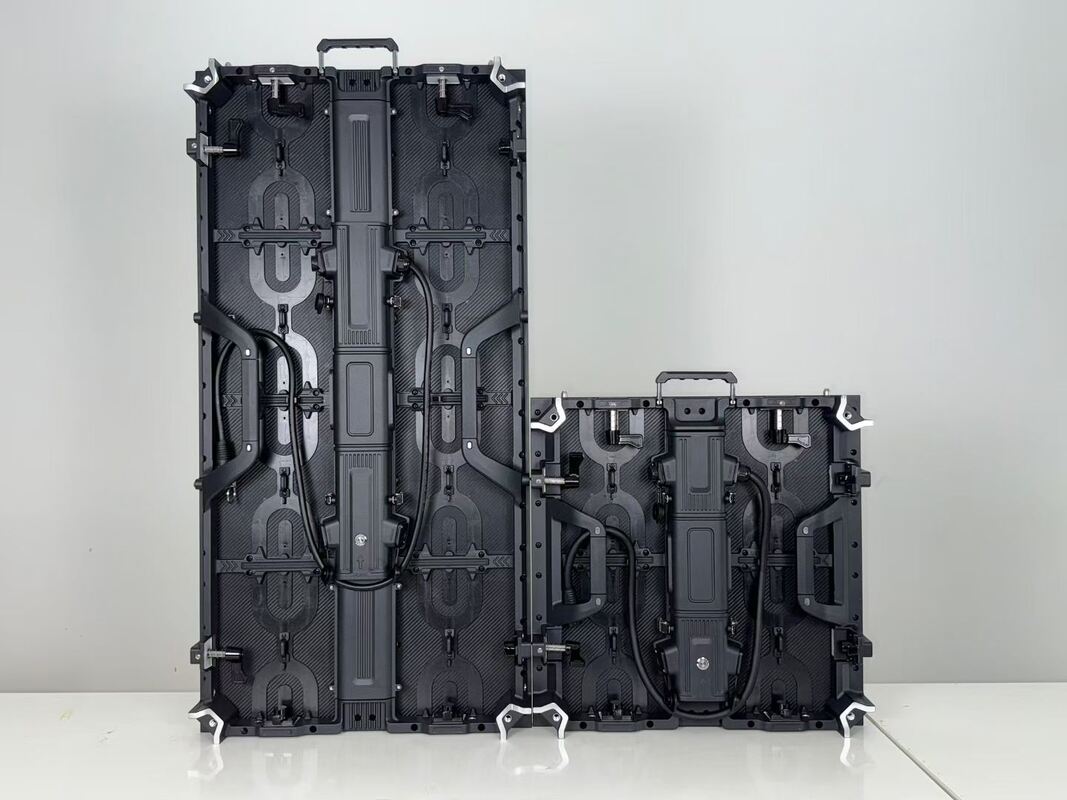

l Can I mix 500×500mm and 500×1000mm cabinets?
Yes – the GS Series supports both sizes for flexible configurations.
l Is P3.91 suitable for camera shooting?
Yes – 7680Hz refresh rate eliminates flicker and scan lines on broadcast cameras.
l Can it be installed as a curved wall?
Yes – the cabinet locking system supports curved configurations.
l What should I prepare before requesting a quote?
Helpful details: screen width & height, indoor/outdoor, viewing distance, installation method, and project location.
