Place of Origin:
China
Brand Name:
Guide Visual
Certification:
CCC CE FCC ROSH
Model Number:
G20

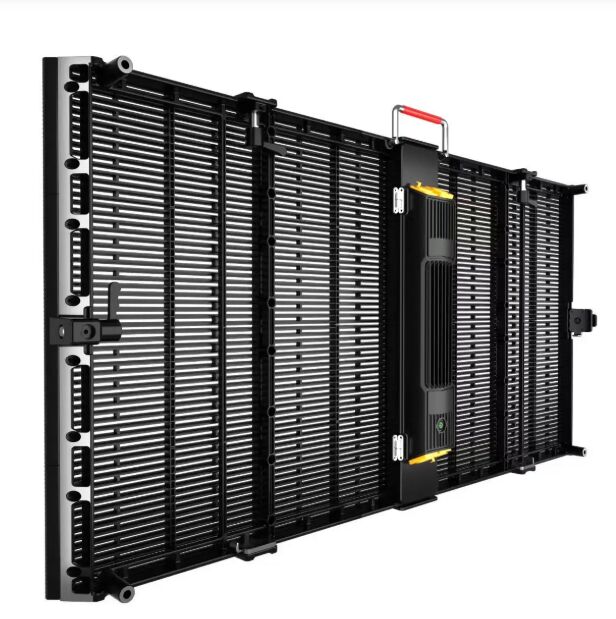

The G20 transparent rental screen features a die-cast aluminum cabinet, designed for durability and performance in various environments. Its robust construction ensures excellent waterproof and dustproof capabilities, making it ideal for both indoor and outdoor events. UV-resistant protection maintains long-lasting clarity and vibrancy, perfect for concerts, exhibitions, and promotional events.

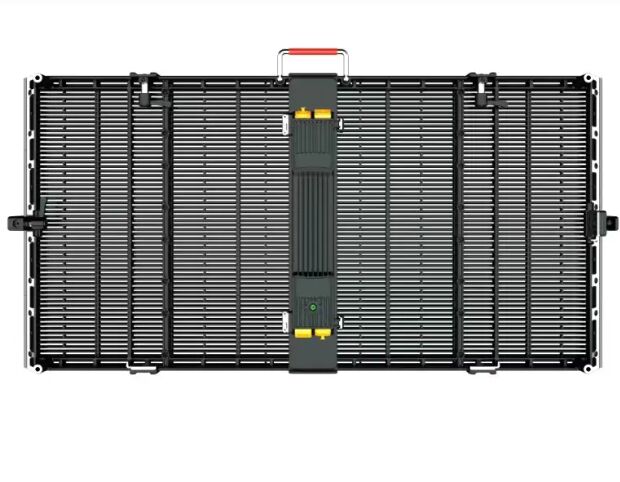

The hard-connect design ensures easy front maintenance, allowing quick access to components for simplified repairs and reduced downtime. Enjoy hassle-free upkeep while maintaining optimal performance in any installation.
Transparent LED installations are not always limited to one standard cabinet orientation.
The G20 cabinet supports a 90° rotatable configuration, allowing the cabinet pixel arrangement and installation direction to be adapted to different project requirements.
This is particularly useful when designing around architectural structures or creative stage layouts where the available space does not follow a conventional rectangular screen format.

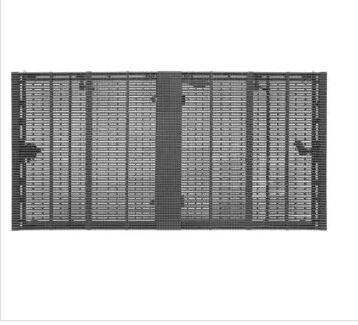

The cabinet size is 1000 × 500 mm, with the 90° rotation capability available when installing.
| Items | Parameters |
|---|---|
| Pixel Pitch (mm) | H3.9mm * V7.8mm |
| Pixel Density(dot/M2) | 32768 |
| Transmittance | Common 75% |
| Cabinet Pixel Arrangement | 256*64 (90°rotatable) |
| Display Resolution | 256*128(Interlaced) |
| Max Power Consumption (W/M2) | 800(in white color) |
| Average Power Consumption (W/M2) | 260(Dynamic) |
| Brightness (nits) | 4500 |
| Cabinet Size(mm) | 1000*500(90°rotatable when installing) |
| Cabinet Weight (kg) | 7.5 kg |
| Refresh Rate(Hz) | 3840 |
| LED Package | SMD1921 |
| LED Control System | Nova |
| Display Ports | DVI/HDMI/DP/CAT cable |
| Driver IC | ICN2153 PWM |
| IP Rate | outdoor IP65 |
| Working Voltage | DC4.5V |
| Power Supply | AC100~240V 50/60Hz /220V±10V |
| Working Temperatures / Humidity | -20〜40℃, 10%-90% no condensation |
| LED Life Span | 100,000 hours |
For a transparent LED project, product configuration is only one part of the purchasing decision.
Professional buyers also need to evaluate the supplier's manufacturing capability, product consistency, quality control and international project support.
Guide Visual provides LED display solutions covering rental, transparent and creative LED display applications.
For distributors, AV integrators, event companies and architectural media partners, the G20 can be configured according to the actual installation environment rather than forcing the project into a conventional LED cabinet format.
The G20 supports 56%–75% transmittance depending on the configuration, with the listed common configuration at 75%.
Yes. The listed G20 configuration has an IP65 outdoor protection rating and 4500-nit brightness, making it suitable for outdoor transparent LED applications.
Yes. The cabinet pixel arrangement supports 90° rotation, allowing different installation orientations.
Yes. The G20 uses a hard-connect design that supports front maintenance for easier access to components.

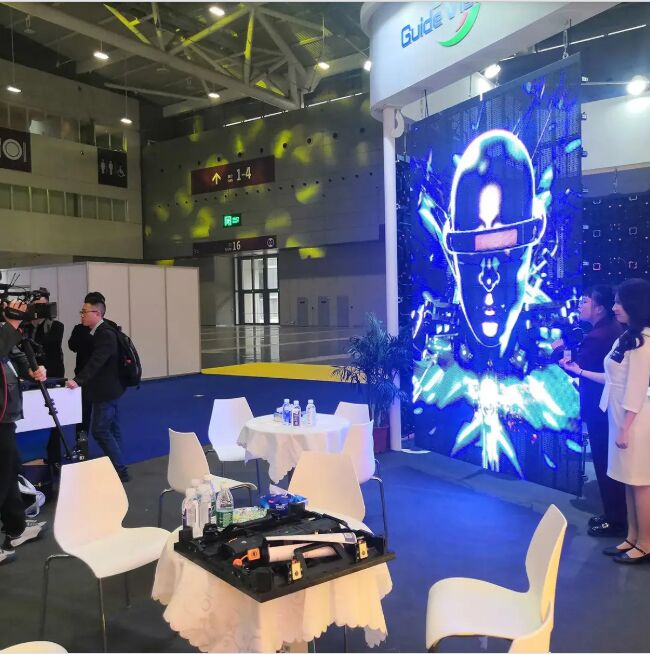

Typical applications include storefronts, glass showcases, shopping malls, architectural media, concerts, exhibitions and creative stage designs.
Every transparent LED project has different requirements.
Send us:
Installation Location
Screen Size
Viewing Distance
Indoor / Outdoor Environment
Required Transmittance
Application
Quantity
Delivery Destination
Our team can help evaluate the appropriate G20 configuration, installation orientation, control system and shipping solution for your project.
